The ASB-2

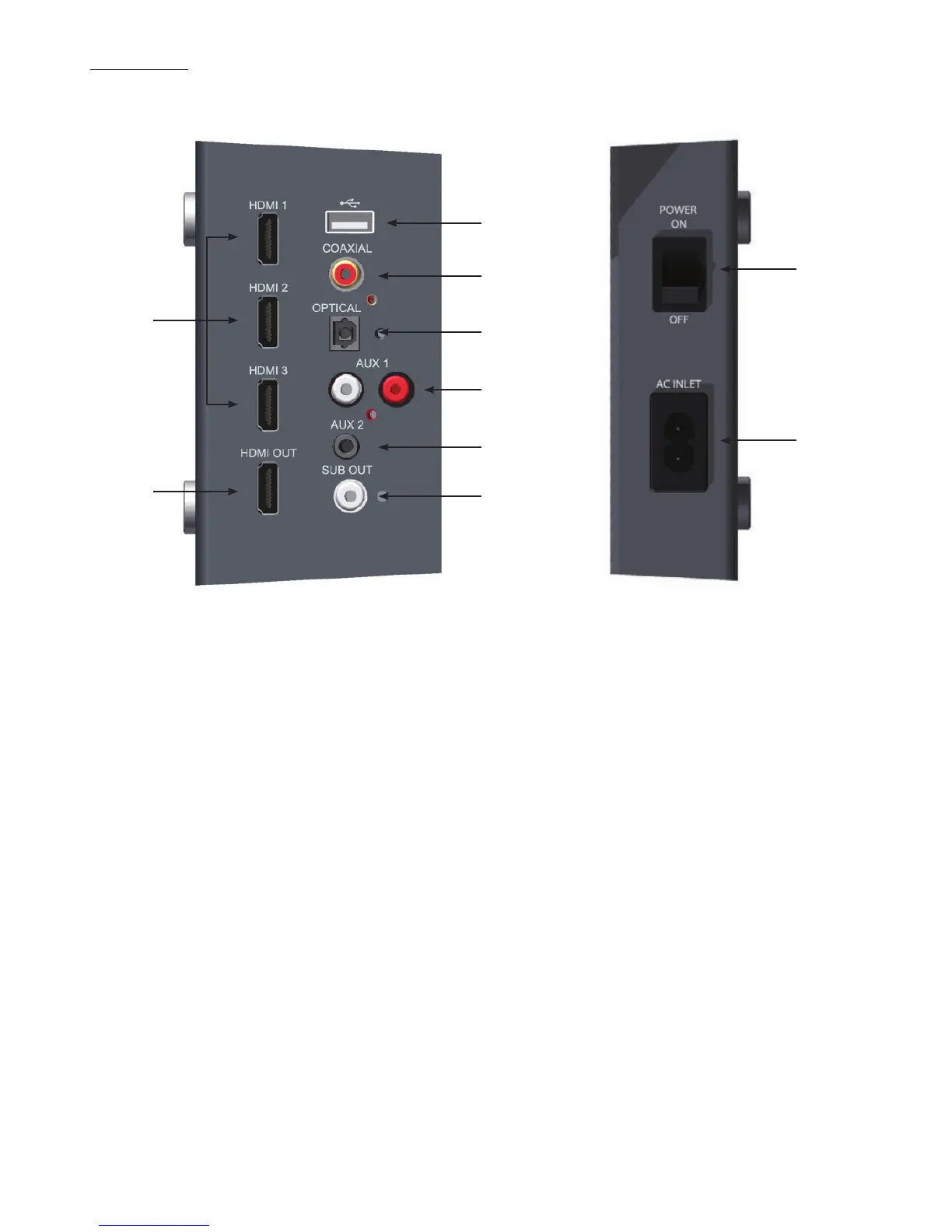

ASB-2 Connections
1. HDMI Inputs
Used to connect up to 3 High Definition sources to
the ASB-2 (refer to page 6).
2. HDMI output
Used to connect the ASB-2 to the TV, also used
as the Audio Return Channel (refer to page 5).
3. USB Input
Used to connect a USB device to the ASB-2 for
updating and connecting to the wireless network.
4. Digital Coaxial Input
Used to connect digital coaxial audio source to
the ASB-2 (Refer to page 7)
5. Digital Optical Input
Used to connect digital optical audio source to the
ASB-2 (Refer to page 7)
6. Auxiallary 1
Used to connect an analogue stereo audio source
to the ASB-2 using RCA phono connections.
(Refer to page 8).
7. Auxiliary 2
Used to connect an analogue stereo audio source
to the ASB-2 using a 3.5mm stereo mini jack
connector (refer to page 8).
8. Sub Out
Used to connect the ASB-2 to an additional sub
woofer (refer to page 8).
9. Power Switch
Mains Power switch. Used to turn the ASB-2 on
and off (refer to page 9)
10. Mains Input
Used to connect the ASB-2 to the mains (refer to
page 9).
