Connecting Speaker Cables
Bare Wire Connection
Unscrew the binding posts and pass the bare wire through the hole in the binding post. Tighten the binding post to
clamp the wire in place.
Banana Plugs
Remove the red and black plastic plugs from the terminals and insert the banana plugs into the standard 4mm holes
that are revealed. Pliers may be required to gain purchase on the plugs.
Spade Connectors
Unscrew the binding post and place the spade connector around the exposed thread. Tighten the binding post to clamp
the spade connector in place.
Wiring

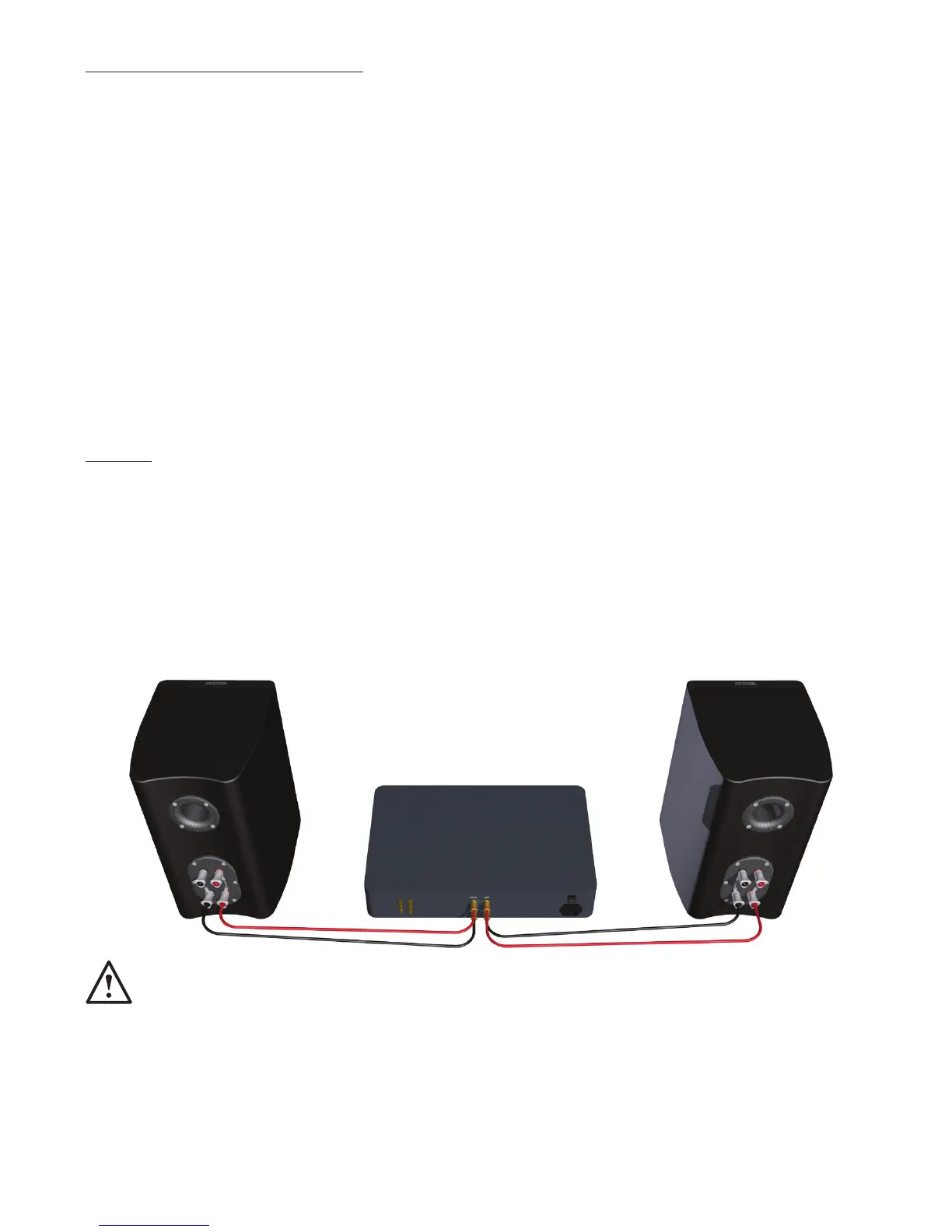

Single Wiring
Single wiring is achieved by using a single set of cables to the terminals on the back of the speaker. Internally the
speaker crossover guides the frequencies to the appropriate driver/tweeter - low frequencies to the bass drivers, mid
frequencies to the mid/bass drivers and high frequencies to the tweeter.
It is perfectly acceptable to connect to the HF or LF terminals, or to split LF/HF (experimentation is advisable to
achieve the preferred results).
NOTE: When using this method you must KEEP the terminal links in place.
monitoraudio.com 9
