Eco Connect+ Convection | 4/5/7/10-Tray | Steam Installation and Operation Manual
46
MONO FG1BX-UK-MAN-0300 | Rev. C23 (July 2023)

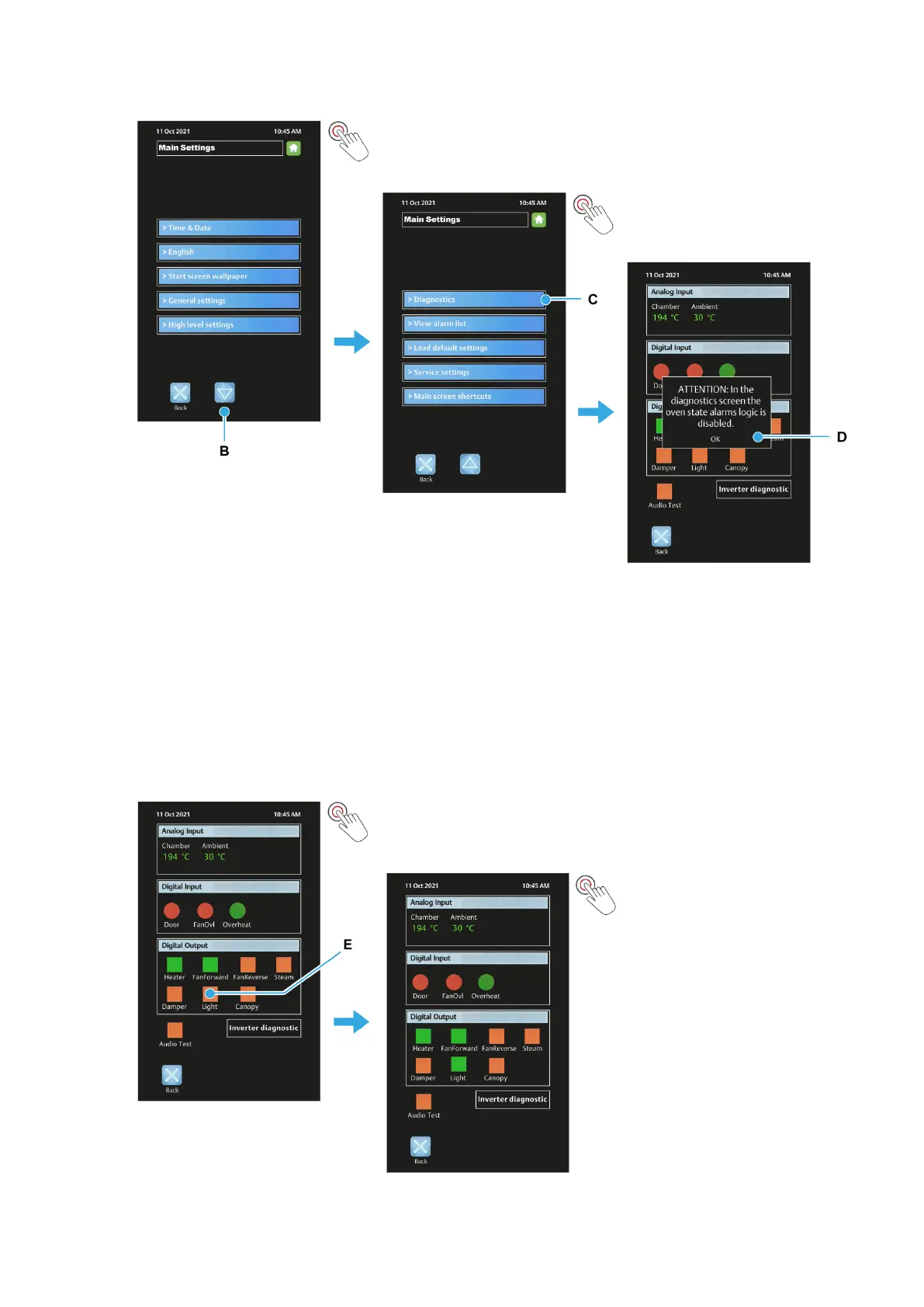

Using the diagnostics screen
1. Touch the item to be tested (e.g., Light)
– The red square changes to a green square (E).
2. Touch the same item again to end the test.
– The green square changes back to a red square.
3. Touch the Back button to exit diagnostics mode.
