PART 1 10 Tray Oven Spares Section
Oven Code FG150

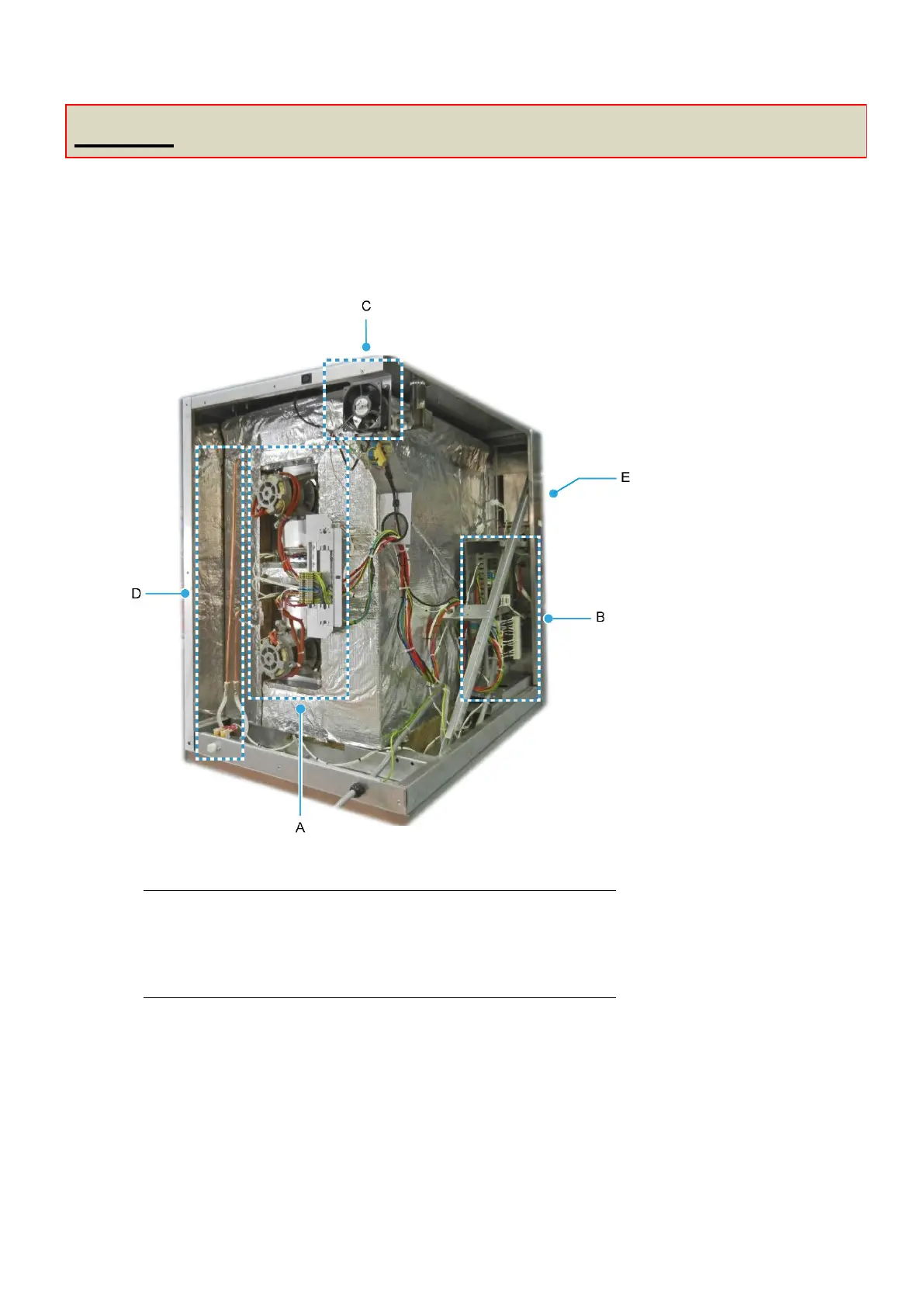

Figure 11: Rear view with outer sheeting removed (FG150)
A. Motors and Elements ................... (Part 1 / Section 1 on Page 63)
B. Main Panel ................................... (Part 1 / Section 2 on Page 65)
C. Cooling Fan and Damper ............. (Part 1 / Section 3 on Page 66)
D. Water System ............................... (Part 1 / Section 4 on Page 67)
E. Baking Chamber and Door Parts . (Part 1 / Section 5 on Page 69)
