Installation and Operation Manual Eco Connect+ Convection | 4/5/7/10-Tray | Steam
FG1BX-UK-MAN-0300 | Rev. C23 (July 2023) MONO 65
Part 1 | Section 2 | Main Panel (FG150)

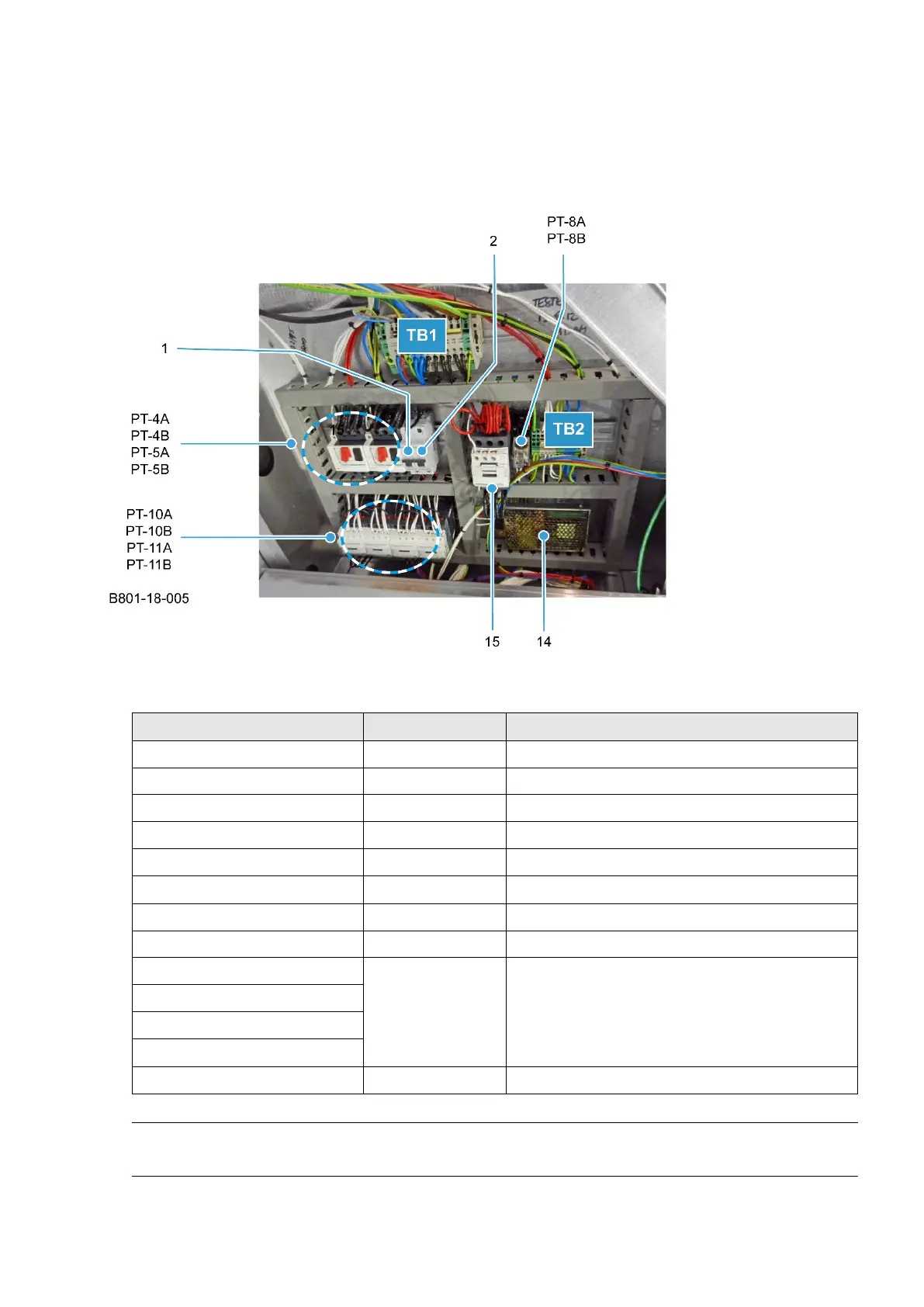

Figure 14: Main Panel (FG150)
Table 7: Item numbers in Figure 14
1 B872-22-063 Interior lighting MCB
2 B872-22-062 Control cuircuit MCB
14 B801-93-005 24 Vdc power supply unit
15 B801-08-020 Heating element contactor
PT-4A, PT-5A B801-03-020 Fan motor overload
PT-4B, PT-5B B801-14-012 Fan motor overload auxiliary contactor
PT-8A B723-37-004 Interior light relay
PT-9B B723-36-001 Interior light relay base
PT-10A (Top Forward) B801-08-031 Fan motor contactors
PT-10B (Top Reverse)
PT-11A (Bottom Forward)
PT-11B (Bottom Reverse)
N/A B801-18-005 Interlock unit X2
NOTE
Part numbers are are referenced from electrical drawing M1500E25-75100 in the Electrical Manual.
