Installation and Operation Manual Eco Connect+ Convection | 4/5/7/10-Tray | Steam
FG1BX-UK-MAN-0300 | Rev. C23 (July 2023) MONO 47

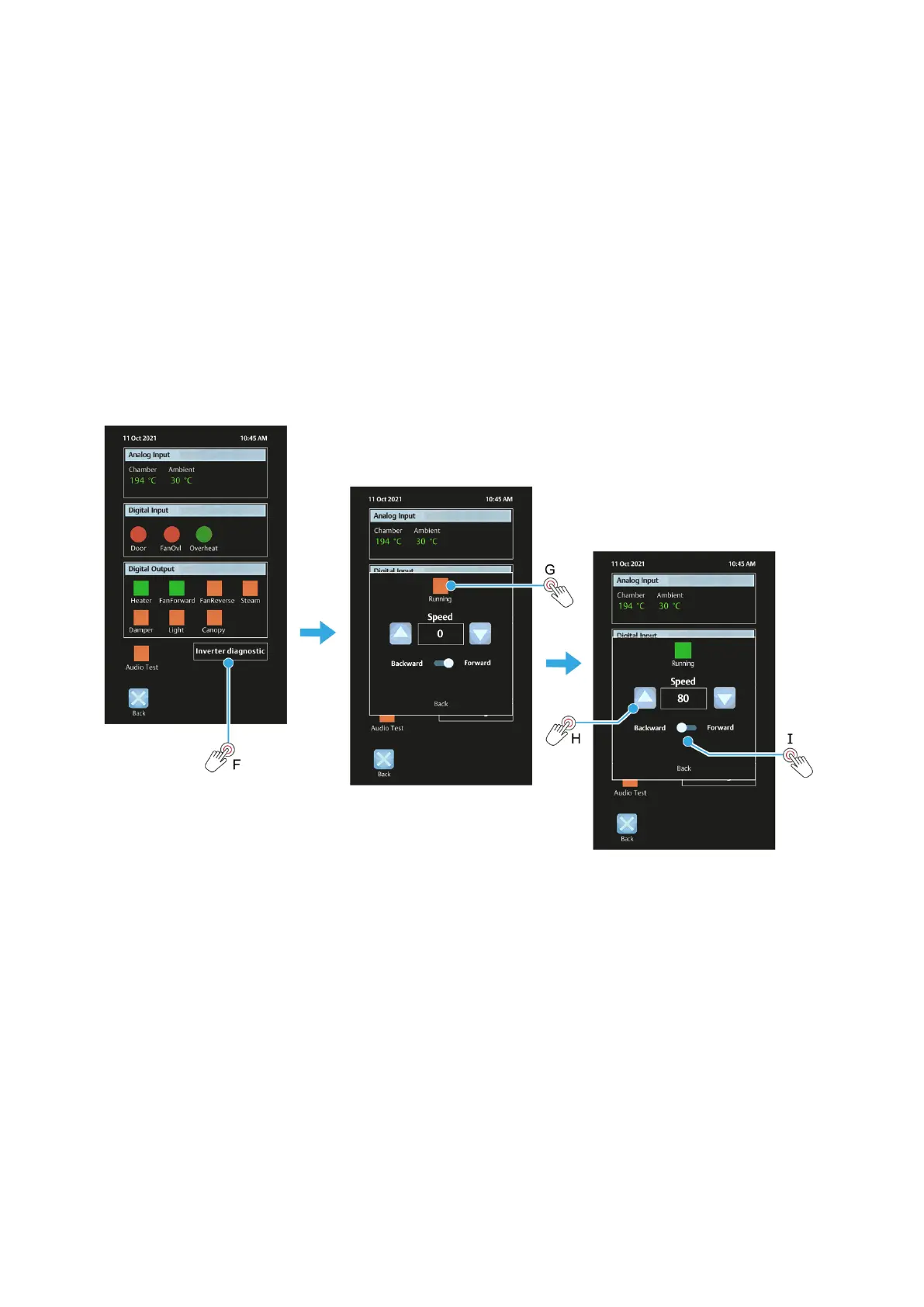

Using the Inverter Diagnostic screen
1. Touch the Inverter Diagnostic box (F).
2. Touch the red square (labelled as “running”) to start the testing.
– The red square changes to a green square (G).
3. Use the arrows (H) to increase and decrease the fan speed.
4. Slide the direction option (I) to the opposite position.
5. Use the arrows to increase and decrease the fan speed.
6. Touch the green square (labelled as “running”) to stop the testing.
– The green square changes back to a red square.
7. Touch Back to exit the screen.
