Instructions for model FG158
1. Lift the tray runner ladders off the locating pins on the base of the oven chamber and tilt the ladders
towards the centre of the oven to remove them (Figure 8).
2. Clean the oven chamber and the tray runner ladders with a proprietary cleaning agent.
3. Use fresh water to remove any remaining cleaning agent.
4. Replace the tray runner ladders by:
(a) angling the base of them to the centre of the oven (Figure 8 | A)
(b) lifting the top of the ladder onto the ceiling locating pins. (Figure 8 | A)
(c) Straightening the ladder (Figure 8 | B)
(d) lowering it onto the locating pins at the base of the oven chamber (Figure 8 | C).
3. The tray runner ladders are reversible; they have 4 tray runners on one side and 5 on the other. Make sure,
as you replace them in pairs, that they have the same number of tray runners on the left and right-hand
sides of the oven (Figure 10).

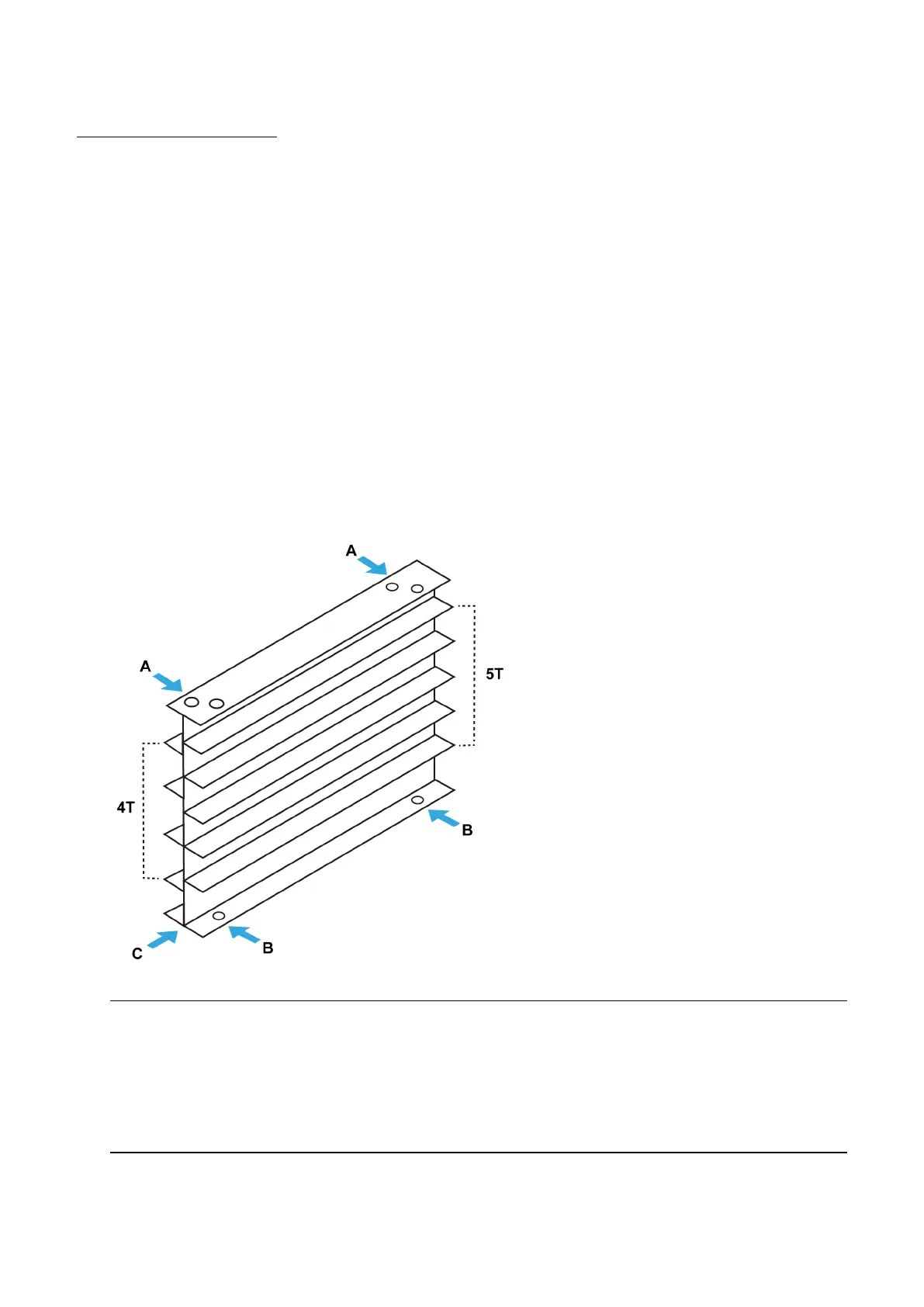

Figure 8: Removing and installing a runner rack
A. Top pin slots
B. Bottom pin slots
C. Instructions in Figure 9 are viewed from this direction and show the left-hand rack.
4T = 4-trays side
5T = 5-trays side
