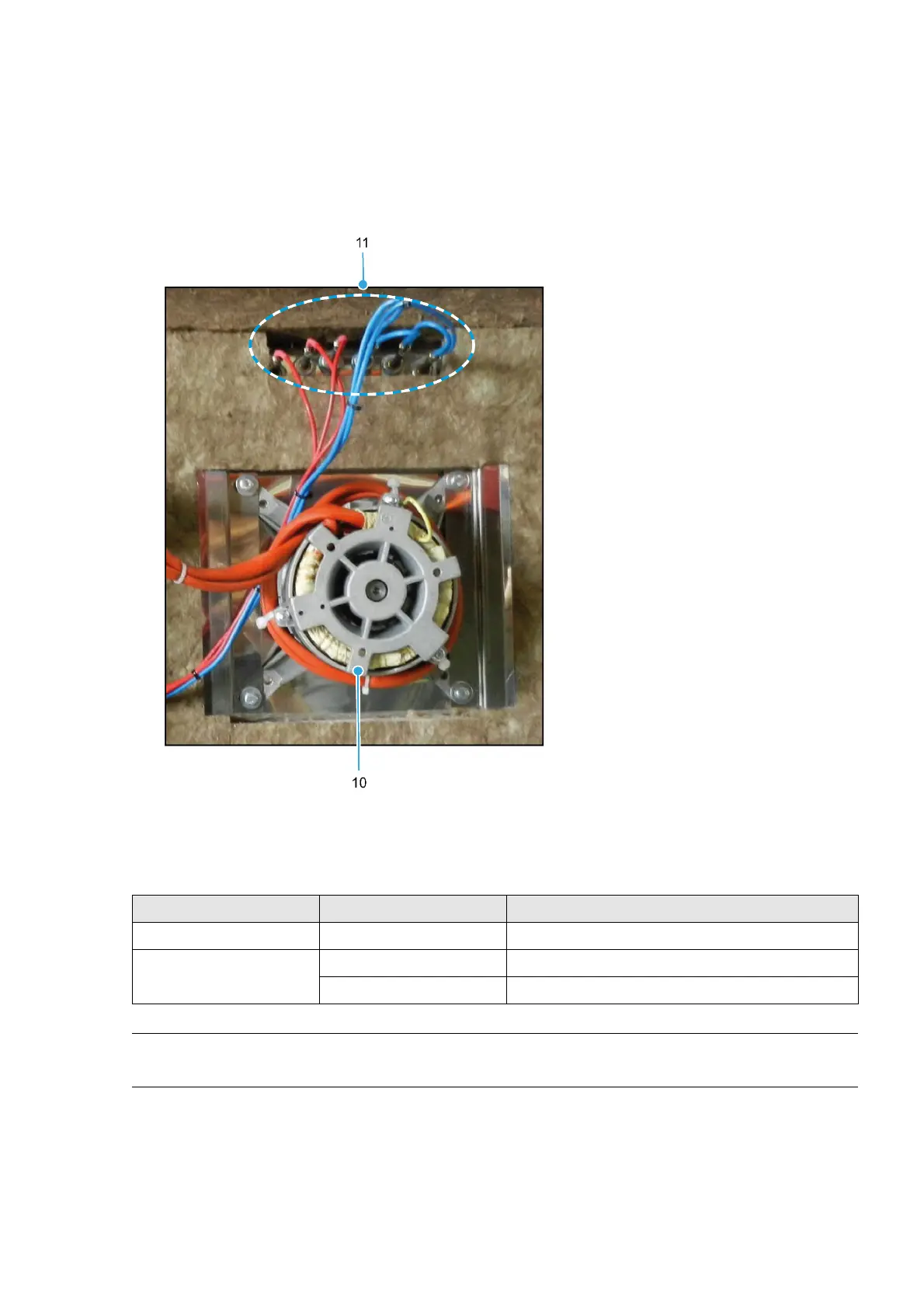

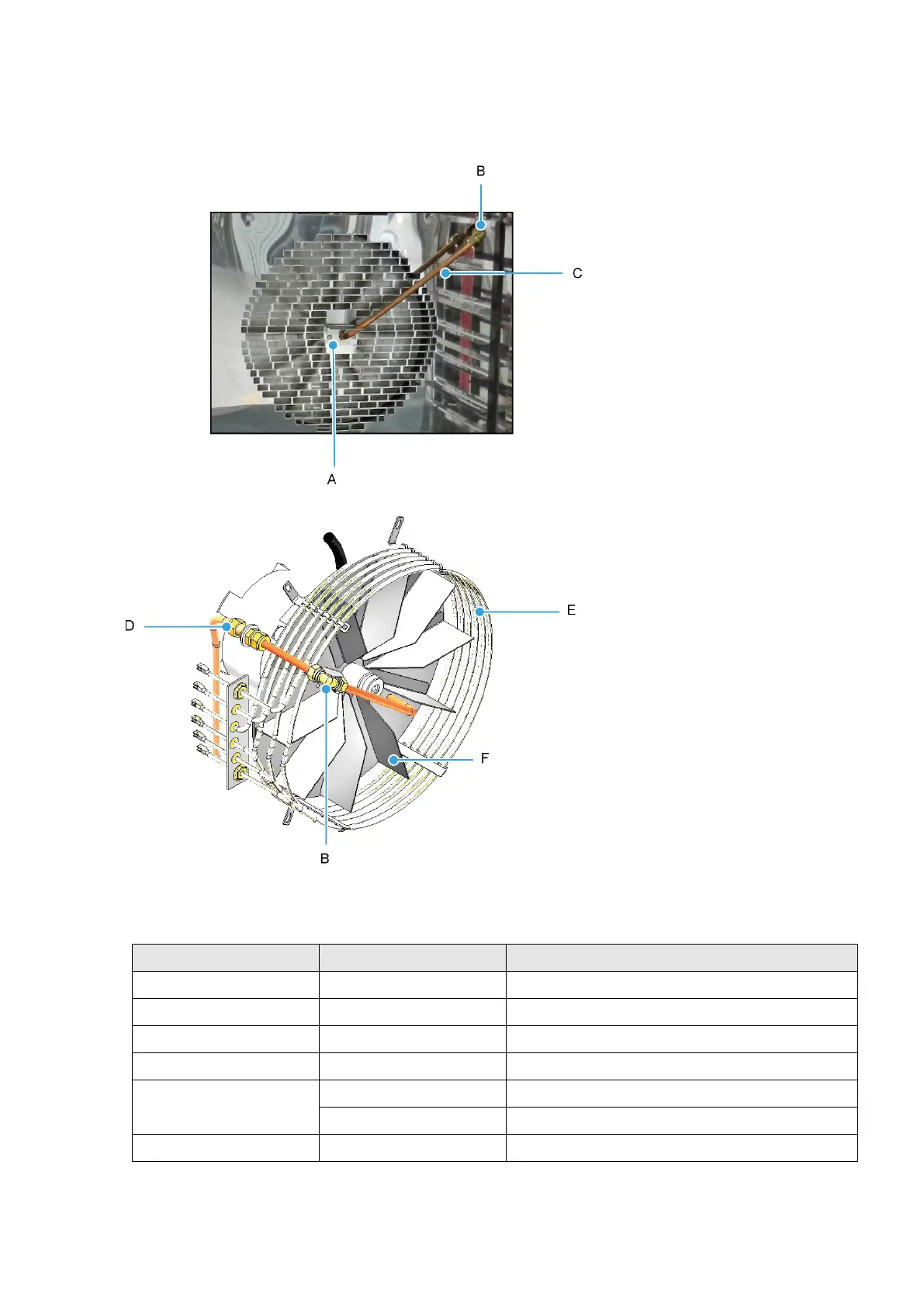

Figure 24: Water/Steam System (FG159) – 2
Table 16: Item numbers in Figure 24
Item Number Part Number Part Description
A 150-01-07700 Pipe guide bracket
B A900-34-387 Equal elbow
C
(1)
Pipe
D A900-34-321 Bulkhead coupling
E B847-04-068 Heating element, 240 Vac
B847-04-073 Heating element, 220 Vac
F 150-00-11300 Fan
(1)
Individual part numbers not available for pipes. All pipes made from A900-34-253 Copper Pipe 10 mm O/D x 20 SWG wall.
To Next Page
