Installation and Operation Manual Eco Connect+ Convection | 4/5/7/10-Tray | Steam
FG1BX-UK-MAN-0300 | Rev. C23 (July 2023) MONO 89
Part 4 | Section 2 | Main Panel (FG153)

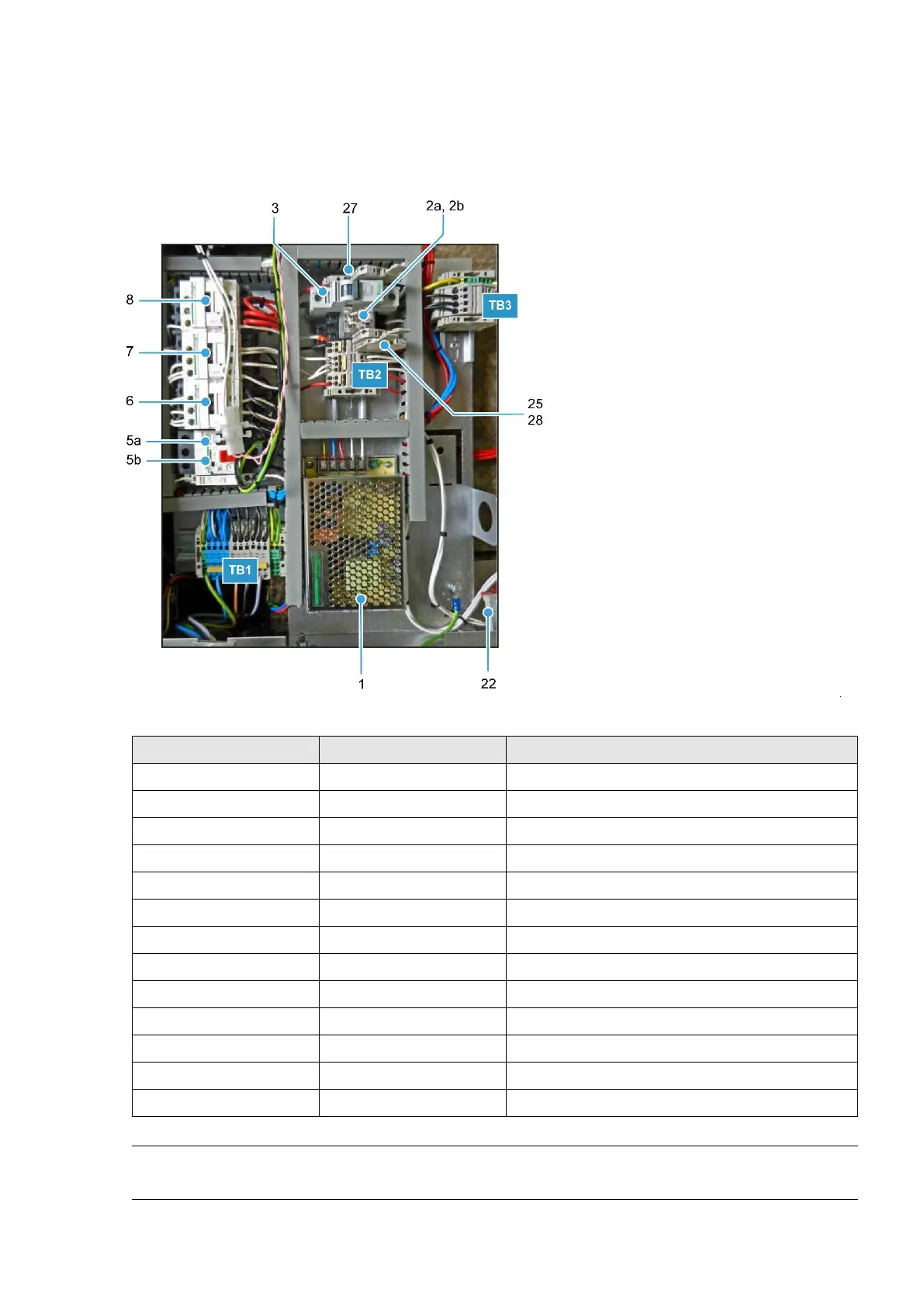

Figure 35: Main Panel (FG153)
Table 25: Item numbers in Figure 35
1 B801-93-005 Power supply
2a B723-37-004 Light relay
2b B723-36-001 Light relay base
3 B872-22-062 Control circuit MCB
5a B801-03-020 Fan motor overload unit
5b B801-14-012 Fan motor overload auxiliary contact
6 B801-08-031 Fan motor forward contact
7 B801-08-031 Fan motor reverse contact
8 B801-08-021 Element contactor
22 B888-30-014 Overheat thermostat
25 B842-85-042 Light fuse
27 B842-85-025 Fan fuse
28 B842-85-039 Auxiliary socket fuse
NOTE
Part numbers are referenced from electrical drawing M158E25-75200 in the Electrical Manual.
