ZUG75 Trim Kit
Unified 3/4" Custom Grille Panel
Step 7
Install
Grille Base
Cover

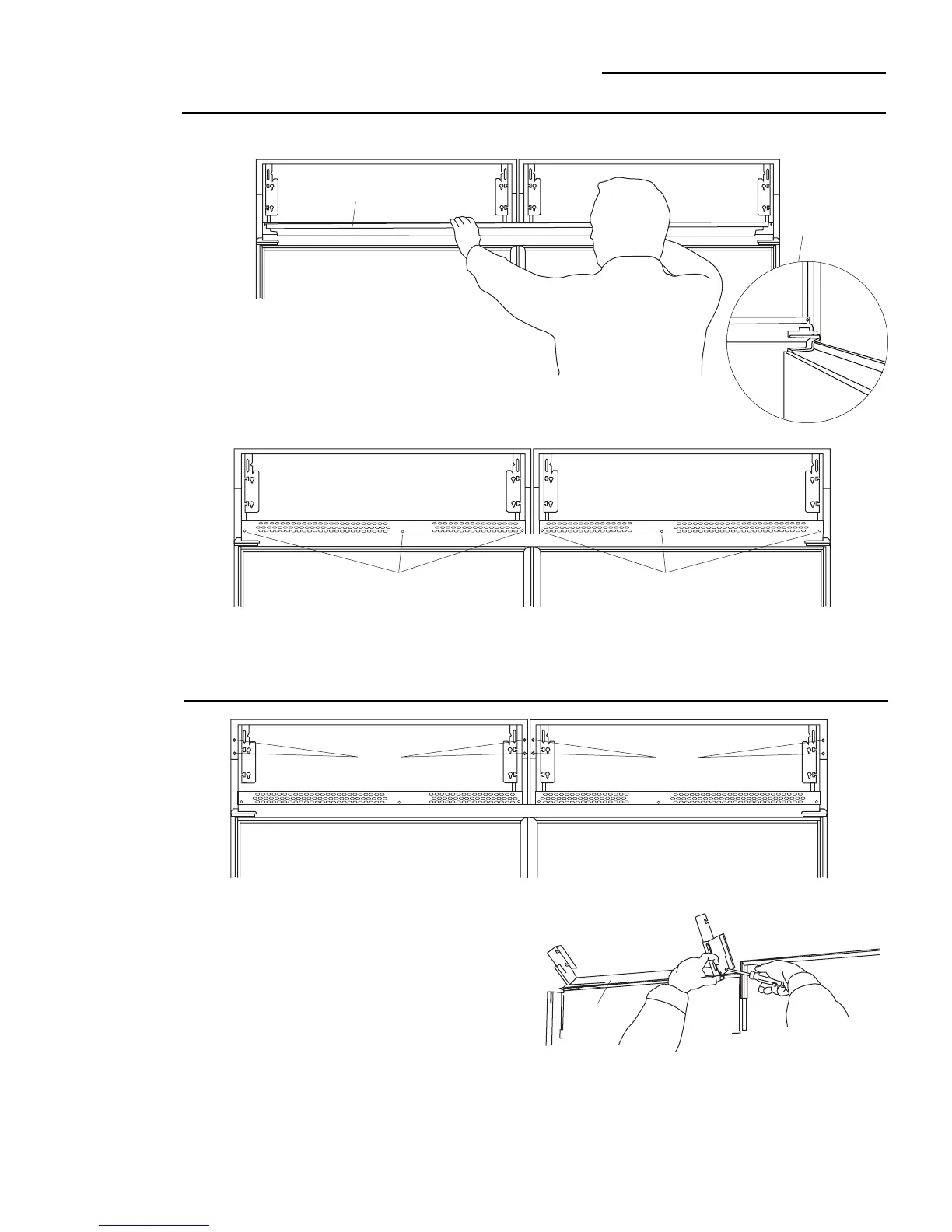

• Open doors fully.
• Install the double width grille base cover by slipping
the notched ends over the hinges.
• Place wire fence over the grill base cover (textured
side out). Drive original wire fence screws through
the fence, the grille base cover and into the frame.
Step 8
Remove
Grille Frame
• Back out 2 screws on each side of the top case trim.
• The top piece is secured to the unit with a rubber dust
gasket. Roll the trim upwards to access and remove
end screws as shown. Remove and discard inside
pieces.
• Slide assembly out of the rubber gasket.
Unified Base Cover
Place
Trim Over
Hinges
Install
3 Screws
Install
3 Screws
Remove
Screws
Remove
Screws
