ZUG75 Trim Kit
Unified 3/4" Custom Grille Panel

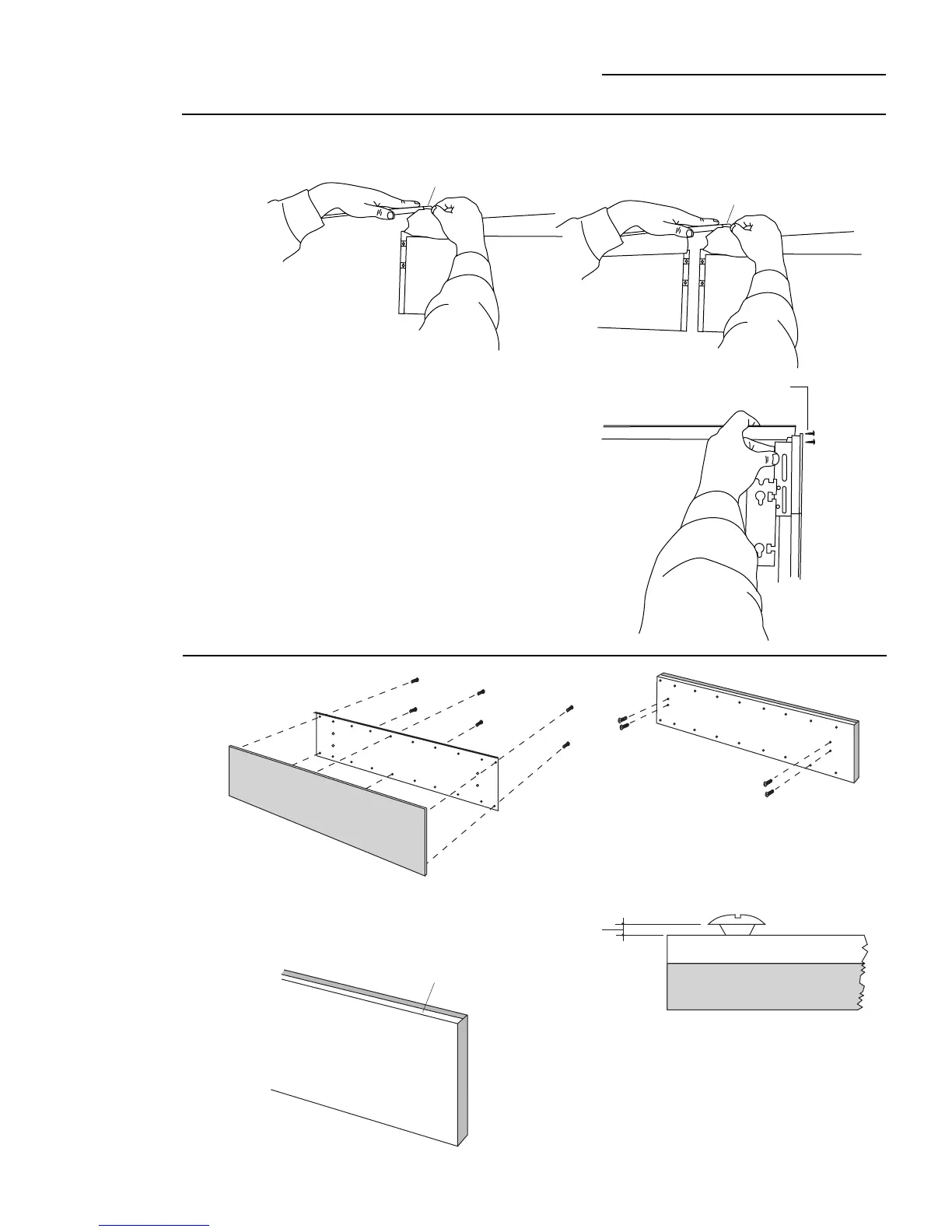

Step 9
Install
Soffit
Vent Top
• Separate the top and hinge side trim pieces by
removing side screws. Discard top piece, retain
screws.
• Install one end piece to unified top piece with 2
original screws.
• Slip end of rubber dust gasket into end of top unified
piece and slide trim towards the center. Engage the
second piece of gasket and continue sliding trim until
even with opposite ends.
• Reinstall end pieces to case trims. Push top piece up
against soffit or to installation height. Tighten screws
on both sides.
• Whenever possible, place a level on the top trim.
Adjust side trims until entire grille frame is level.
Slip Second Dust
Gasket Into Trim
Slip Dust Gasket
Into Trim On One End
Reinstall
Screws
• Secure the grille panel support to the back side of the
3/4" thick custom panel with #6 screws. Be sure the
lip of the support is over the top of the wood panel.
• Install four of the six larger undercut screws so that
the top of the screws are 1/16" from the surface of the
support.
• Attach the assembled panel to the grille opening by
inserting the four protruding screws into the brackets
on each side.
Back View
Grille Panel Support
Panel Support
Overlaps Top
Step 10
Secure
Custom Panel
To Support
Note: Use screws supplied with ZKTR36 Trim Kits.
