ZKH1 INSTALLATION
INSTRUCTIONS
ZKH1 Trim Kit
Custom Handles with 1/4" Panels

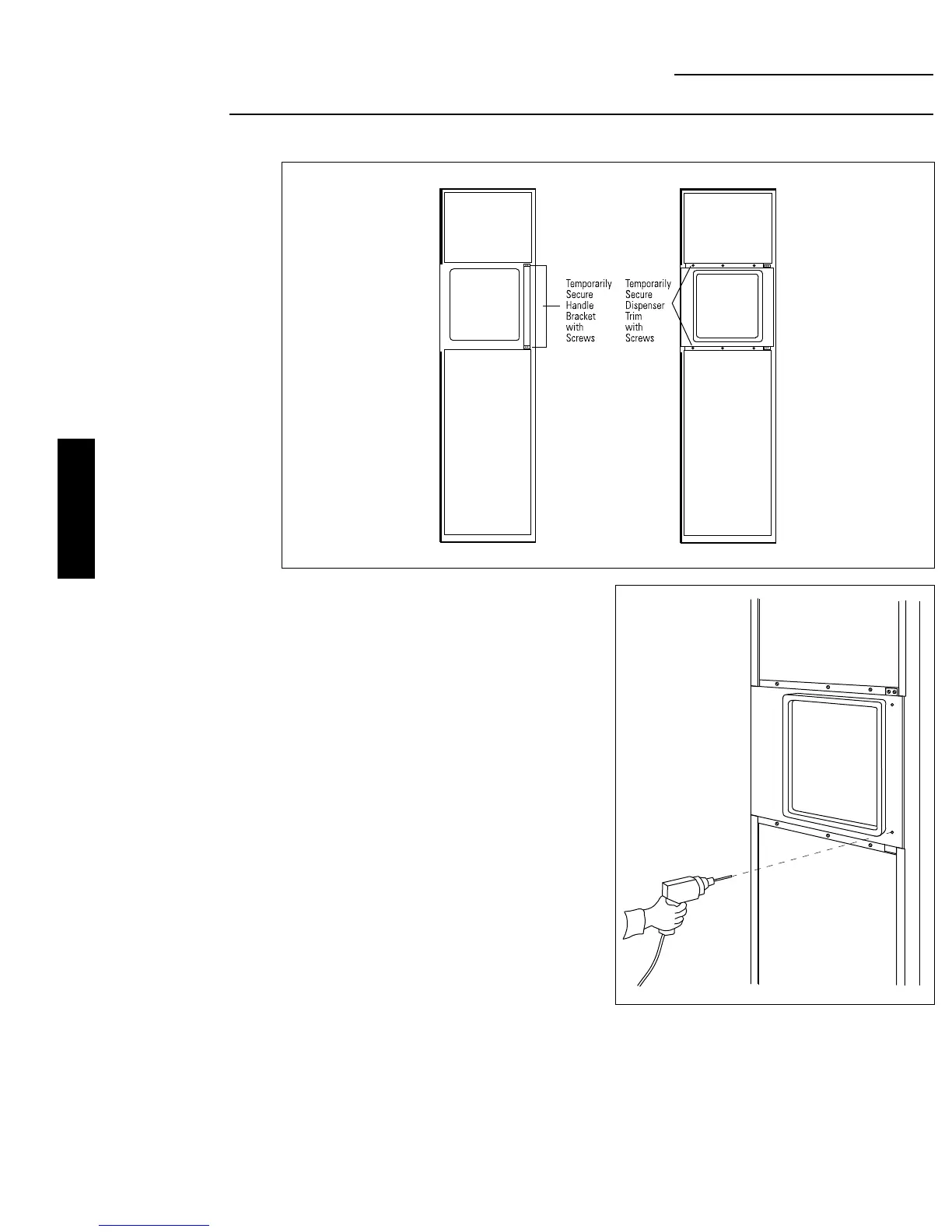

• Position the handle bracket onto the steel door by
matching existing screw holes on the door and
bracket. Temporary secure with screws.
• Re-install dispenser trim, temporarily.
• Determine the desired location of the custom handle
and carefully mark centerlines of the screw holes.
• Drill 1/16" pilot hole through the trim until it starts into
the handle bracket. This will mark the matching
location for drilling a clearance hole when assembling
the handle, bracket and dispenser trim.
• Remove dispenser trim and bracket.
24
Step 3
Locate
position
of handle
