Assembly instructions BA-100155
Control unit MonTurn
16

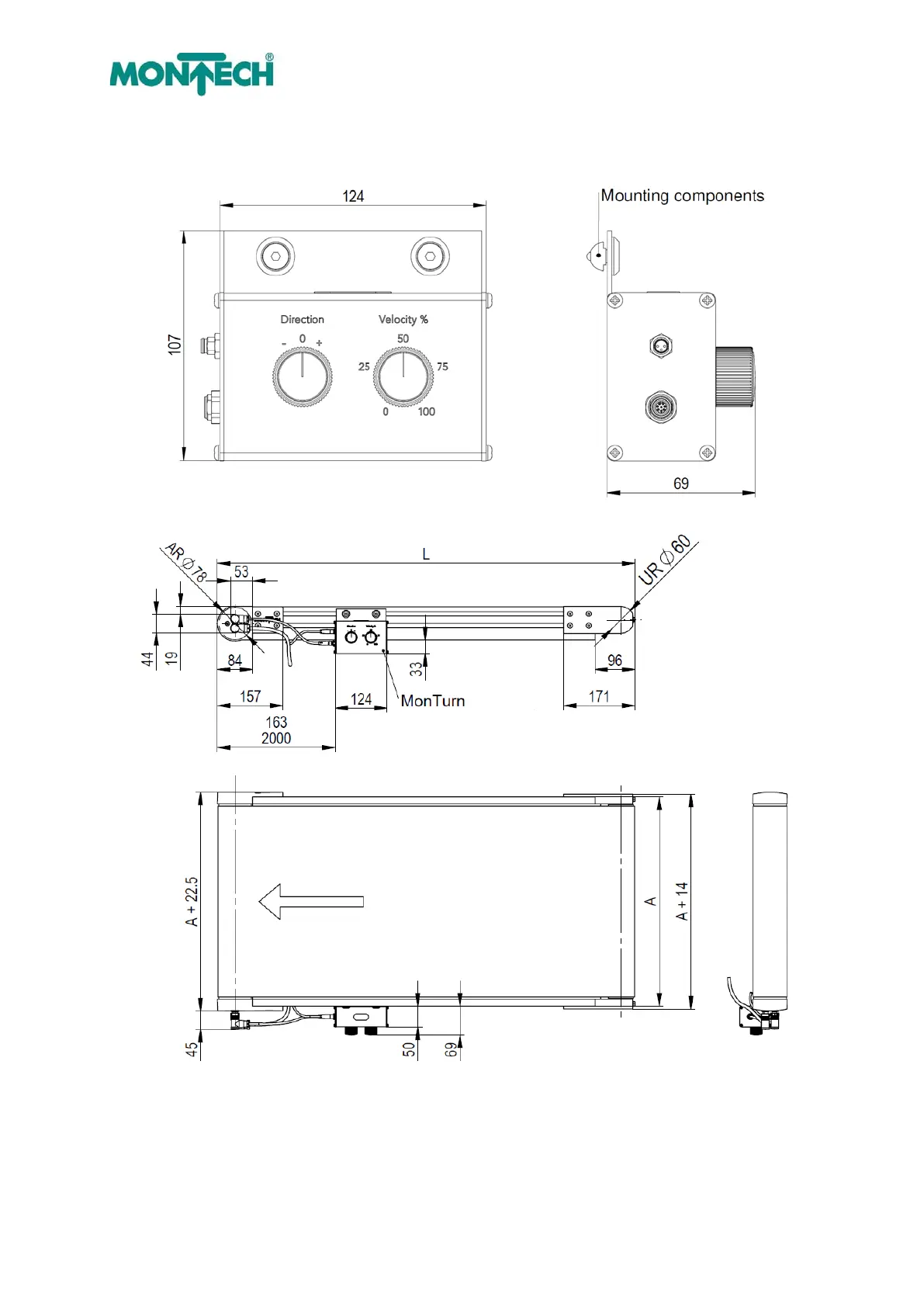

4.4 Dimension drawing
Figure 2: Dimension drawing MonTurn
Figure 3: Dimension drawing MonTurn connected with conveyor TB40
Conveying direction
towards drive only
min.
max.
