Electrical System
Helm ACC Panel
The primary circuit for the helm or cabin acces-
sory breaker panel near the helm or in the cabin
is protected and powered by this circuit breaker.
Other circuit breakers located in the helm or cabin
DC breaker panel protect the individual circuits.
This “push to reset” breaker is supplied current
when the HOUSE battery switch is activated.
Trim Tabs
Provides protection and electrical current to the
switches that control the optional trim tabs.
Interior Lights
Provides protection and electrical current to the
switch that activates the head and storage com-
partment lights.
Water Pump
Provides protection and electrical current to the
switch located in the battery switch panel that
activates the pump for the fresh water system. A
pressure switch automatically controls the water
pump when the system is activated and properly
primed.
Bilge Pump
Provides protection and power for the automatic
reset” breaker is always supplied current when the
batteries are connected. Another breaker in the
main DC breaker panel provides circuit protection
for the manual switch.
Sump Pump
Provides protection and power for the automatic
to reset” breaker is always supplied current when
the HOUSE battery switch is activated.
FWD Bilge Pump
Provides protection and power for the automatic
to reset” breaker is always supplied current when
the batteries are connected. Another breaker in
the main DC breaker panel provides circuit protec-
tion for the manual switch.
Ignition
Provides protection and electrical current to the
engine ignition switch.
Stereo
Provides protection and electrical current to the
stereo located in the compartment on the star-
board side of the cockpit.
Arch
Provides protection and electrical current to the
switch that activates the lights in the arch that
illuminate the cockpit.
12V Recept
Provides protection and electrical current to the
12 volt accessory receptacle.
Cockpit Fridge
Supplies 12-volt electrical current directly to the
optional cockpit refrigerator when AC current is
not being used.
Macerator
Provides protection and electrical current to the
holding tank monitor and the optional macerator
pump switch in the head compartment.
Windlass Circuit Breaker
A heavy duty circuit breaker that provides protec-
tion and power for windlass relay. This breaker is
supplied current when the battery selector switch
is activated. If the circuit breaker is tripped by an
overload, a yellow lever will be exposed near the
center of the breaker. Reset the breaker by rais-
ing the lever until it locks in the vertical position.
Engine Main Breakers
The primary circuits for the engine is protected
by heavy duty, “push to reset” breakers on each
engine. They are supplied power whenever the
engine battery switches are on. Refer to the en-
gine owner’s manual for information on the loca-
tion and operation of the engine circuit breakers.

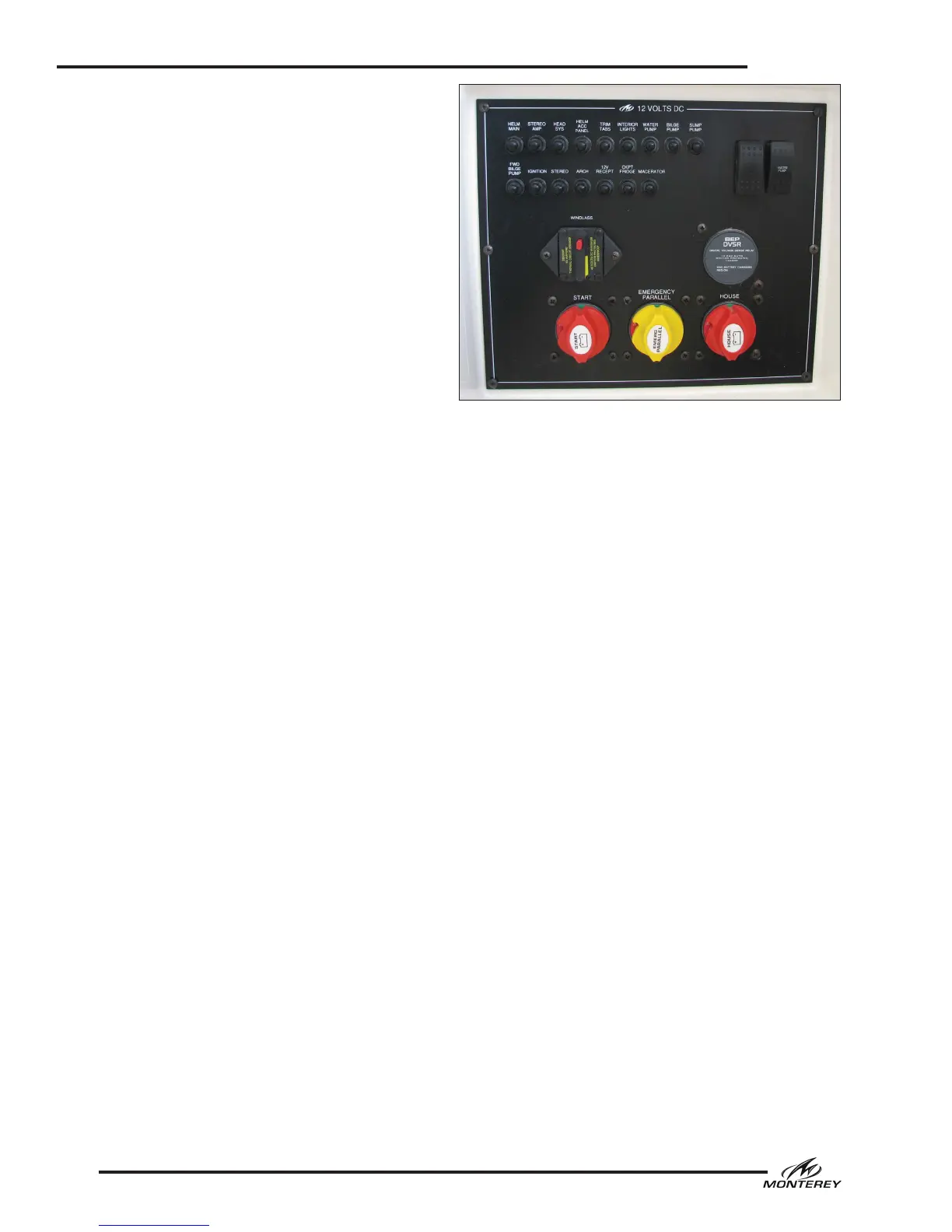

288SS Battery Switch Panel, Circuit Protection & Switches
