72
MONTEREY
BOATS
Electrical System

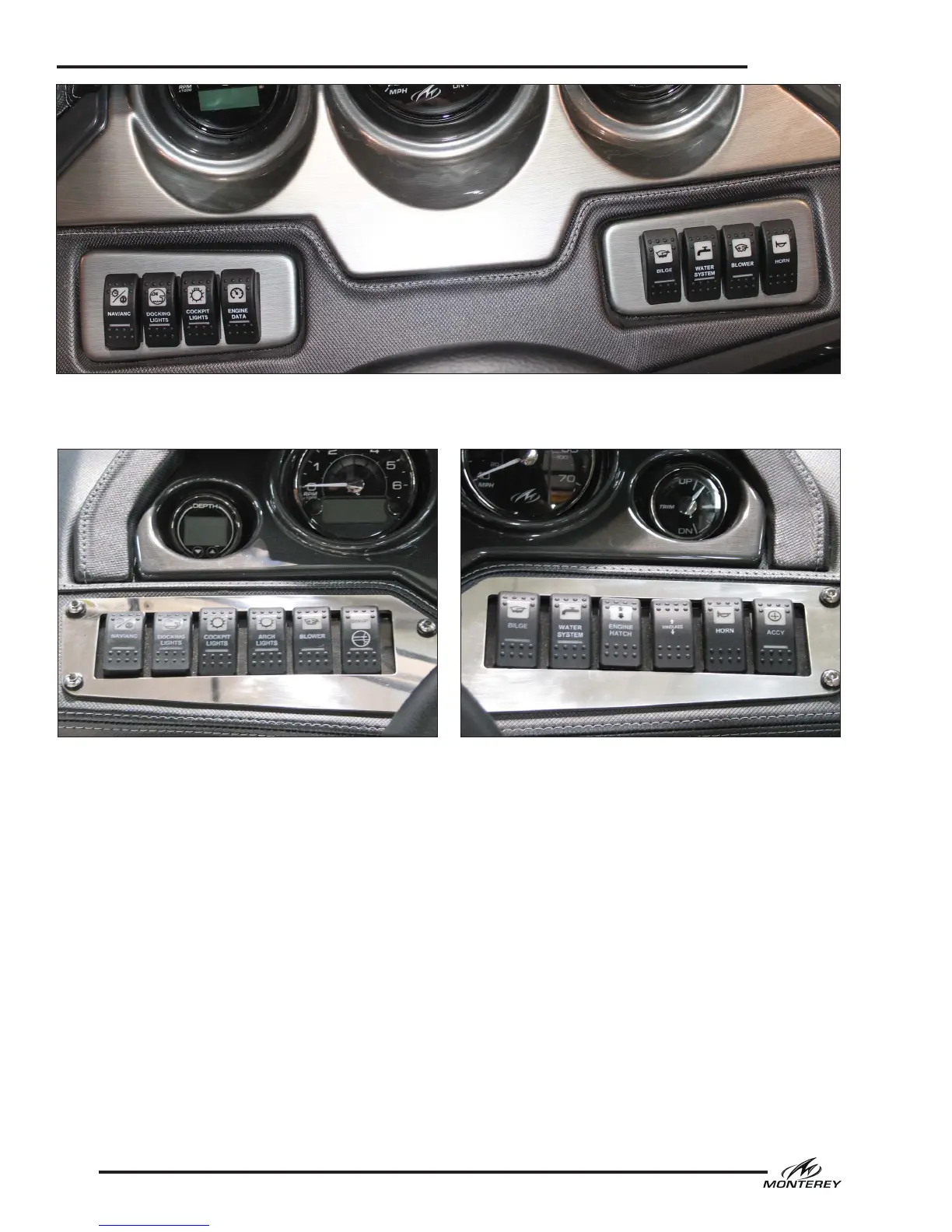

268SS Helm Switch Panels
6.4 12 volt Accessory Switch Panels
The main accessory switch panels and the engine
start switch are located at the helm. The circuit
breakers or fuses that protect the accessories and
activate the engine starting circuits are located in
a breaker panel or the power management module
in the compartment behind the helm. Two types
of helm switch panels are used on Super Sports
models. 218SS, 238SS and 268SS models use a
conventional helm switch panel with circuit pro-
tection in a separate breaker panel. 288SS and
328SS models use a digital helm switching system
with circuit protection in the power management/
fuse panel.
Conventional Helm Switch Panels
Conventional helm switch panels are equipped
with rocker switches that are labeled for the ac-
cessories they control. An LED light built into most
switches indicates that the circuit is activated.
Conventional switches connect the full current load
to each accessory. Each circuit is protected by
individual “push to reset” circuit breakers located
in a panel in the helm below the switches or in the
storage compartment forward of the helm.
Helm Switch Panels
214SS/218SS & 234SS/238SS
