Electrical System
The following is a description of the accessory
circuits protected by fuses in the power manage-
ment module.
Hatch Lifter UP/Down
Protects the up and down circuits for the engine
hatch actuator.
Horn
Protects the circuit for the horn.
Blower 1
Protects the circuit for Blower 1 in the engine
compartment.
Blower 2
Protects the circuit for Blower 2 in the engine
compartment.
Wiper
Protects the circuit for windshield wipers.
Engine Room LTS
Protects the circuit for the lights in the engine
room.
Docking LTS
Protects the circuit for the docking lights in hull
at the bow.
Bilge Pump
Protects the manually activated circuit for the aft
bilge pump in the engine room.
FWD Bilge Pump
Protects the manually activated circuit for the
forward bilge pump.
Windlass UP
Protects the up circuit that activates the windless
to raise the anchor.

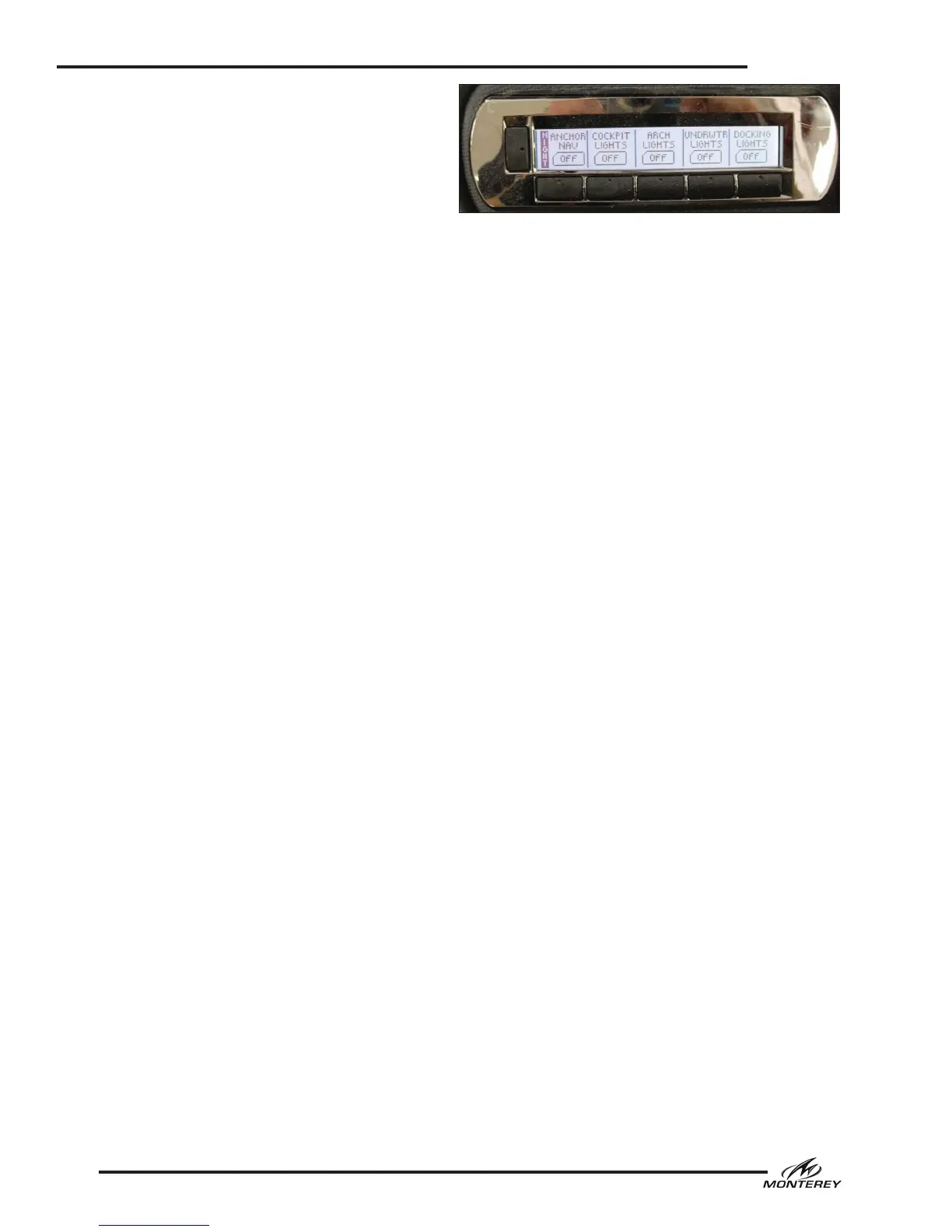

Typical Digital Helm Switch Panel
Windlass Down
Protects the down circuit that activates the wind-
less to lower the anchor.
Arch LTS WHT
Protects the circuit for the white lights in the arch
that illuminate the cockpit.
Arch LTS RED
Protects the circuit for the red lights in the arch
that illuminate the cockpit.
Cockpit LTS
Protects the circuit for the lights that illuminate
the cockpit sole.
Exhaust
Protects the circuit that activates the diverter
valves in the exhaust system.
Masthead LT
Protects the circuit for the anchor light.
UW LTS
Protects the circuit for the underwater lights that
illuminate the water around the boat.
Nav LTS
Protects the circuit for the navigation lights.
