MULTI-MODEL

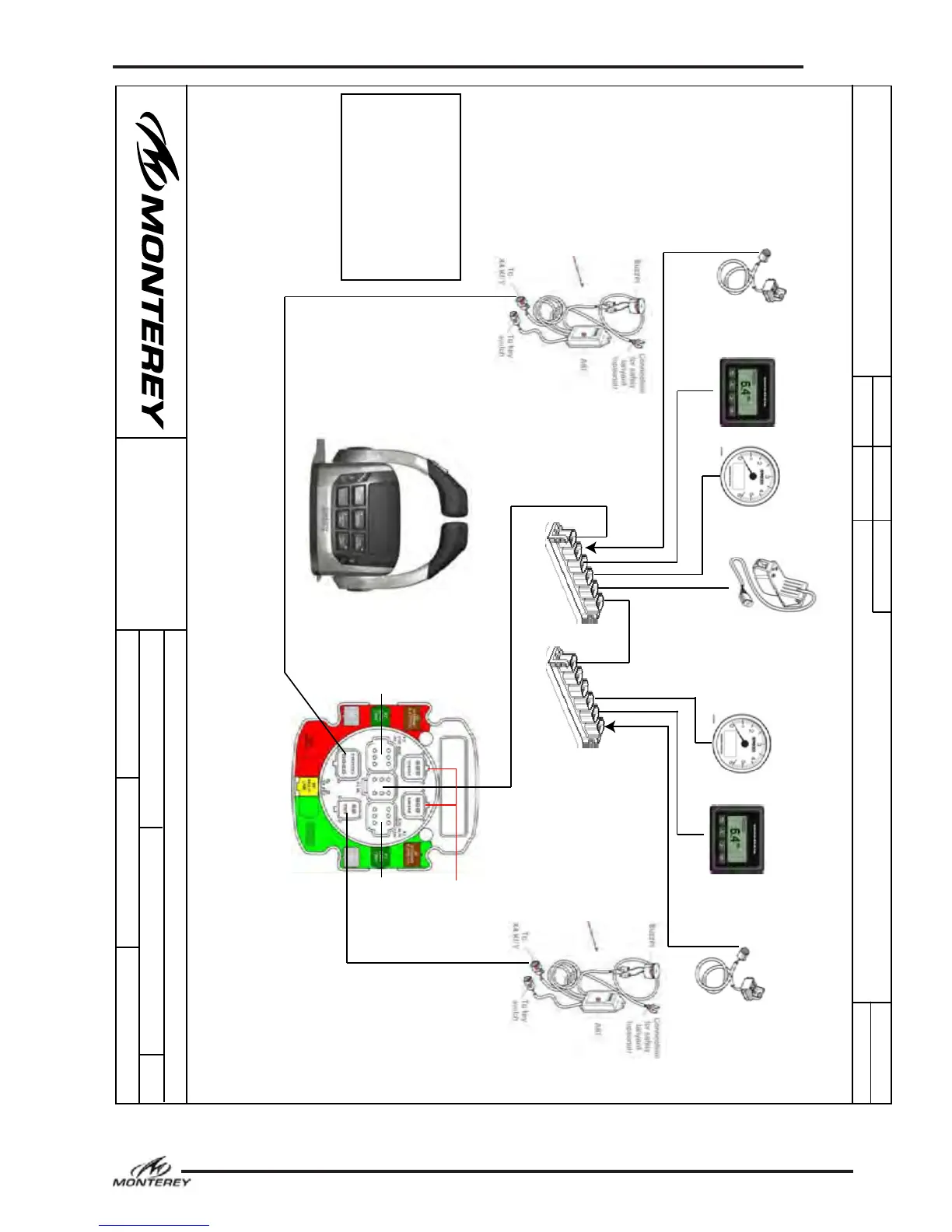

VOLVO TWIN ENGINE EVC-D WIRING DIAGRAM
NLE
8/18/10
N.T.S.COM-008-4012
1 OF 3
ECN 11-063
MULTILINK CABLE
MULTILINK CABLE
MULTILINK CABLE
JOYSTICK BOATS ONLY
PORT ENGINE X2 CABLE
KEY-ON RELAY
KEY-ON RELAY
ANALOG KEY INTERFACE
ANALOG KEY INTERFACE
TRANSDUCER/MULTI-SENSOR
STANDARD TWIN ENGINE INSTALLATION
USING VOLVO GAUGES
PORT ENGINE
STBD ENGINE
EVC-D TWIN MAIN STATION KIT
INCLUDES:
(1) MULTILINK HUB
(3) MULTILINK CABLES
(2) ANALOG KEY INTERFACES
(2) GAS KEY HARNESSES
STBD ENGINE X2 CABLE
MULTILINK CABLE
MULTILINK CABLE
MULTILINK CABLE
VOLVO EVC-D DIAGRAMS
