M5 MSX Wet Sounds Installation
THIS DOCUMENT IS THE PROPERTY OF MONTEREY BOATS. THIS DOCUMENT AND ANY INFORMATION
OBTAINED FROM IT CAN NOT BE COPIED OR SHARED WITH OTHERS WITHOUT THE WRITTEN
PERMISSION OF MONTEREY BOATS. ALL RIGHTS ARE RESERVED.
REV: DATE: DESCRIPTION:
BY:
TITLE:
DRAWING NUMBER:
SHEET:
DRAWN BY: DATE:
SCALE:
CHECKED BY:
DATE: APPROVED BY:
DATE:
MULTI-MODEL
M-SERIES TOWER SPEAKER INSTALLATION
NLE
4/2/10
N.T.S.1012-008-317
1 OF 3

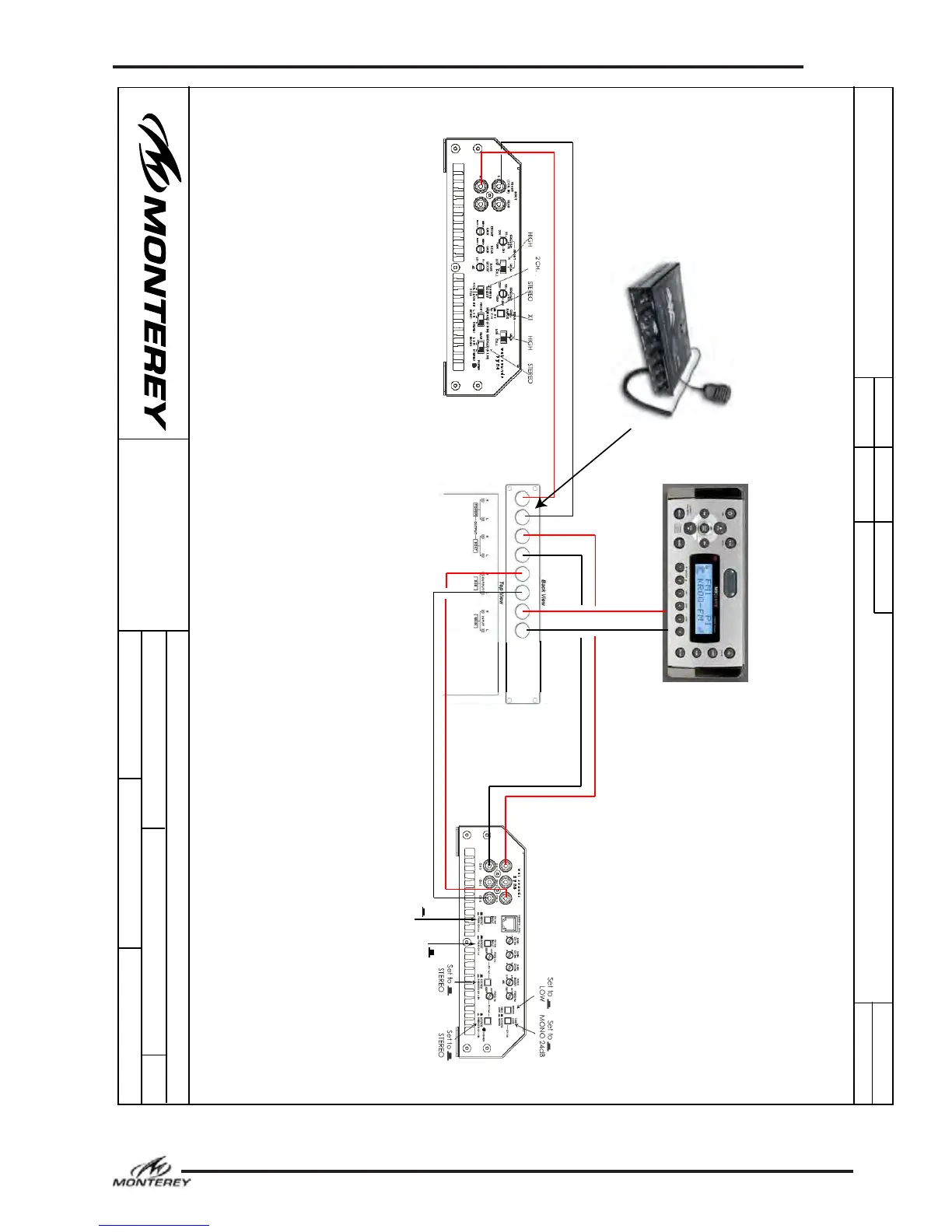

FRONT OUTPUT
WET SOUNDS SYN4 AMPLIFIER
(TOWER SPEAKERS)
WET SOUNDS SYN6 AMPLIFIER
(BOAT SPEAKERS + SUBWOOFER)
NOTES ABOUT SYSTEM INSTALLATION:
FRONT OUTPUT WILL BE INPUT FOR ALL SPEAKERS.
REAR OUTPUT AND SUBWOOFER OUTPUT ON HEAD UNIT ARE NOT USED.
VOLUME CONTROL ON HEAD UNIT WILL TURN ALL SPEAKERS UP/DOWN.
PA/MIXER WILL CONTROL BOAT SPEAKERS, TOWER SPEAKERS, AND SUBWOOFER INDEPENDENTLY.
PA/MIXER MICROPHONE WILL ONLY BROADCAST THROUGH TOWER SPEAKERS.
BOAT SPEAKERS
SUBWOOFER
SET TO
“FROM CH 1-2”
SET TO
“DIRECT”
MSX PACKAGE WET SOUNDS
AMPLIFIER RCA CONNECTIONS AND AMPLIFIER SETTINGS
TOWER SPEAKERS
WET SOUNDS WS420
PA/MIXER/MICROPHONE
