Moog D680 Series - Accessories and Spare Parts D684 Series

56Rev. C, April 2017
ORDERING INFORMATION Moog D680 Series Proportional Control Valves
ACCESSORIES AND SPARE PARTS
56
ORDERING INFORMATION
Rev. C, April 2017
Moog D680 Series Proportional Control Valves
ACCESSORIES AND SPARE PARTS

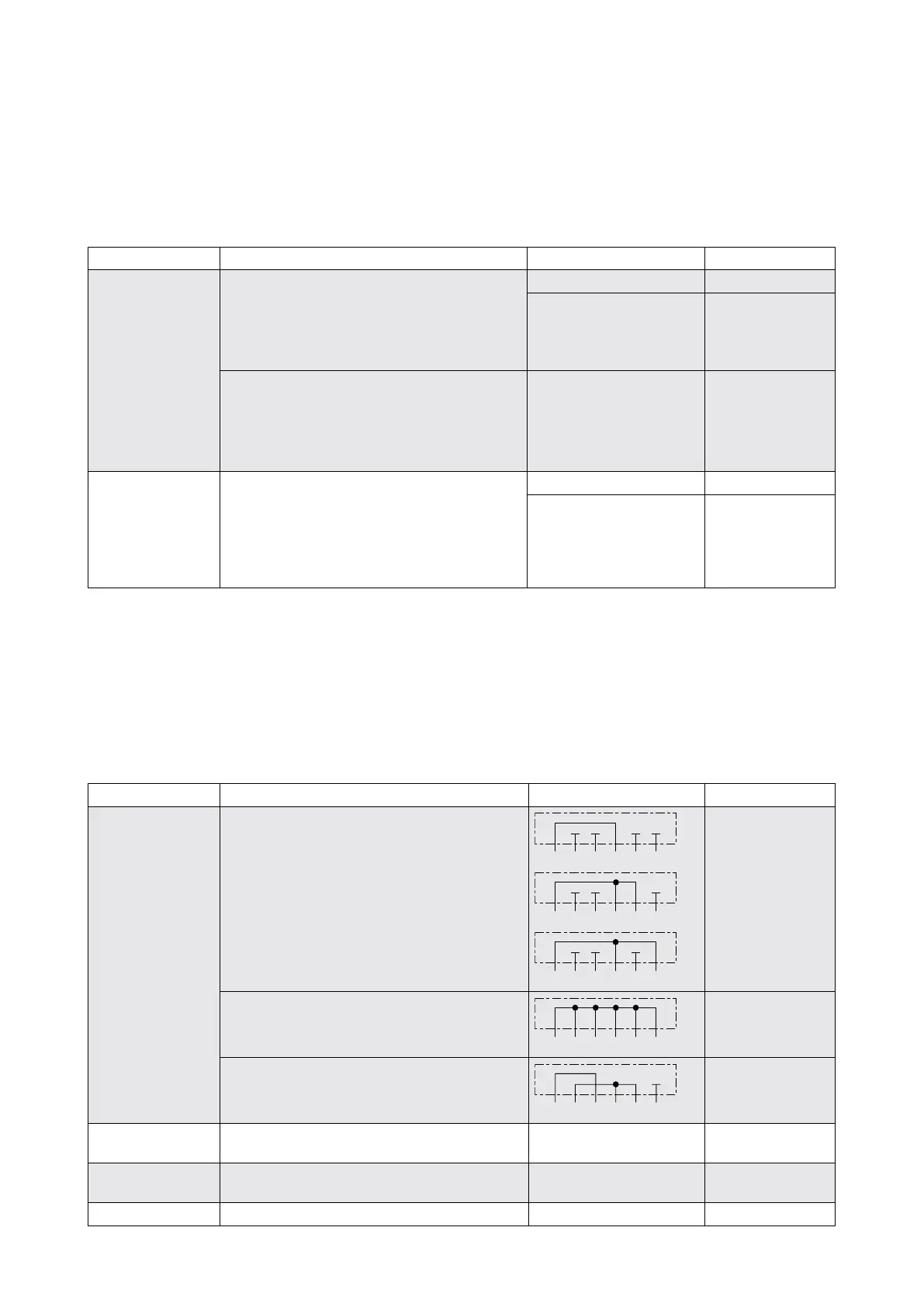

Series-specific Accessories and Spare Parts
Spare Parts Size 08 - D684 Proportional Control Valve
Part name Description Material Part number
Service sealing set
for main stage
Contains the following O-rings:
• 4 pieces for ports P, T, A, B, inner Ø 34.6 mm
(1.36 in) x Ø 2.6 mm (0.1 in)
• 2 pieces for ports X, Y, inner Ø 20.29 mm
(0.8 in) x Ø 2.6 mm (0.1 in)
FKM 90 Shore B97215-V6X4-25
NBR 90 Shore B97215-N6X4-25
Contains the following Kantseals:
• 4 pieces for ports P, T, A, B, inner Ø 34.6 mm
(1.36 in) x ∫ 2.6 mm (0.1 in)
• 2 pieces for ports X, Y, inner Ø 20.29 mm
(0.8 in) x ∫ 2.6 mm (0.1 in)
Kantseal HNBR 85 Shore B97215-S6X4-25
Service sealing set
for pilot valve or
4/2-way solenoid
valve
Contains the following O-rings:
• 4 pieces for ports P, T, A, B, inner Ø 9.25 mm
(0.36 in) x Ø 1.8 mm (0.07 in)
• 1 piece for port Y, inner Ø 7.65 mm (0.3 in) x
Ø 1.8 mm (0.07 in)
FKM 90 Shore B97215-V630F63
HNBR 90 Shore B97215-H630F61
Accessories Size 08 - D684 Proportional Control Valve
Part name Description Remark Part number
Flushing plate P-T or P-T-X or P-T-X-Y adjustable
Mounting screws and O-rings included
AP B YT X
AP B YT X
AP B YT X
-76047-001
P-A-B-T-X-Y
Mounting screws and O-rings included
AP B YT X
-76047-002
P-B and A-T-X
Mounting screws and O-rings included
AP B YT X
-76047-003
Manifold ISO 4401 size 08, ports P, A, B, T with G 1 1/2 A,
ports X, Y with G 1/2 A
A25855-009
Mounting screws 6 pieces M12x75, ISO 4762-10.9, tightening
torque 94 Nm (69 lbf ft)
A03665-120-075
Shipping plate ISO 4401 size 08 A88832
