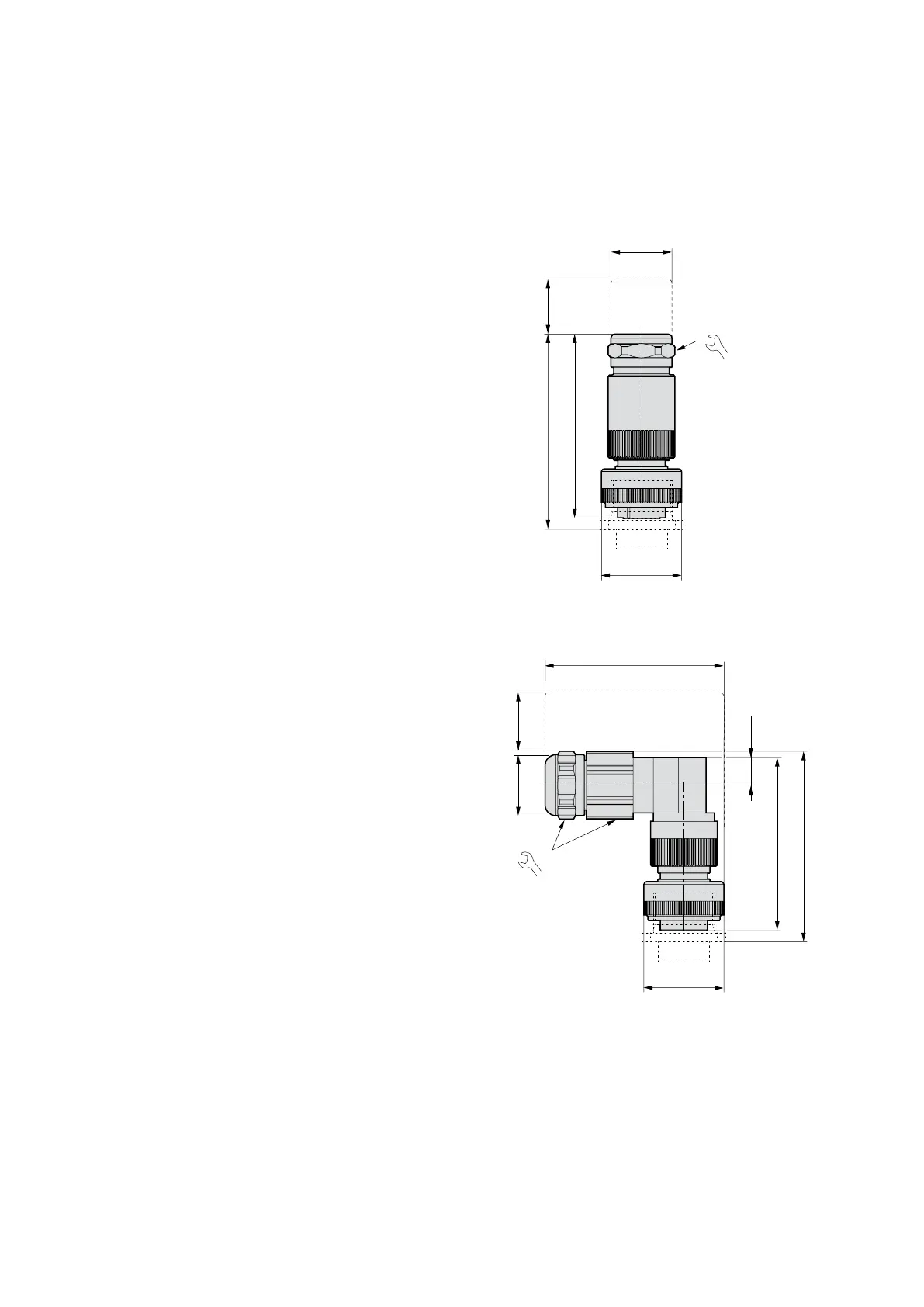

Mating Connector, Straight 6-pole + PE
In accordance with EN 175201-804, type R, metal, IP65,
crimp contact Ø 0.75 to 1.5 mm
2
(0.0012 to 0.0023 in
2
),
conus Ø 12.2 mm (0.48 in), cable Ø 8 to 12 mm (0.31 to
0.47 in), sealing element Ø 9 to 13 mm (0.35 to 0.51 in)
Part number B97007-061
22, max. 20 Nm
(177 lbf in)
Ø 22
(0.86)
Ø 29
(1.13)
66
(2.60)
20
(0.79)
70
(2.76)
Mating Connector, Elbow 6-pole + PE
In accordance with EN 175201-804, type S, metal, IP65,
crimp contact Ø 0.75 to 1.5 mm
2
(0.0012 to 0.0023 in
2
),
conus Ø 12.2 mm (0.48 in), cable Ø 8 to 12 mm (0.31 to
0.47 in), sealing element Ø 9 to 13 mm (0.35 to 0.51 in)
Part number B97069-061
64
(2.53)
Ø 22
(0.86)
10
(0.39)
62
(2.45)
67
(2.64)
Ø 28.8
(1.13)
22, max. 20 Nm
(177 lbf in)
20
(0.79)
