25
PATCHBAY (Continued)

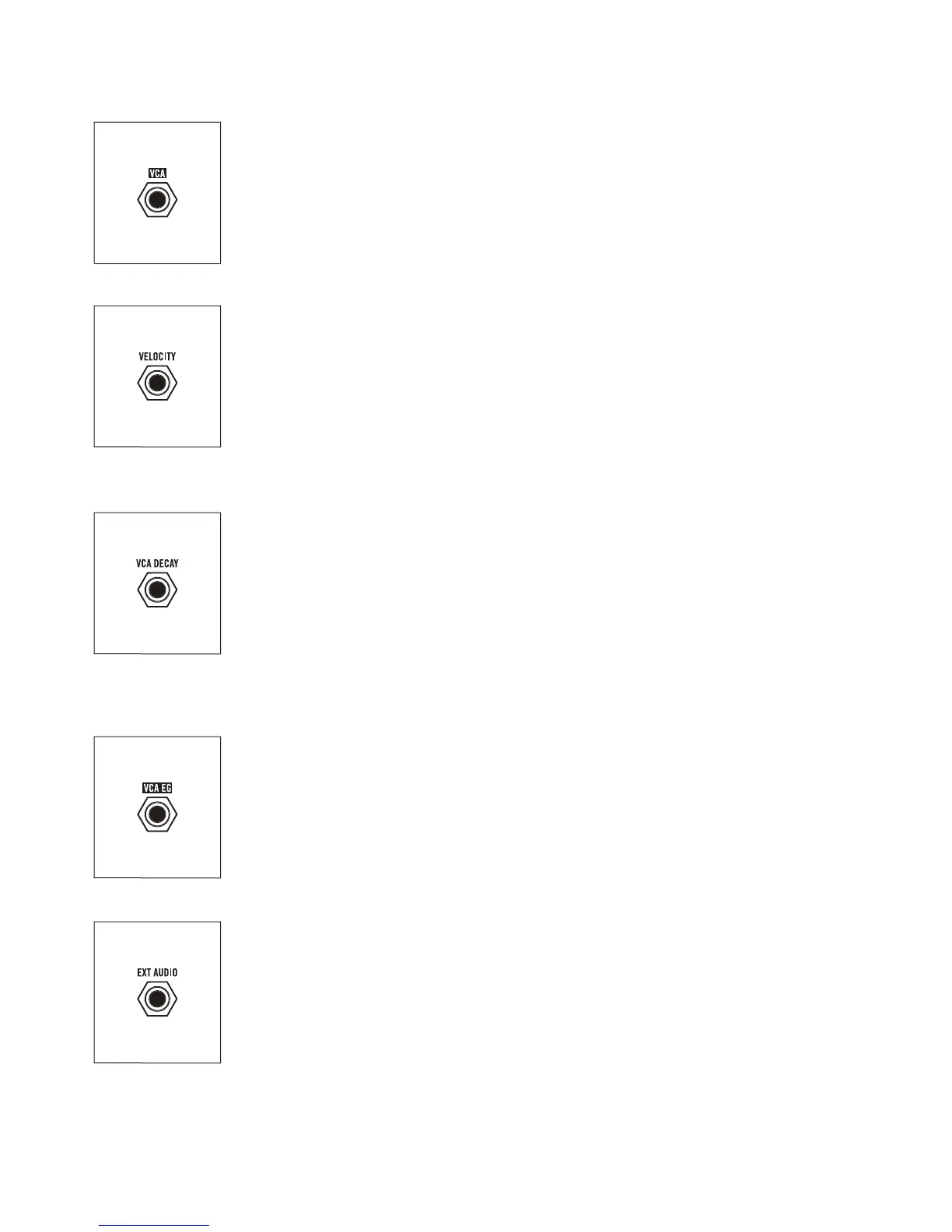

VCA (AUDIO OUTPUT)
This is the main audio output of the internal VCA set by the VOLUME knob.
OUTPUT
-5V to +5V Audio Signal at typical Eurorack levels
VELOCITY (VELOCITY CONTROL VOLTAGE INPUT)
This input controls the maximum amplitude of DFAM’s Envelope Generators,
and is one of the keys to DFAM’s highly dynamic and expressive sound.
INPUT
0V to +5V Control Voltage
NOTE: The VELOCITY input is normalled (or hard-wired) to the Sequencer
VELOCITY 1-8 knobs.
VCA DECAY (VCA DECAY CONTROL VOLTAGE INPUT)
This input determines the Decay Time of the VCA EG and is useful for adding
variations to non-pitched percussion patterns such as hi-hats.
INPUT
-5V to +5V Control Voltage
NOTE: The VCA DECAY input is summed with the manual VCA DECAY knob.
Setting the VCA DECAY knob to its middle position will offer the widest range
of values from an external CV signal.
VCA EG (VCA EG CONTROL VOLTAGE OUTPUT)
This output provides a copy of the control voltage used to modulate the VCA internally.
OUTPUT
0V to +8V Control Voltage
NOTE: The VCA EG output voltage is based on the Sequencer VELOCITY 1-8
knobs, the VCA DECAY knob, and the VCA EG SLOW / FAST switch.
EXT AUDIO (EXTERNAL AUDIO INPUT)
Plugging an External Audio source into this jack removes the Noise Generator
from the signal path and replaces it with the External Audio Signal. The volume
of this signal is then controlled by the NOISE / EXT LEVEL knob in the DFAM
Mixer.
INPUT
10V peak to peak audio signal
NOTE: Because this is a unity gain input designed for typical Eurorack signal levels, an external audio source
applied to this input should be 10V peak to peak. Signals lower than this (an MP3 player for instance) will
need to be amplified prior to being input to the EXT AUDIO jack for proper volume performance levels.
