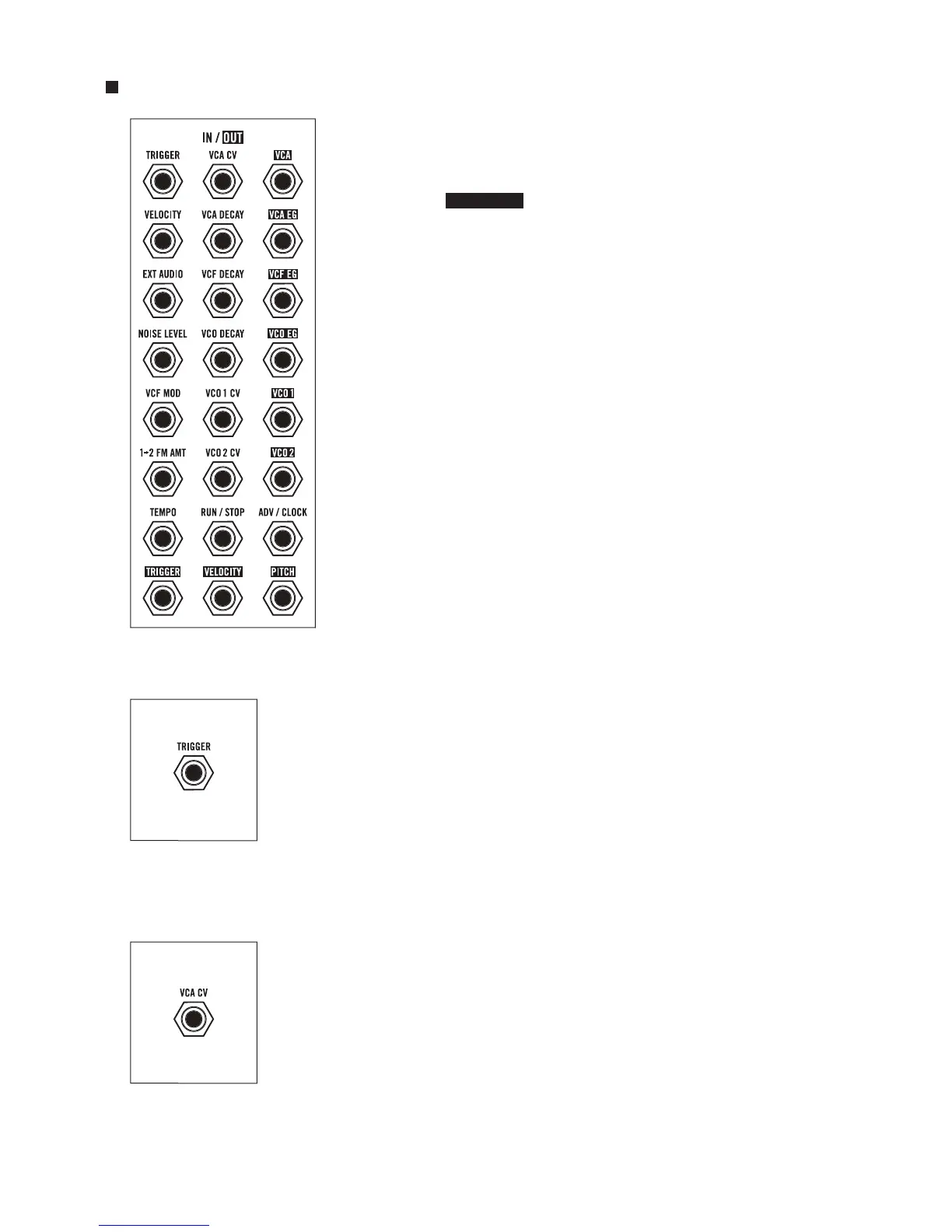

The DFAM Patchbay is equipped with 24 x 3.5mm patch points, which
allow for extended synthesis capabilities and modular interconnectivity.
There are 15 inputs LABELED in standard text, and 9 outputs
identified by lettering.
The Patchbay is designed to work with 3.5mm patch cables only. A
pack of five is included with your DFAM. If you should need more, 6"
and 12" packs of Moog cables are available for purchase at authorized
Moog dealers.
NOTE: When patching, it is OK to split an output signal with a “Mult”, a
TS to dual TS “Y” cable, or by using cables with stackable plugs. Connect
only one output signal to a CV input to prevent over-voltages.
AVAILABLE INPUTS
TRIGGER, VCA CV, VELOCITY, VCA DECAY, EXT AUDIO, VCF DECAY,
NOISE LEVEL, VCO DECAY, VCF MOD, VCO 1 CV, 1�2 FM AMT,
VCO 2 CV, TEMPO, RUN / STOP, ADV / CLOCK.
AVAILABLE OUTPUTS
VCA, VCA EG, VCF EG, VCO EG, VCO 1, VCO 2, TRIGGER, VELOCITY, PITCH.
TRIGGER (TRIGGER INPUT)
This input will Trigger all three DFAM Envelope Generators at the currently
selected Sequencer Step Velocity level without causing DFAM to advance
to the next step in a sequence. This is useful when connecting to external
sequencers.
INPUT
0 to +5V Pulse or Gate signal (+10V tolerant)
NOTE: The TRIGGER input is normalled (or hard-wired) to the Sequencer Clock Signal and then routed
to the Envelopes and the TRIGGER output.
VCA CV (VCA CONTROL VOLTAGE INPUT)
This input allows a control voltage to be applied to DFAM’s output VCA,
providing another means of varying or modulating the overall volume or
timbre of the sound.
INPUT
0 to +8V Control Voltage
NOTE: This input is summed with the internal VCA EG control signal, which may
cause certain patches to “clip” the VCA. This may or may not be desirable.
