main gear
as
shown in Figure
7-2.
Replace these eyebolts
with jack point fixtures when it is necessary to
lift
the air-
craft with jacks: The
tail
tiedown ring
is
under the tail skid.
To tie down the aircraft:
(1)
Park the airplane facing the wind.
(2)
Fasten the co-pilot seat belt through the flight control
wheel.
(3)
Fasten strong ground-anchoredchain or rope to the in-
stalled wing
tiedown eyebolts, and place wheel chocks
fore and aft of each wheel.
(4)
Fasten a strong ground-anchored chain or rope to the
empennage
tiedown ring.

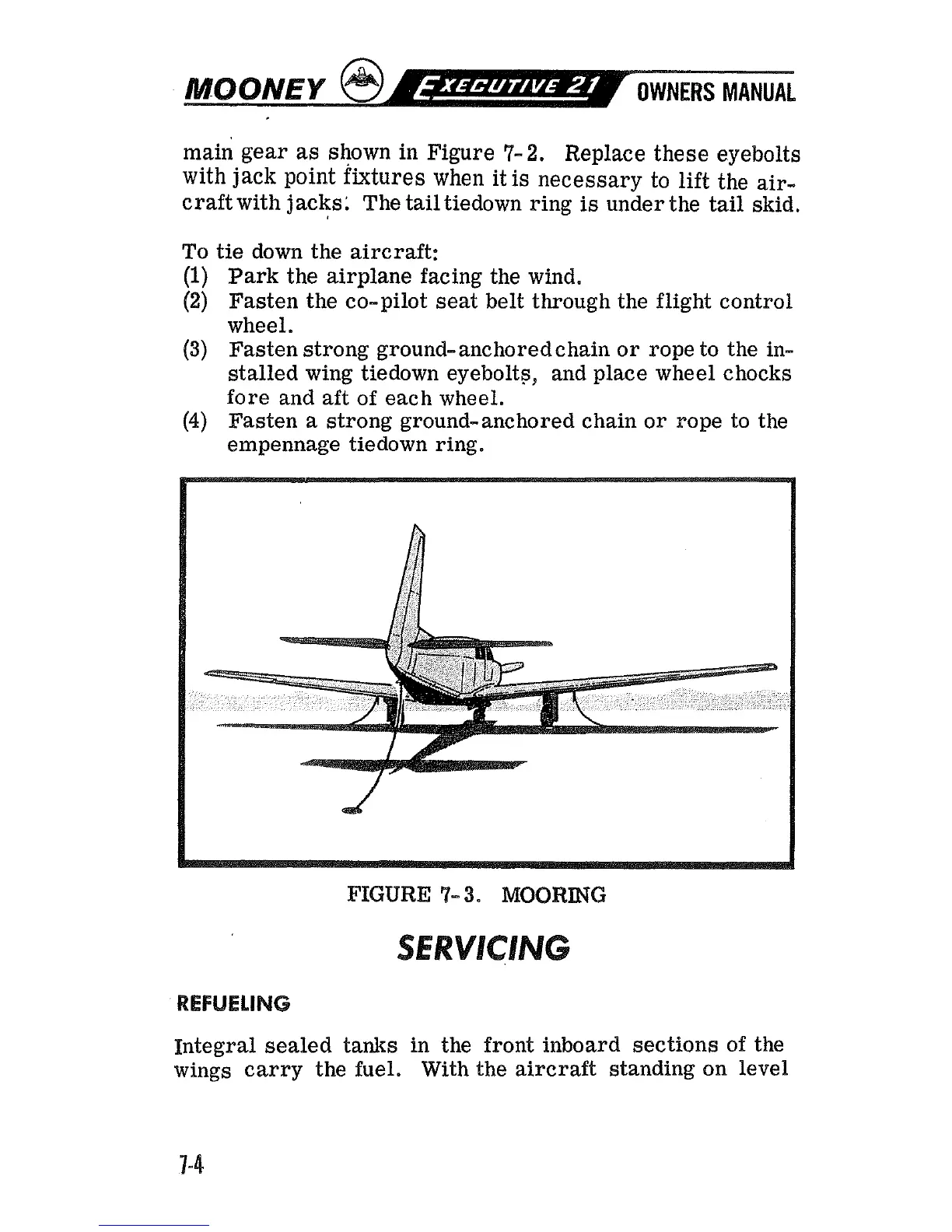

FIGURE
7-
3.
MOORING
SERVICING
REFUELING
Integral sealed tanks in the front inboard sections of the
wings carry the fuel.
With
the aircraft standing on level
