Operating Controls
2.5

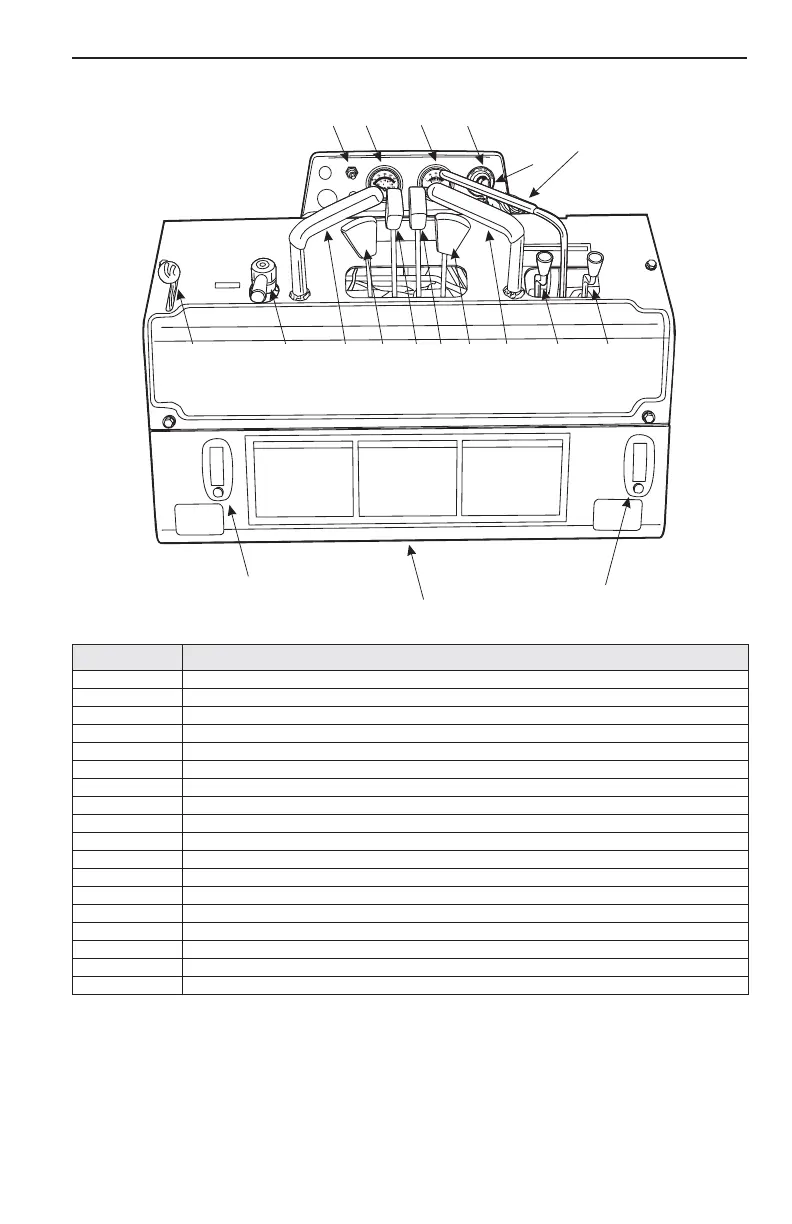

Operating Controls
Item No. Description
1 High/Low speed control switch
2 Engine coolant temperature gauge
3 Engine oil pressure gauge
4 Ignition switch
5 Ignition key
6 Auxiliary attachment activation control
7 Track widen control
8 Auxiliary hydraulic cylinder control
9 Right hand grip
10 Attachment tilt control
11 Right travel motor control
12 Left travel motor control
13 Loader arm lift control
14 Left hand grip
15 Travel crawl speed control
16 Engine throttle
17 Access panel Lock Levers
18 Lower service access panel
5
6
16 15 14 13 12 11 10 987
17
17
