Morbark BOXER 532DX - Control Operation Details

Operating Controls
2.6

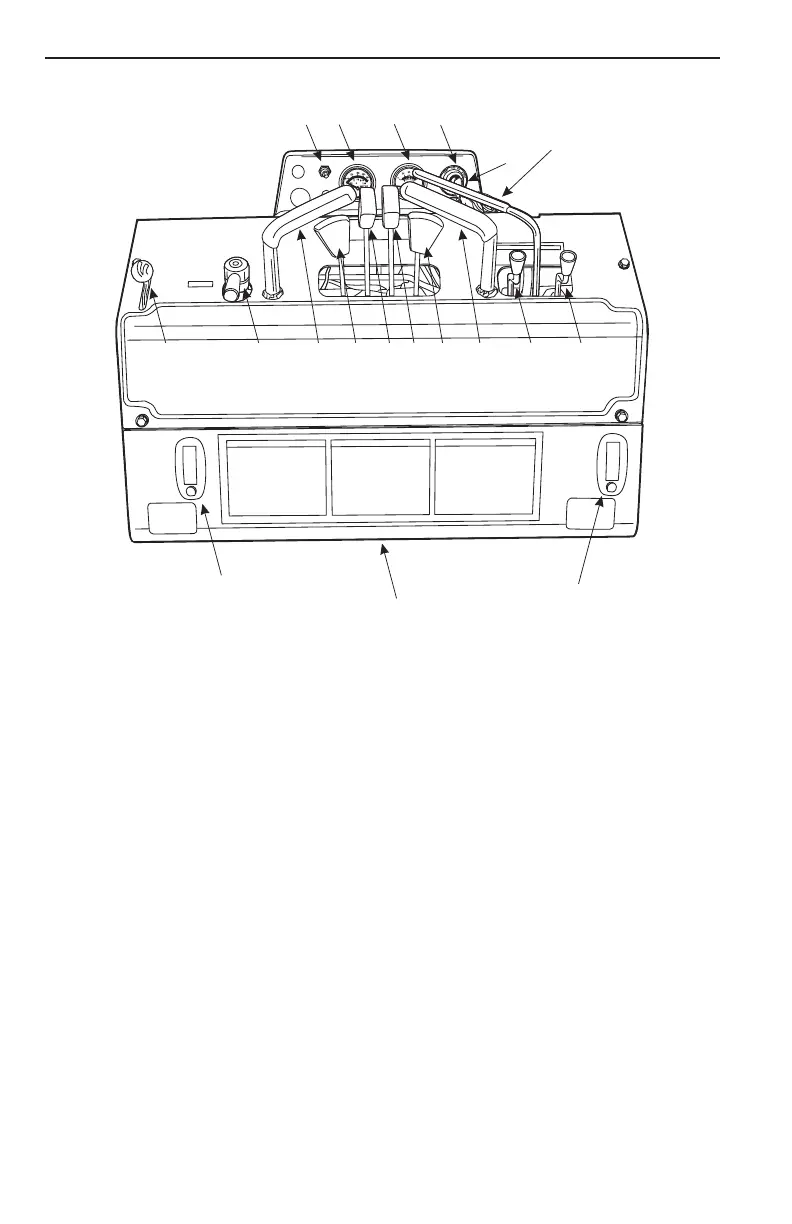

Operating Controls Description
1. High/Low Speed Range Selector Switch – Selects the travel speed range.
2.
Engine Coolant Temperature Gauge – Gauge indicates the temperature of the
engine coolant.
3.
Engine Oil Pressure Gauge – Gauge indicates the engine oil pressure when the
engine is running.
4.
Ignition Switch – Rotating the key switch to the left activates the engine glow plug.
Rotating the key switch one position to the right turns on the electrical controls.
Rotating the switch fully to the right activates the engine starter.
5.
Ignition Key
6.
Attachment Activation Lever/Operator Presence Control – With your right hand,
squeeze the AUXILIARY attachment control lever towards the hand hold to
activate the attachment in the FORWARD motion.
NOTE: The lever is spring loaded and when released, will automatically move from the
FORWARD motion position to NEUTRAL stopping attachment motion.
If you want to reverse the operation of the attachment, move the auxiliary control lever to the
REVERSE position. The control lever will remain in the REVERSE position detent until it
is moved to the NEUTRAL position.
