Pre Start Inspection and Operation
3.24
3-35 Auxiliary Control Lever
b. Remove the protective covers (Items 4, Figure 3–36) from the attachment quick
connectors.
c. Wipe off the end of each of the connectors (Items 1, 2, 3, 5 Figure 3–36) to remove any
dirt or debris.

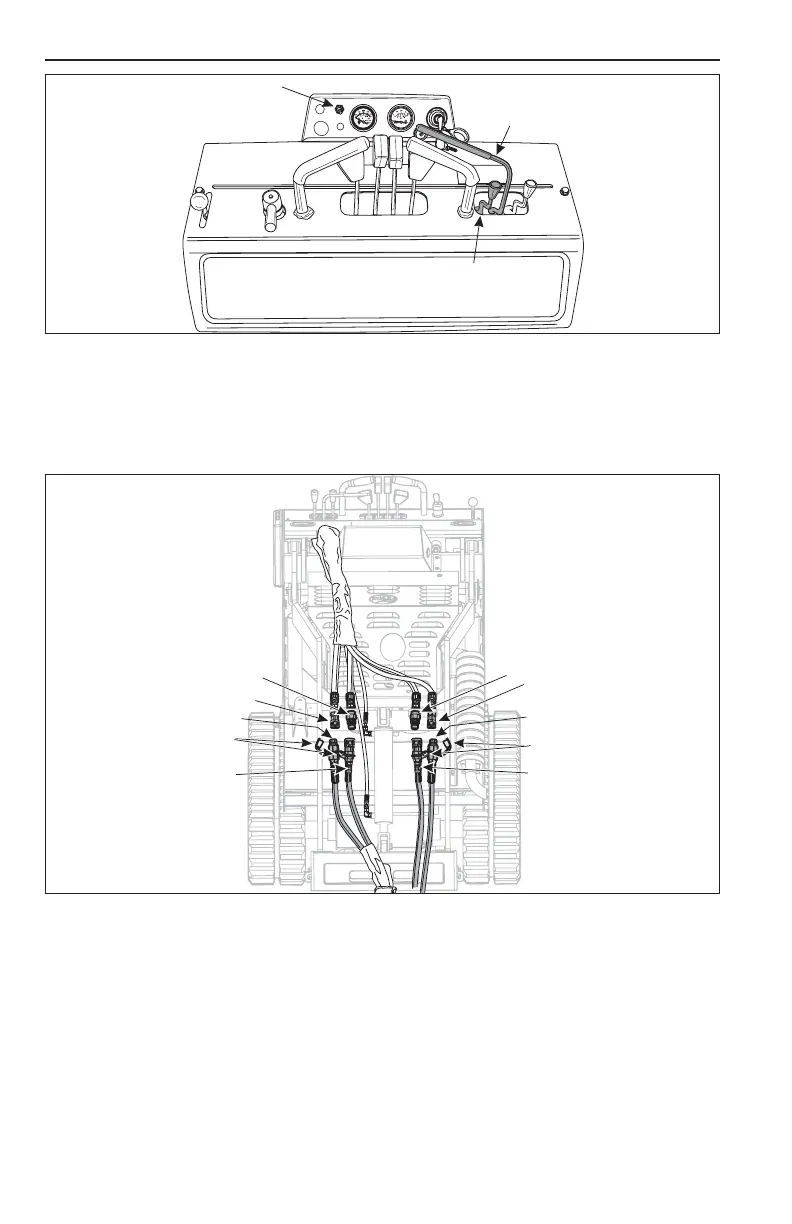

3-36 Auxiliary Hydraulic Quick Connects
d. Insert the attachment’s male coupling (Item 3, Figure 3–36) into the female bulkhead
quick coupling (Item 2, Figure 3–36) on the machine and push until the connector locks
into position.
e. Repeat the above process to connect the attachments’ female quick connect (Item 5,
Figure 3–36) on the other hose to the male bulkhead connector (Item 1, Figure 3–36) on
the machine.
f. Check the security of both connections by gently tugging on the attachment hoses to
make sure that the quick connects are seated properly.
