Routine Service and Maintenance
4.27

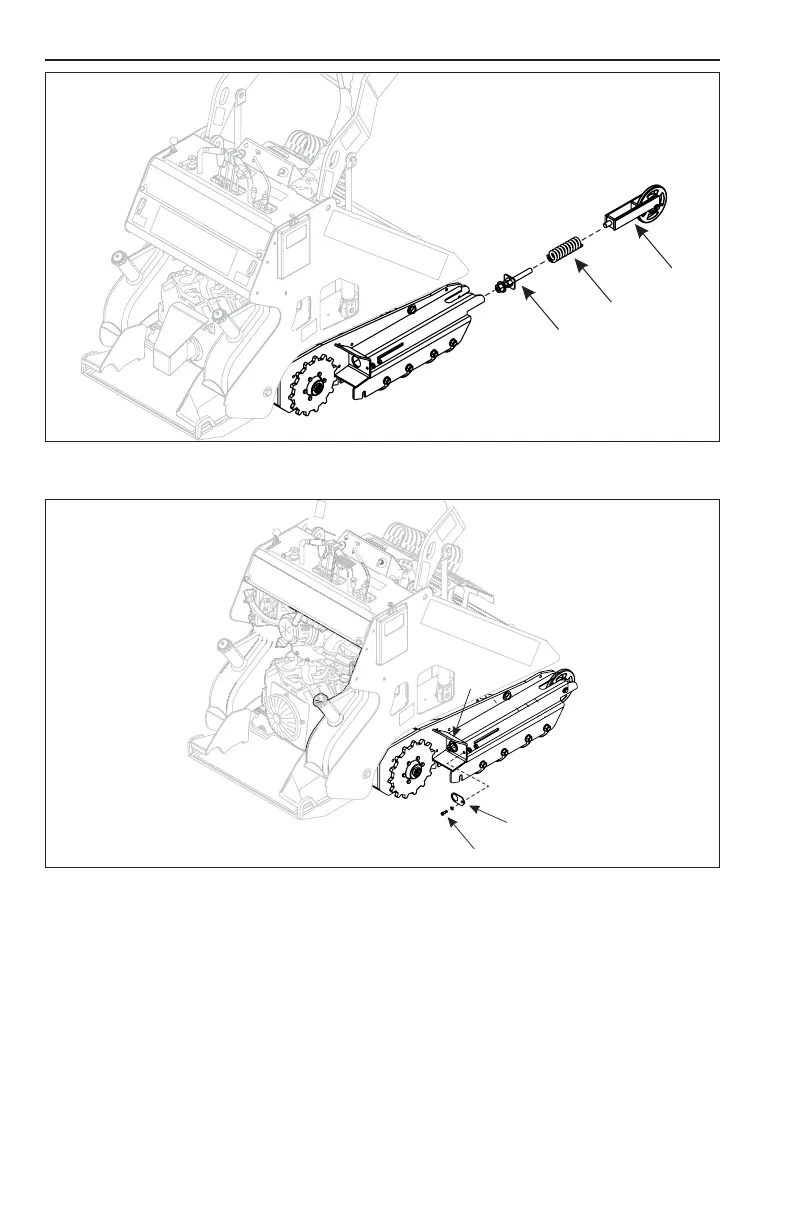

Figure 4-27 Track Drive Components Installed
7. Move rubber track away from the machine.
Figure 4-28 Remove Lock Plate
8. Remove track tension lock plate bolt (Item 1, Figure 4–28) using a 9/16” wrench
9. Remove lock plate (Item 2, Figure 4-28)
10. Loosen track tension by rotating the tension bolt (Item 3, Figure 4–28)
CLOCKWISE using a 1 5/8” wrench.
NOTE: On recent models, the track tension wrench is located under the
removable service access cover.
2
3
