Routine Service and Maintenance
4.29
13. Insert the drive sprocket (Item 1, Figure 4–31) into rear of the track (Item 2,
Figure 4–31), between the track lugs and with the sprocket teeth in the track
sprocket holes.

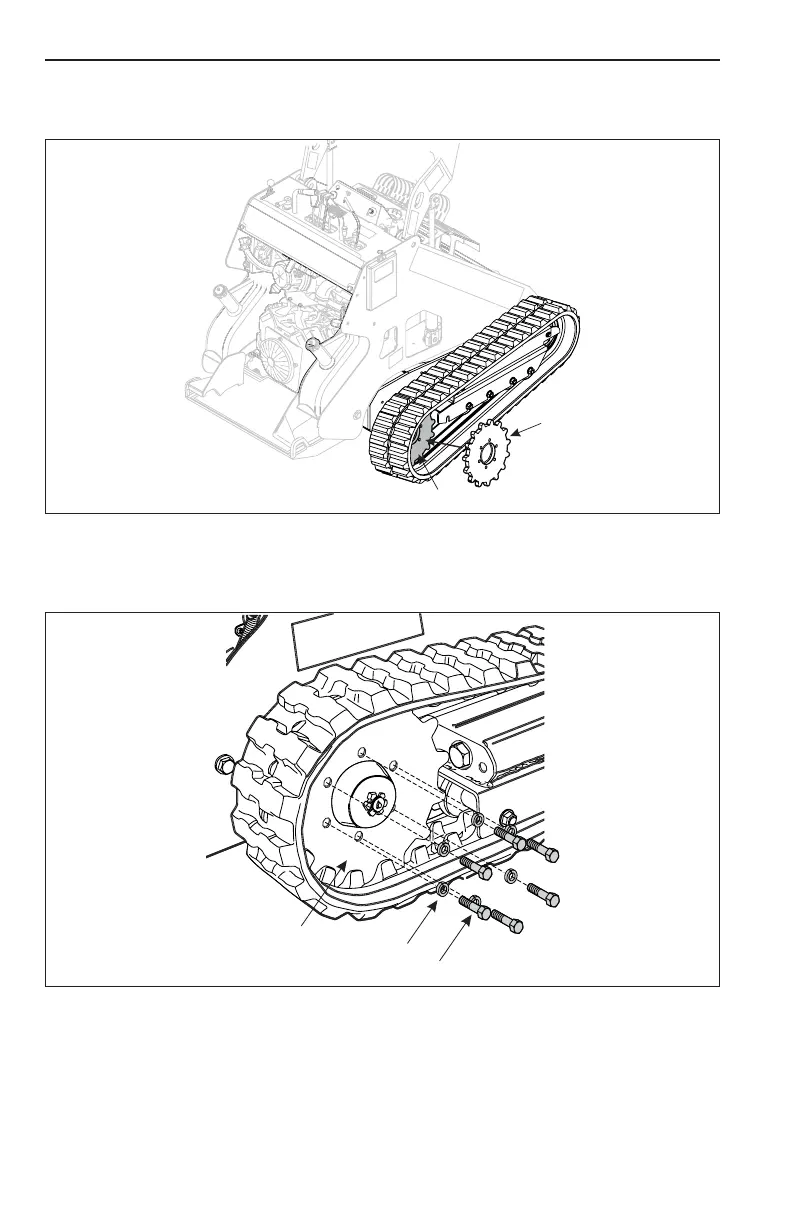

Figure 4-31 Insert Drive Sprocket into Track
14. Position the drive sprocket and the track onto the drive motor.
15. Rotate the drive sprocket (Item 1, Figure 4–32) and track to align the bolt holes.
Figure 4-32 Install Track and Drive Sprocket
16. Install and secure the 6 drive sprocket lock washers (Item 2, Figure 4–32) and
mounting bolts (Item 3, Figure 4–32).
2
1
1
2
