Morbark TORNADO 13 - Cooling System Components; Cooling System Component Parts List

*REFER TO CHECK SHEET FIRST
1/99
9
5

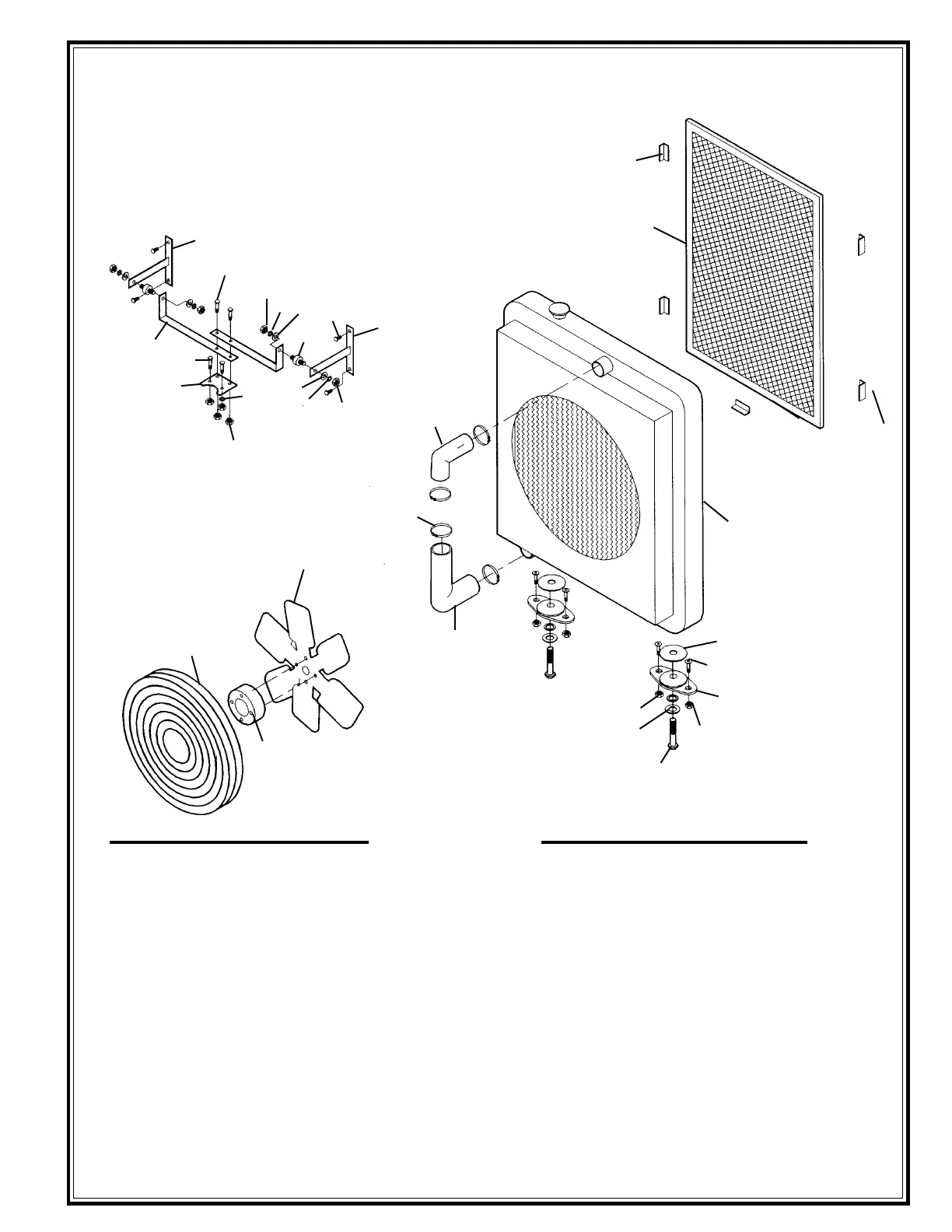

COOLING SYSTEM COMPONENTS
CATERPILLAR 3054T
ENGINE P/N 29247-204 & 29247-208
15
7
5
6
8
1
3
9
10
11
12
13
14
2
4
30
29
28
19
20 21
22
17
18
19
27
26
25
24
20
21
16
1
ITEM QTY. DESCRIPTION
1 1 Fan Guard
2 1 Fan Spacer
3 1 Sucker Fan
4 1 Lower Radiator Hose
5 1 Upper Radiator Hose
6 4 Hose Clamp
7 1 Radiator
8 2 Washer
9 4 Flat Head SSS
10 2 Shock Mount
11 4 Nut
12 2 Spacer
13 2 Washer
14 1 Bolt
15 1 Screen
ITEM QTY. DESCRIPTION
16 5 Screen Mount
17 1 R.H. "L" Bracket
18 4 Bolt
19 4 Nut
20 4 Lockwasher
21 4 Flat Washer
22 2 Radiator Isolators (Top)
23 1 R.H. Tee Bracket
24 2 Nut
25 1 Spacer
26 1 Mounting Bracket
27 2 Bolt
28 2 Bolt
29 1 L.H. Tee Bracket
30 1 L.H. "L" Bracket
38
