Morco EUP11RS - Components and Diagrams

7
COMPONENTS AND DIAGRAMS
Water heater components
Hydraulic circuit

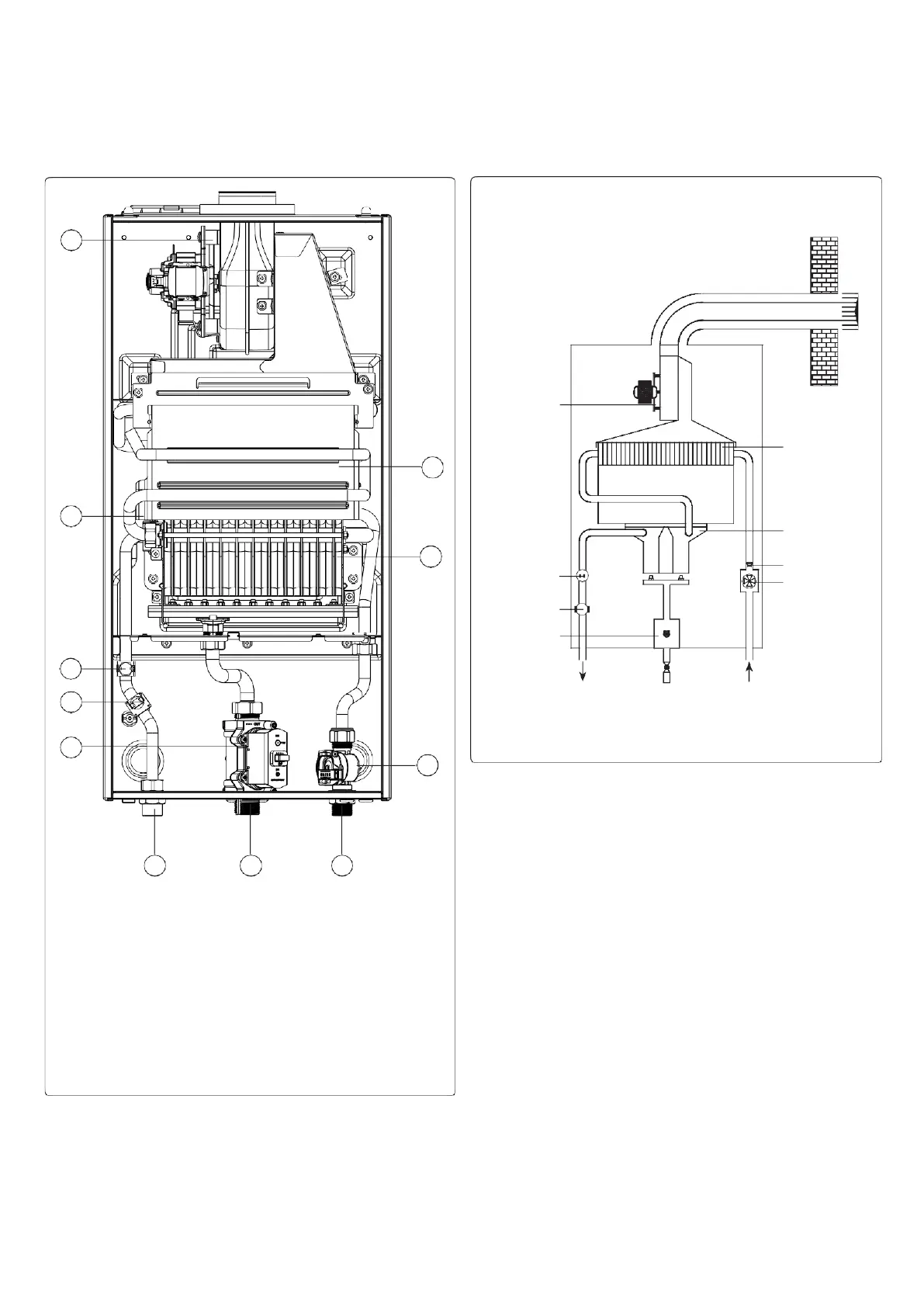

Fig. 4 - Water heater components
Fig. 5 - Hydraulic circuit
5
Fan
Heat exchanger
6
4
7
Thermistor
Hi-
Limit Stat
Gas valve
Burner
Flow turbine
Hot Water Outlet
Gas Inlet
Cold Water Inlet
3
2
1
8
11 10 9
Legend
1. Gas valve
2. Hi-Limit Stat
3. Thermistor
4. Ignition/detection electrode
5. Fan
6. Heat exchanger
7. Burner
8. Flow turbine
9. Cold Water Inlet
10. Gas Inlet
11. Hot Water Outlet
Flow Regulator
