Morgan Schaffer Calisto - Figure 14: Tee Fitting Assembly for the Precision Oil Temperature Probe Option

29

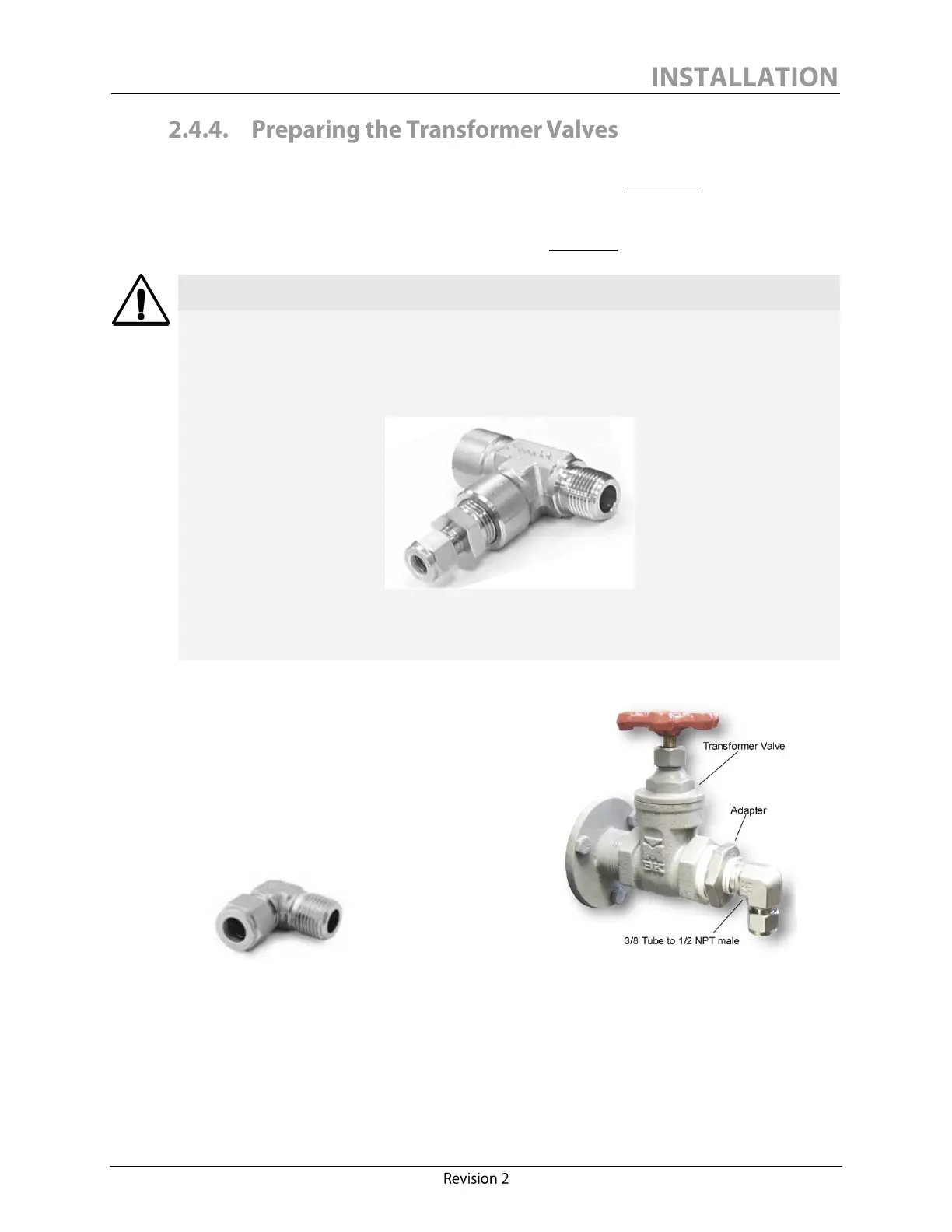

Prior to installing the oil lines, both transformer valves selected to circulate oil to the monitor must
be prepared to accept the tube fittings included in the accessories. Figure 15 shows one of the
supplied brass elbow fittings 3/8″ tube to ½″ NPT male (stainless steel 316 if stainless steel flexible
oil lines were ordered with the monitor). If required, use a pipe adapter to fit the ½″ NPT male end
to the transformer SUPPLY and RETURN valves (Refer to Figure 16).
Figure 15: Transformer Valve Elbow Fitting
Figure 16: Adapting the Transformer Valve
CAUTION
If a Precision Oil Temperature Probe is to be installed with the monitor, a provided tee
fitting must be installed instead of an elbow on the oil SUPPLY valve. Refer to the
Precision Oil Temperature Probe Installation Manual.
Figure 14: Tee Fitting Assembly for the Precision Oil Temperature Probe Option
