MORTEX G18D SERIES - A;C Ready Wiring Diagram

MORTEX PRODUCTS INC 501 TERMINAL RD FORT WORTH, TX 76106 Page 28

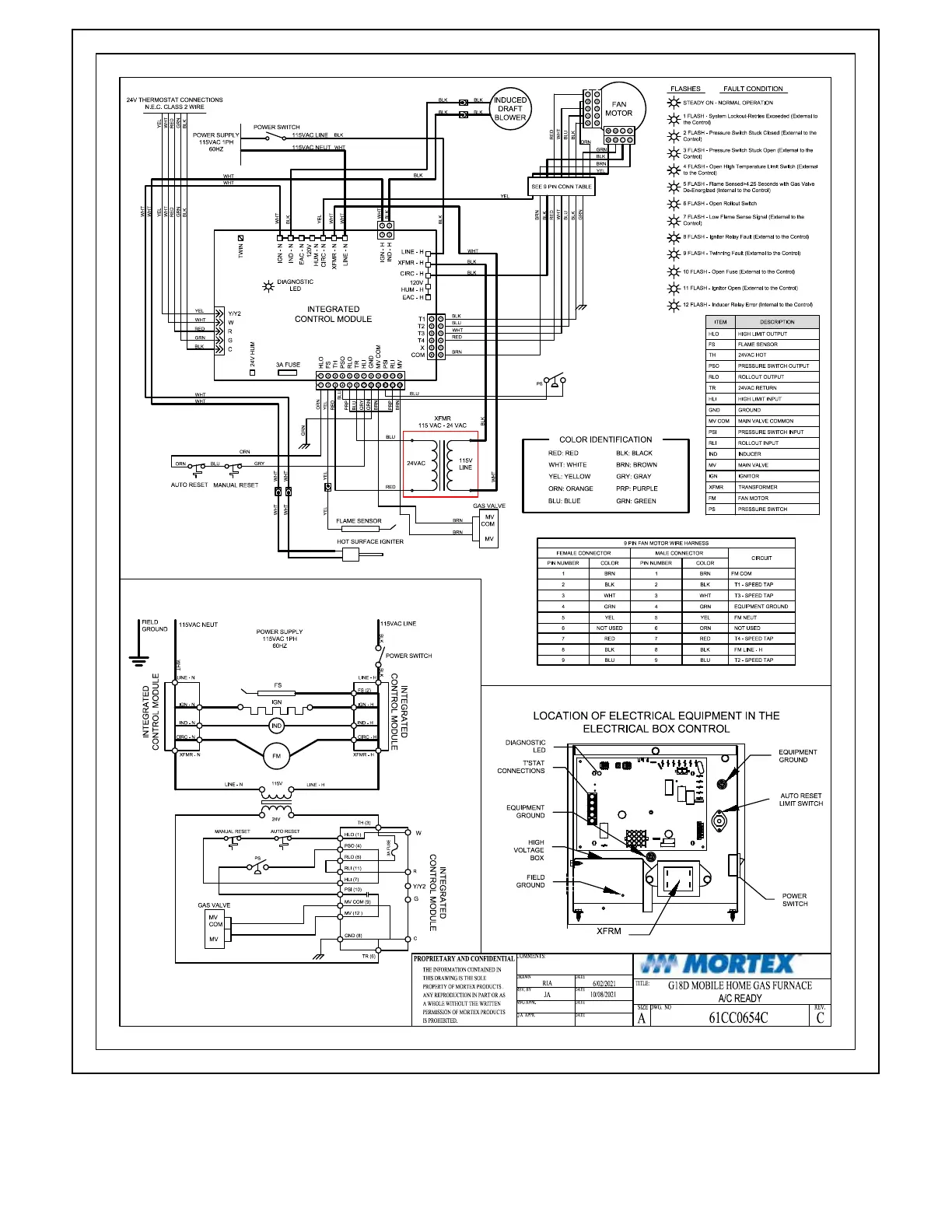

Figure 23: Wiring Diagram – A/C Ready Models
NOTE: If any of the original wires supplied with this furnace must be replaced, replace with Type 105°C thermoplastic or
equivalent wire.
