WIRING AND BATTERY INFORMATION
eng 11
Battery Connection
!
CAUTION
Disconnecting or connecting the battery cables in the incorrect order
can cause injury from electrical shock or can damage the electrical
system. Always disconnect the negative (‑) battery cable first and
connect it last.

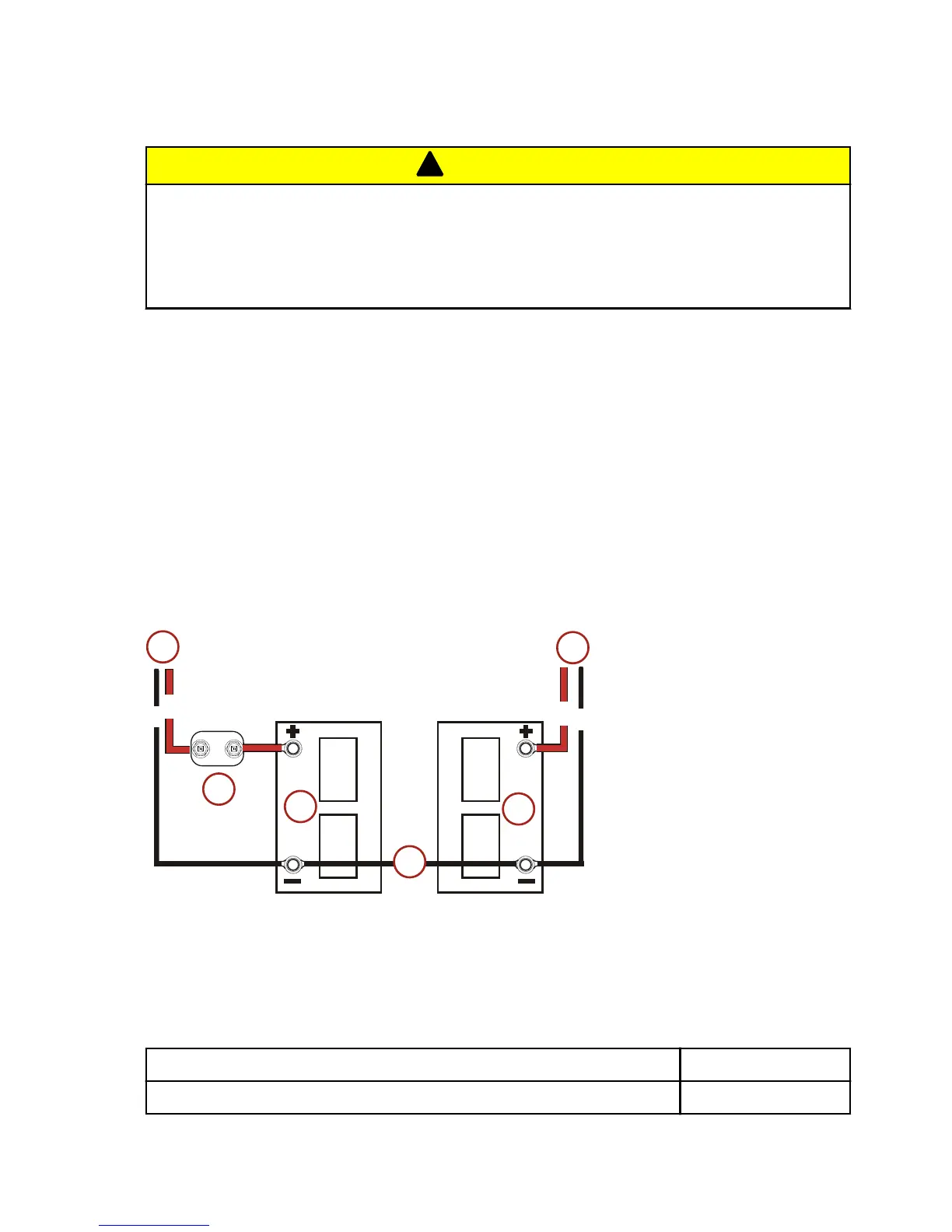

12-VOLT BATTERY CONNECTION
1. Install a 50 amp manual reset circuit breaker in line with the
trolling motor power cable positive (+) lead and the battery
positive (+) terminal. Connect the trolling motor positive lead to
the trolling motor battery positive (+) terminal.
2. Connect the black trolling motor power cable negative (–) lead to
the trolling motor battery negative (–) terminal.
3. Connect a common ground bond from the trolling motor battery
negative (–) terminal to the engine starting battery negative (–)
terminal.
a - Power cables to
trolling motor
b - 50 amp manual
reset circuit
breaker
c - Trolling motor
battery
d - Engine starting
battery
e - Power cables to
engine
f - Common ground
bond
Recommended MotorGuide Accessory Description
Part Number
50 amp manual reset breaker MM5870
