MAINTENANCE
22 eng

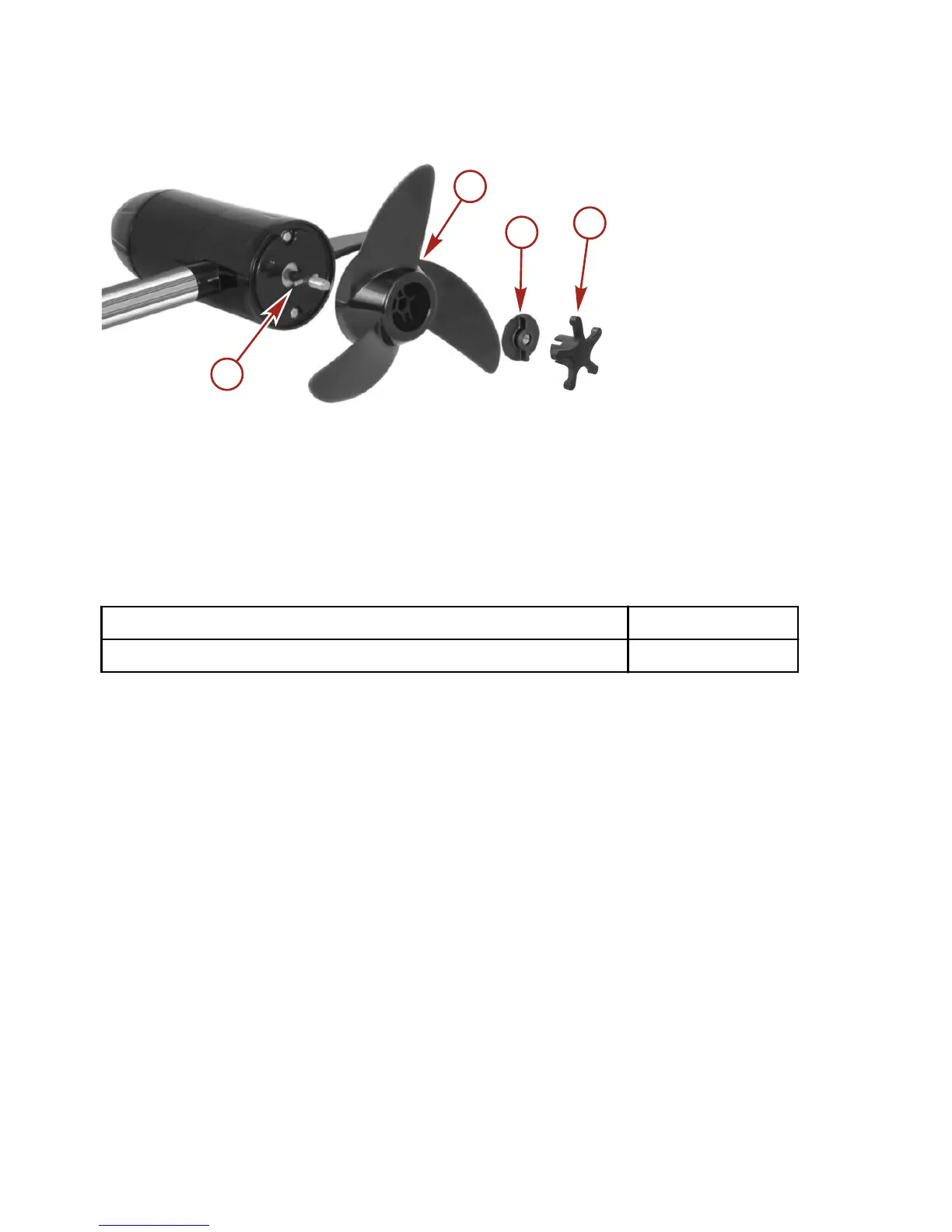

NOTE: If the propeller pin is bent, replace the propeller pin.
a - Propeller pin
b - Propeller
c - Propeller nut
d - Prop wrench
Recommended MotorGuide Accessory Description Part Number
MotorGuide Prop Wrench Kit MGA050B6
INSTALLING THE PROPELLER
1. Rotate the motor shaft to insert the propeller pin horizontally.
2. Install the propeller onto the motor shaft by engaging the
propeller onto the propeller pin.
3. Install the propeller nut. Tighten securely.
4. Use the propeller wrench to tighten the propeller nut another ¼
turn.
MotorGuide Accessories Inquiries
Refer to www.motorguide.com for factory authorized accessories for
all MotorGuide trolling motors.
