Motorola AP-5131 Access Point Quick Setup Guide
11. Click on “Apply” after selecting the encryption type and entering the key.
12. When the WEB UI Disconnection Warning appears, select “OK”. See figure 8.
13. Set the Security Policy to “scales” using the drop down menu on the Quick Setup
window. See figure 12.

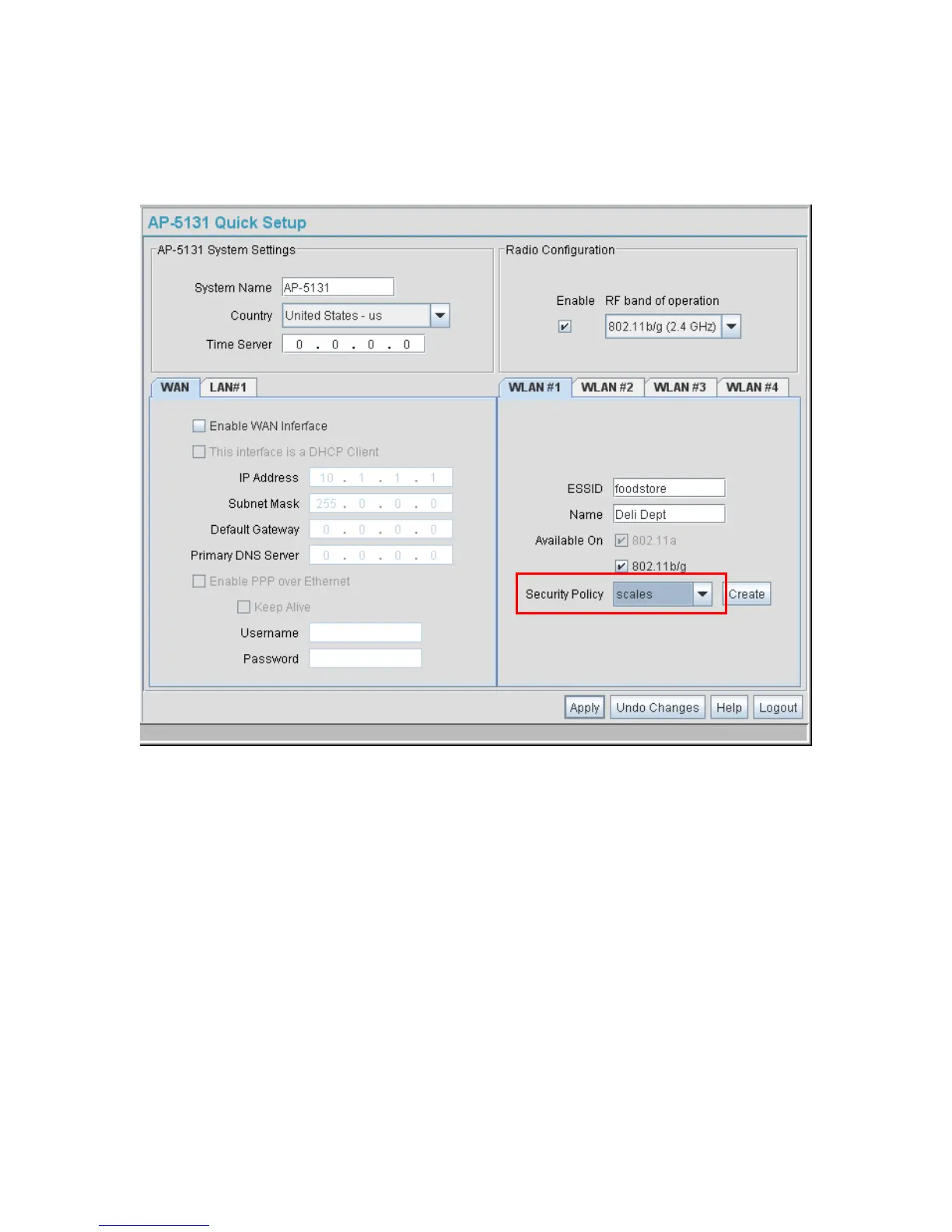

Figure 12. Set Security Policy to “scales”
14. Click on “Apply”
15. When the WEB UI Disconnection Warning appears, select “OK”. See figure 8.
16. Close Internet Explorer.
17. Setup with Encryption is complete.
Rev 1, February 2009 (9) Motorola_AP5131_Quick_Setup
