Motorola AP-5131 Access Point Quick Setup Guide

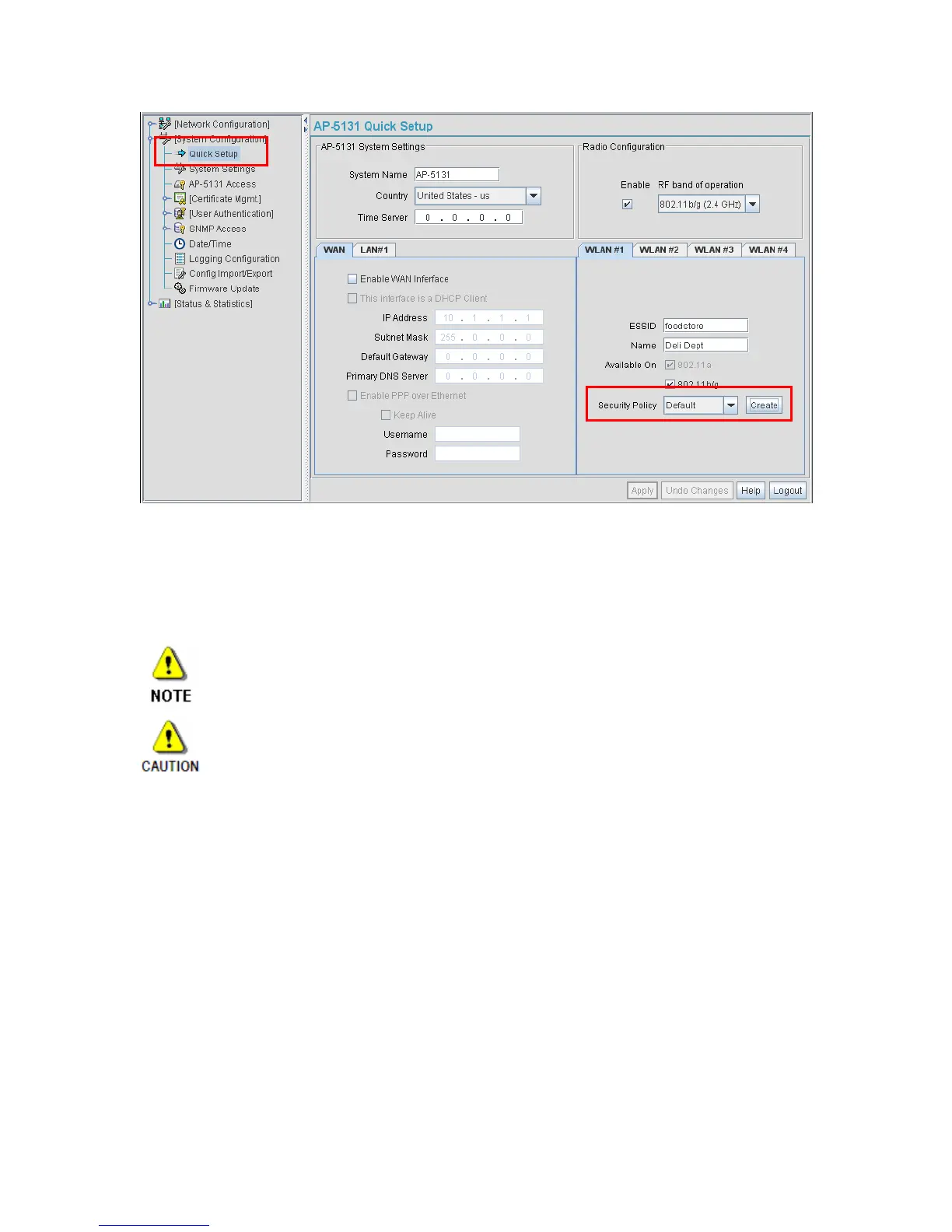

Figure 9. AP-5131 Quick Setup Screen
7. On the New Security Policy screen enter the new Name. For the new name use
“scales”. (lower case).
8. On the left side of the screen choose the encryption method to be used.
The AC-4000, BC4000, and OMNi-4000 support both WEP and WPA.
The SR-2000a, IL-2000sa, and IL-EMZ support only WEP.
Use extreme care when entering the encryption key. An incorrect key will
prevent communication with the wireless scale(s) in the network.
9. Choose the encryption type and enter the key as designated by the encryption
selection. (See Appendix 1 for information on WPA encryption).
10. Leave “Pass Key” blank
• WEP 64 (40 bit key) See figure 10.
For Key #1 enter 10 hexadecimal characters
Example: 12345abcde
Rev 1, February 2009 (7) Motorola_AP5131_Quick_Setup
