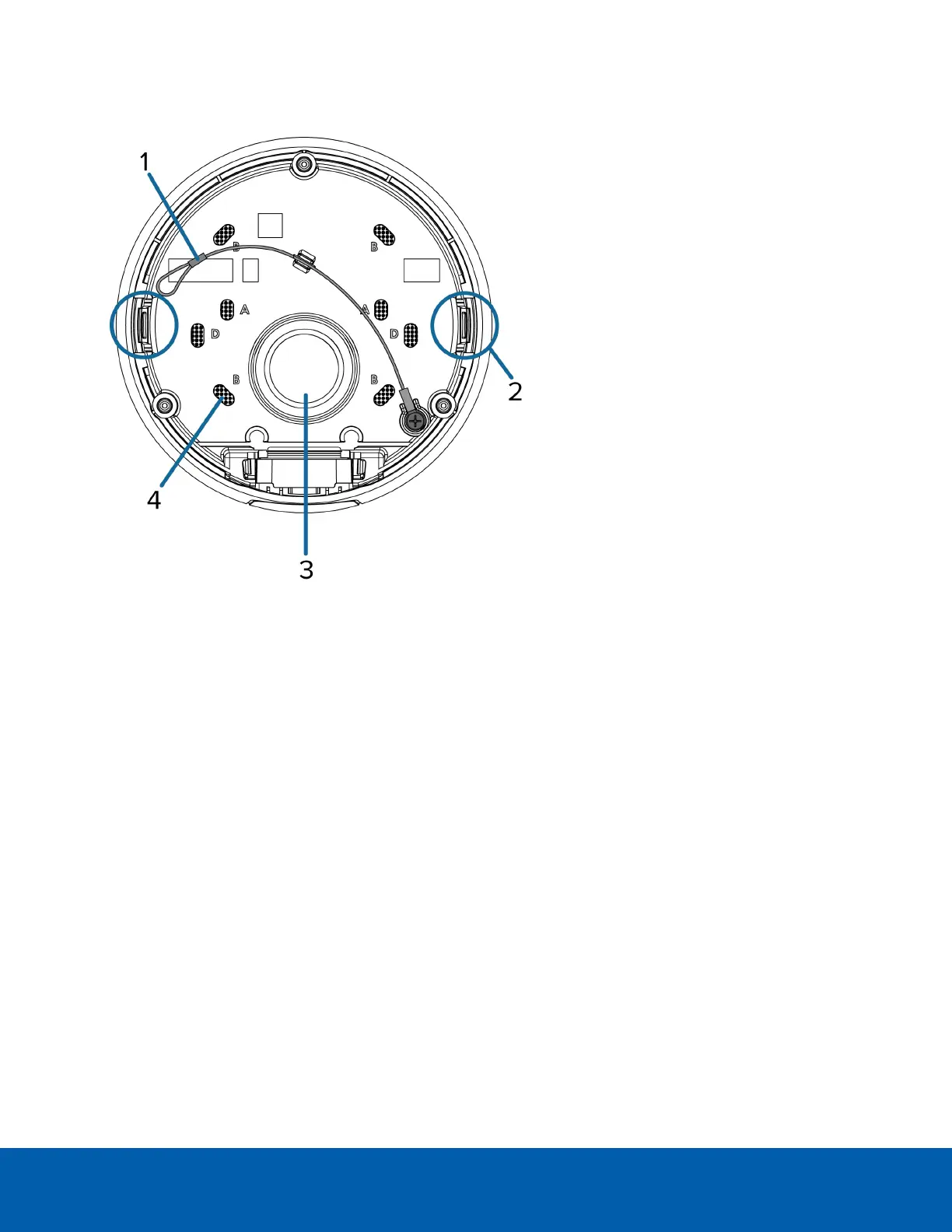

Mounting Adapter View, Surface Mount
1.
Lanyard
Connects to the lanyard anchor on the camera base.
2.
Camera housing clips
Snaps to hold camera module during installation.
3.
Cable entry hole
An entry hole for the cables required for camera operation.
4.
Mounting holes
Holes for mounting the adapter to the following:
A — UK standard single gang box
B — Octagon gang box
D — US standard single gang box
Mounting Adapter View, Surface Mount 5
