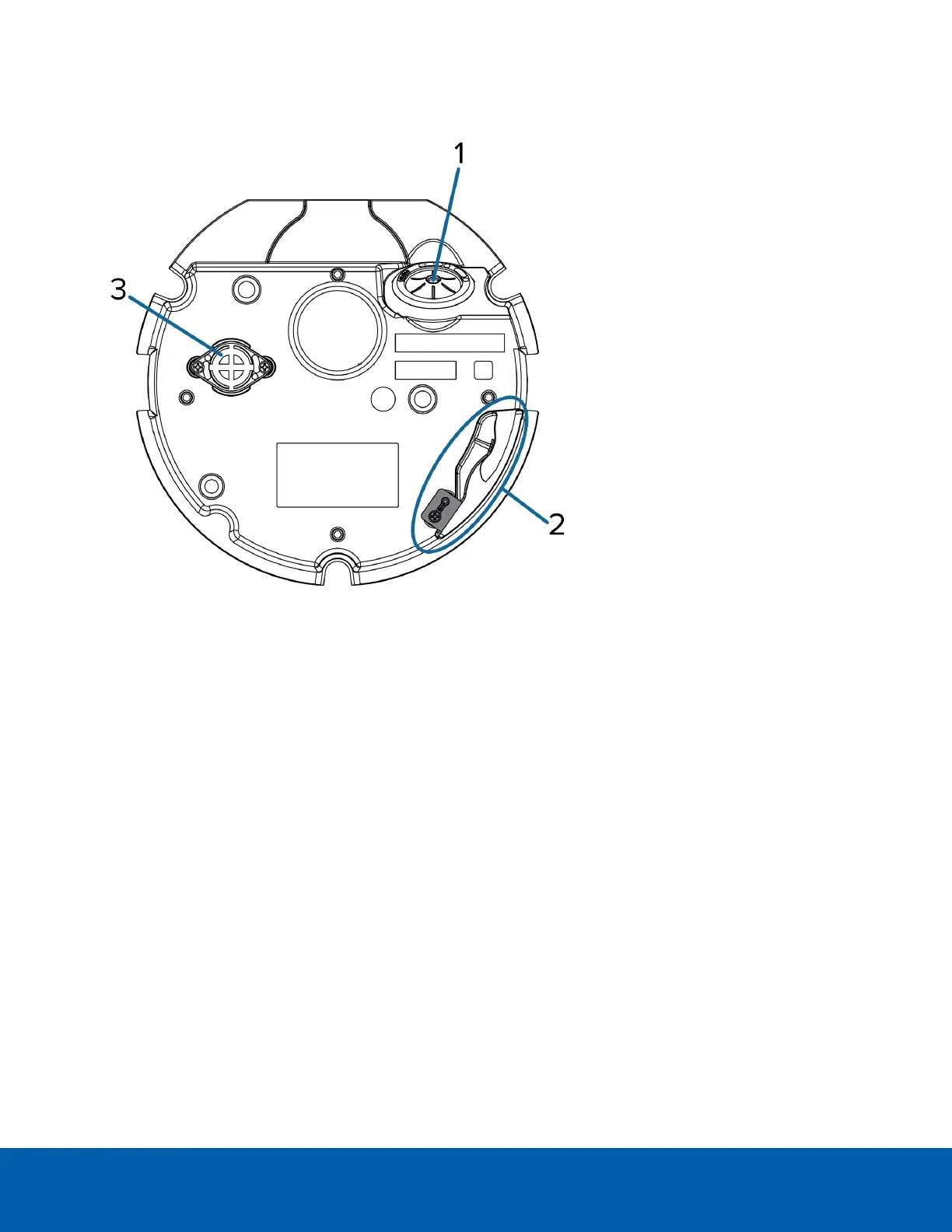

Camera Base Bottom View
1.
Cable entry hole
An entry hole for the cables required for camera operation.
2.
Lanyard anchor
The safety lanyard attaches to the anchor to prevent the camera from falling during installation.
3.
Vent
Vent to allow moisture vapor to escape the sealed housing and equalize pressure.
Only available on H5SL-DO models.
Camera Base Bottom View 3
