Level 1 and 2 Service Manual Disassembly
Removing and Replacing the Keypad
1. Remove the rear housing cover, SIM, and endo assembly as described in the
procedures.
2. Use the disassembly tool to lift the keypad up and away from the front housing
as shown in Figure 14.
3. To replace, insert the keypad into the front housing. Ensure the keys align
properly with the openings and the keypad is fully seated in the front housing.
4. Replace the endo assembly, SIM, battery, and rear housing cover, as described
in the procedures.
021033o

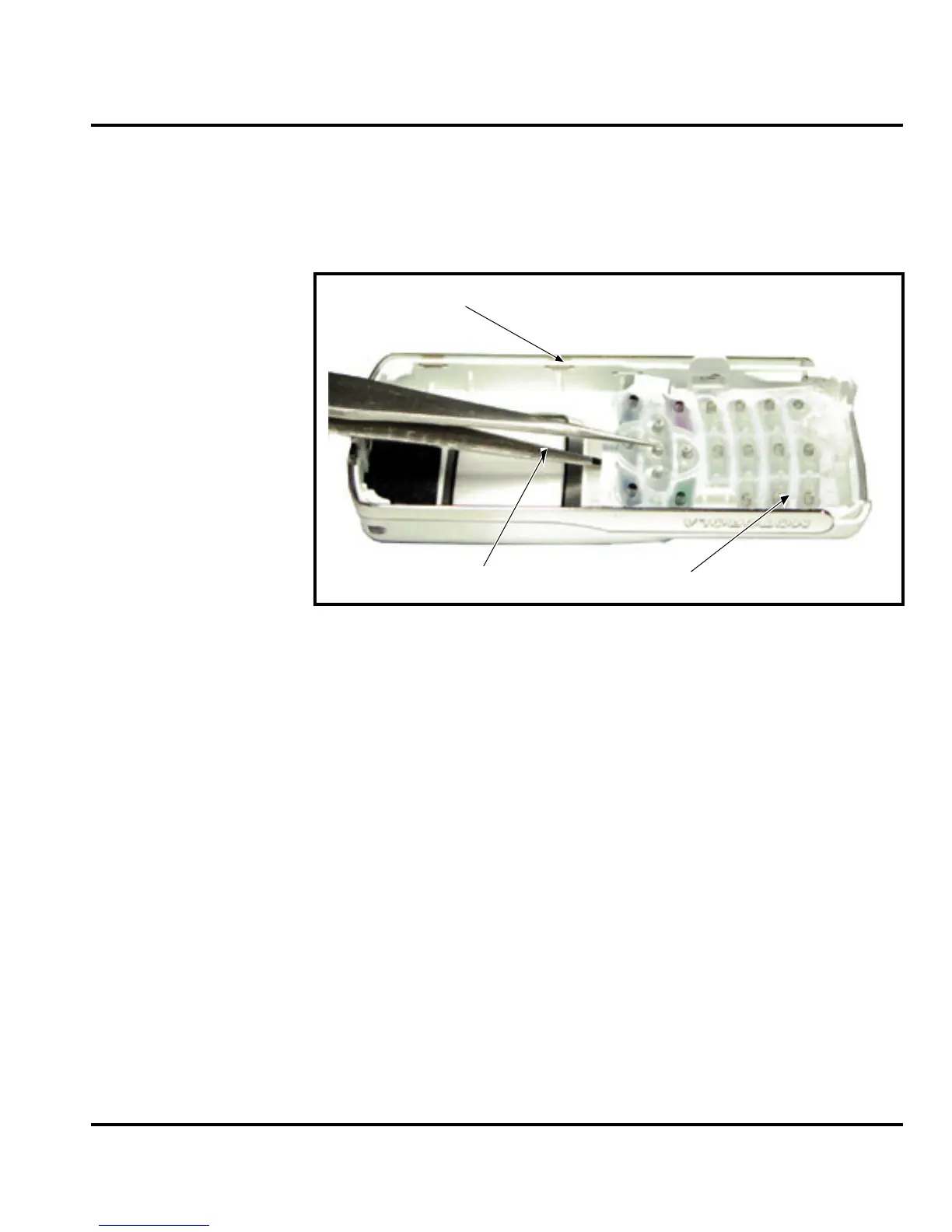

Figure 14. Removing the Keypad
KEYPAD
TWEEZERS
FRONT HOUSING
