5-2 RADIO TUNING AND PROGRAMMING
2.1 Initial Test Equipment Setup
The supply voltage is connected to the radio using a Motorola battery eliminator, P/N 0180305G54.
The initial test equipment control settings are listed in Chapter 4.
3.0 CPS Programming Setup

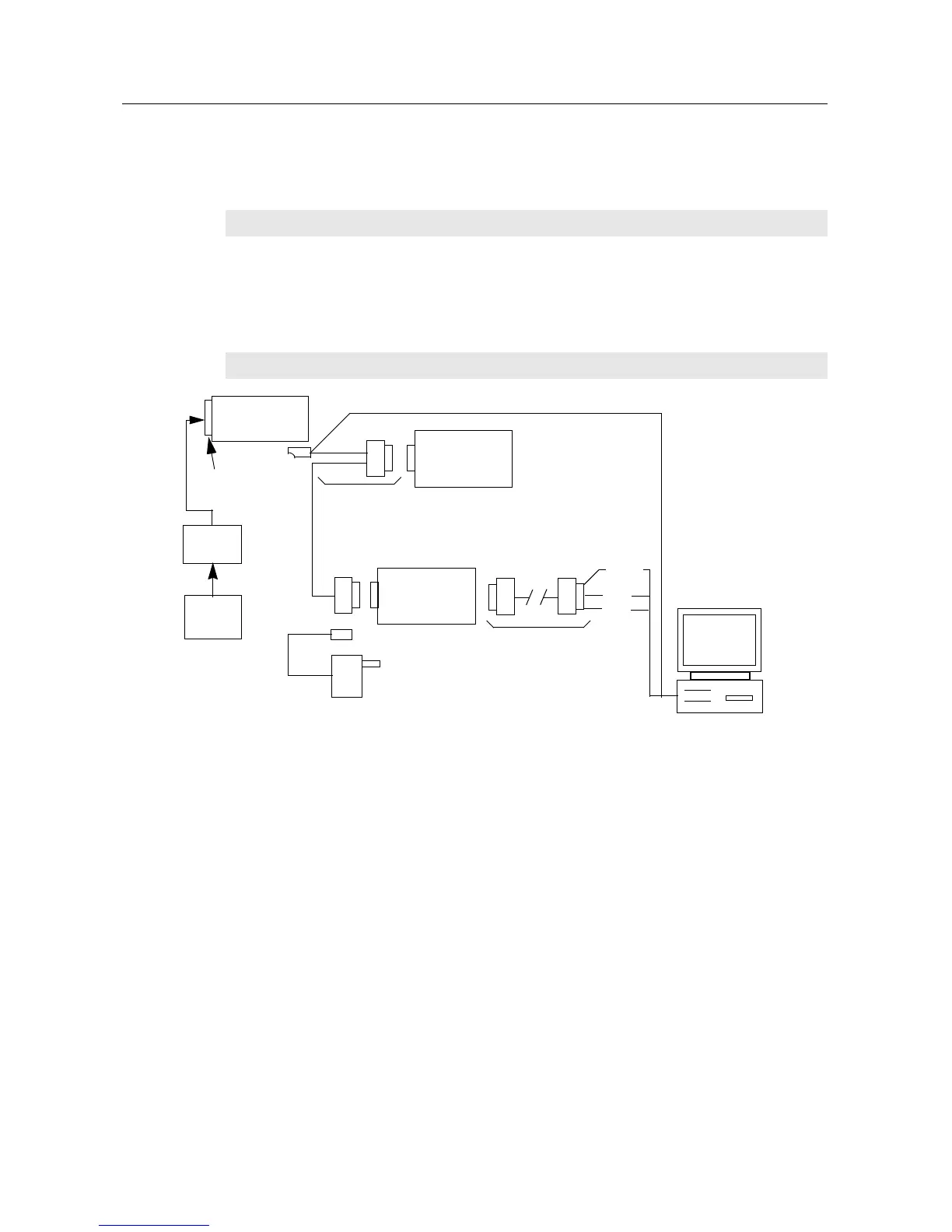

The CPS programming setup, shown in Figure 5-2, is used to program the radio codeplug.
Figure 5-2 CPS Programming Setup
NOTE
Refer to appropriate program on-line help files for the tuning procedures.
NOTE
Refer to appropriate program on-line help files for the codeplug programming procedures.
RIB
RLN4008
RIB Power Supply
RLN4460
Test Box
Rx
Gnd
Data
Tx Data
Radio
Battery
Computer Interface
Cable
Program/
RKN4074
Test Cable
3080369B72
DB15
DB9
120/230 Vac
Power
Supply
RLN4510
+12VDC
Battery
Eliminator
7.5V Reg.
Block
0180305G54
Ribless
Programming
Cable RKN4075
To Next Page
