11
Installing the Handsfree Kit
For optimal Bluetooth
®
performance, mount the electronic
module in a central location within the vehicle. Do not
place it behind or within large areas of metal.
The location of the electronic module MUST NOT interfere
with deployment of the vehicles air bags. Do NOT locate
the electronic module in the vehicle’s trunk (boot).
Installing the Interface Cable
Caution:
Failure to follow the steps below may cause the
accessory not to work properly and may cause damage to
the car kit.
The interface cable has integral fuses on the power lines
(VBatt and Ign).
Note:
See “Power Connections” on page 45 for more
information.
IHF1000
Module
Interface
Cable
User Interface Module
(UIM)
32-pin
12-pin
2-pin
2-pin
Speaker
Microphone
Radio
FUSE
FUSE

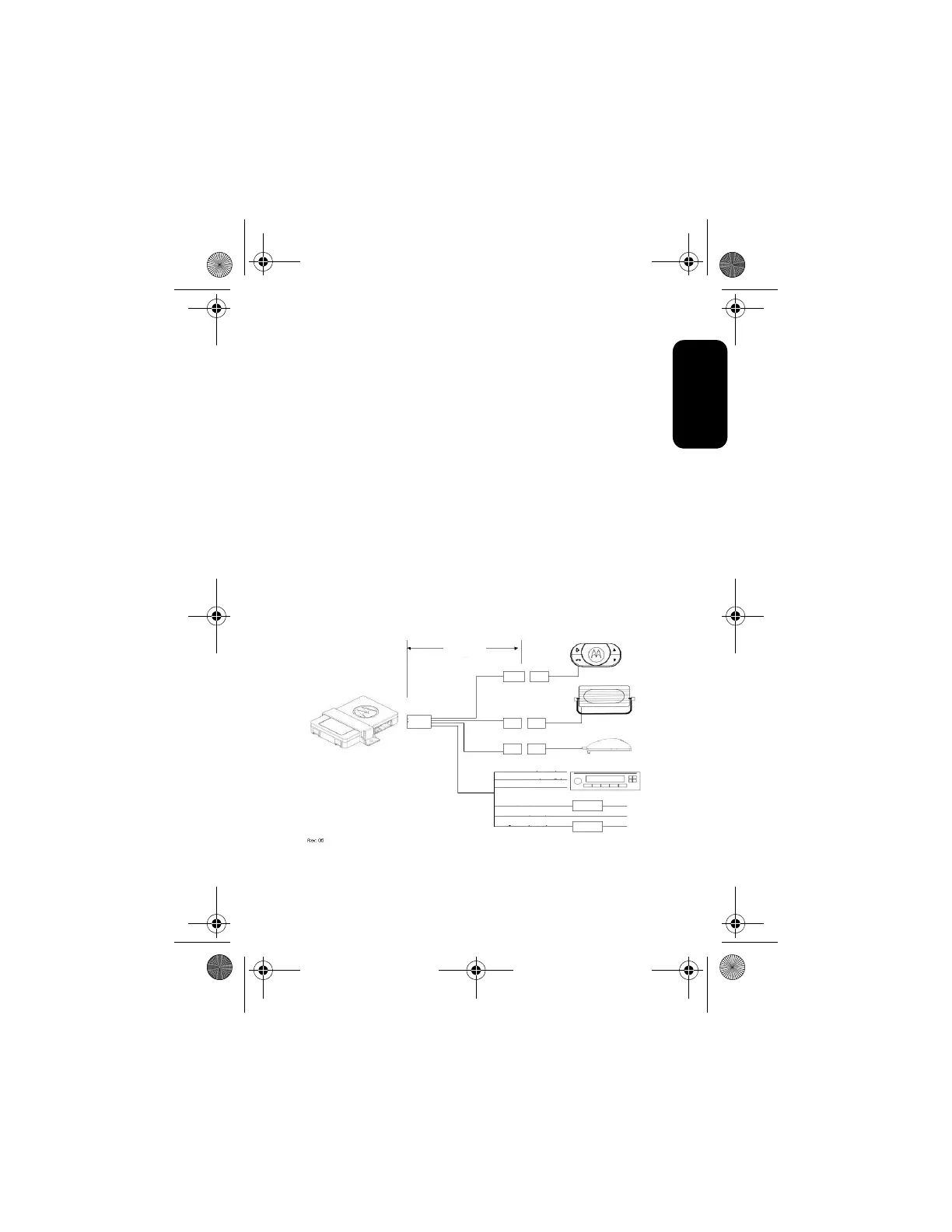

IHF1000 System Diagram
* If Supported in Vehicle
Radio Mute (Yellow)*
Line Audio + (Orange)*
Line Audio - (Blue)*
VBATT (Red)
Ground (Black)
Ignition (Green)
BTHandsfree_multi.book Page 11 Tuesday, July 12, 2005 8:46 AM
