OVERVIEW: iDEN Digital Modulation Technology
1-2 68P80400P73-A

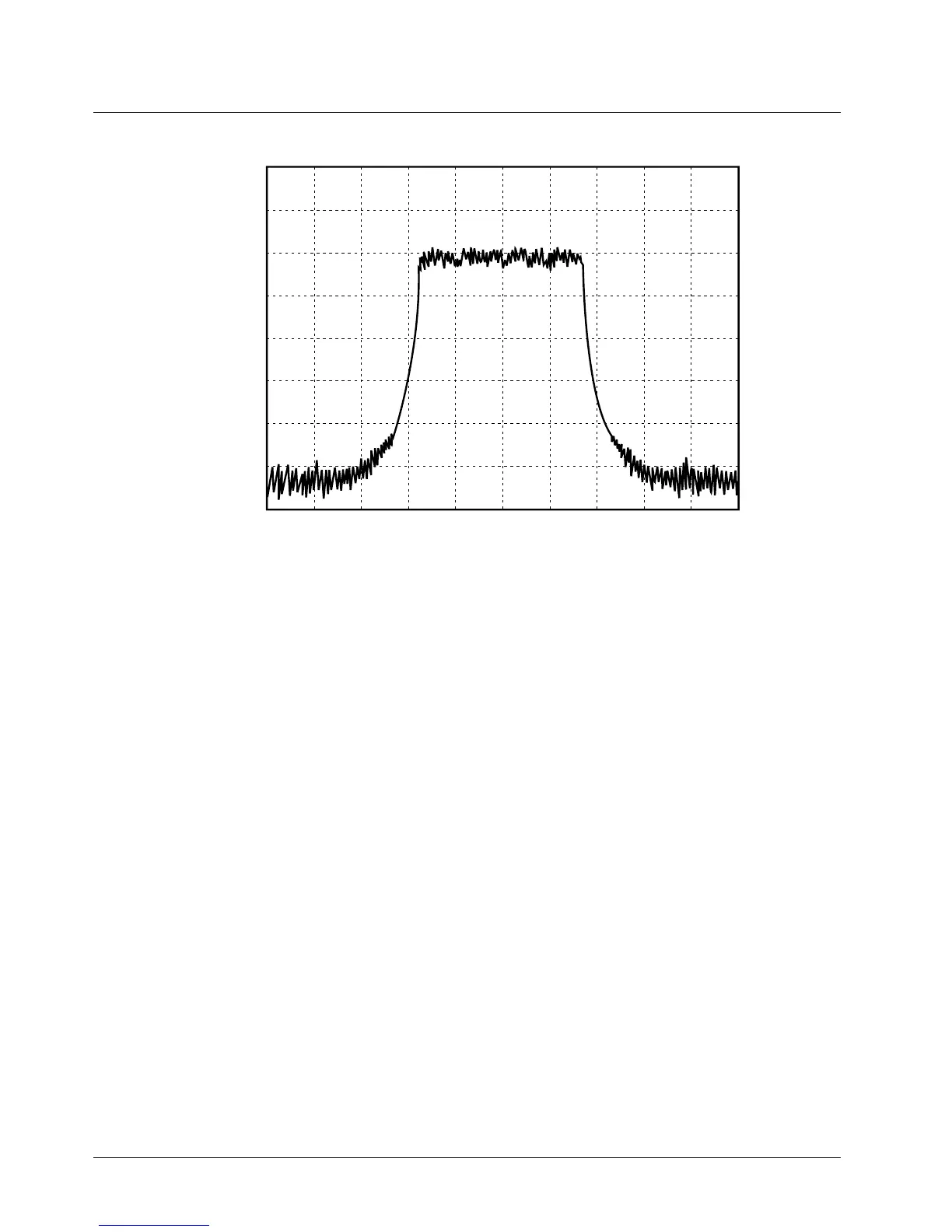

Figure 1-1. Spectrum of iDEN Quad 16QAM
Quadrature Phase Shift Keying (QPSK) is one of the most common modulation techniques for
satellite communications. In QPSK, a digital data stream is taken two bits at a time to generate four
possible phase states of the transmitted carrier. A characteristic of this technique is its resistance to
noise.
Time Division Multiple Access (TDMA) is used to allocate portions of the RF signal by dividing
time into 6 slots, one for each unit. Time allocation enables each unit to transmit its voice
information without interference from another unit’s transmission.
Transmission from a unit or base station is accommodated in time-slot lengths of 15 milliseconds
and frame lengths of 90 milliseconds (see Figure 1-2).
Note that Rx (outbound) indicates base-to subscriber transmissions; Tx (inbound) indicates
subscriber-to-base transmissions. The slots are paired and have a fixed offset of 19 milliseconds;
their timings are synchronized by the iDEN system. The TDMA technique requires sophisticated
0-10-20 10 20
Frequency from Desired Channel Center
(kHz)
RL 0dBm 10 dB/
Power
(dB)
-10
-20
-30
-40
-50
-60
-70
