PREPARING FOR FIELD LEVEL TESTING: Battery Cover
7-6 68P80400P73-A
7.7 Battery Cover
7.7.1 Remove:

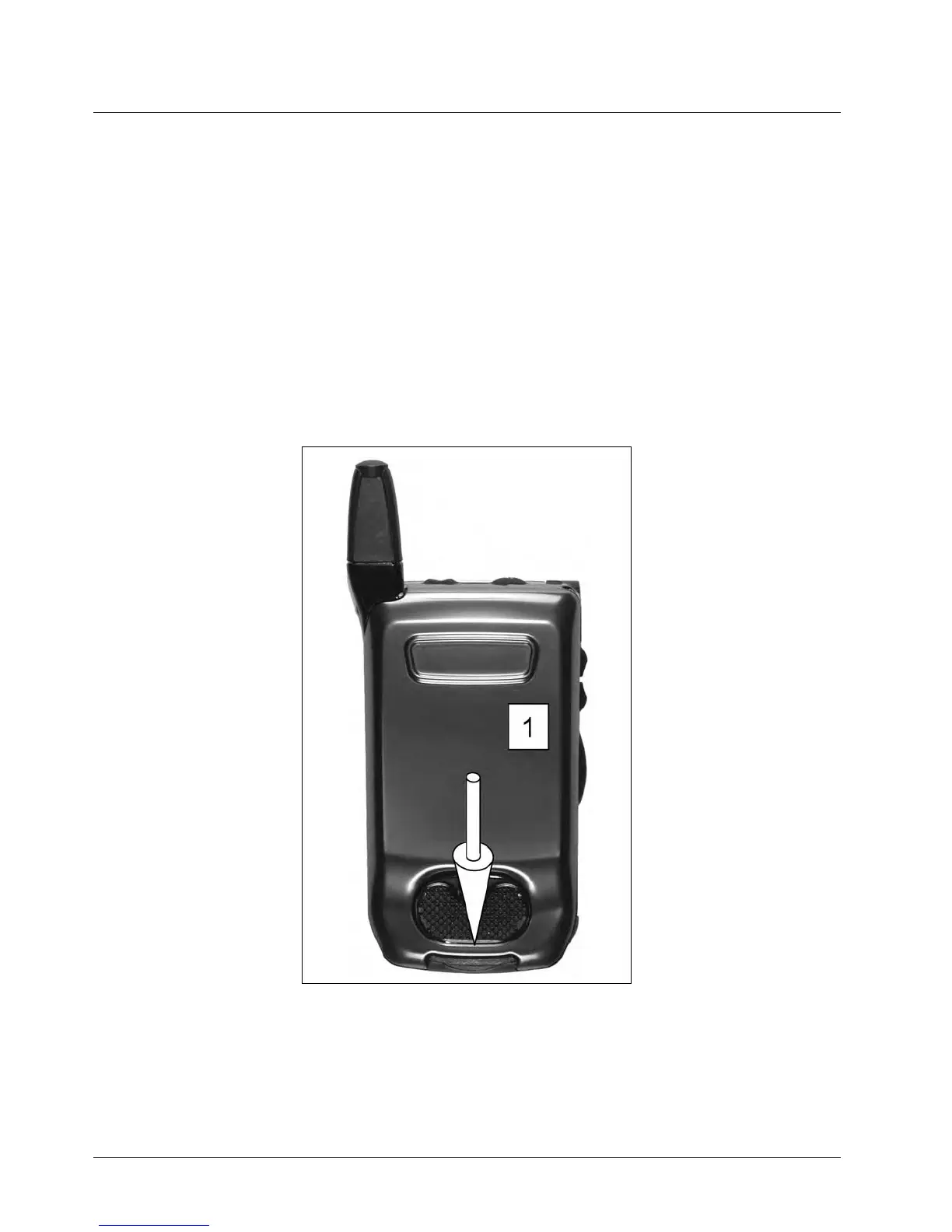

1. Place thumb or fingernail against release latch (see Figure 7-2).
2. Push button down until cover releases and pull cover away.
3. Push cover up to release from top clips.
7.7.2 Install:
1. Bring top clips of cover into their respective slots.
2. While keeping clips engaged, close cover until release latch fully snaps into place.
7.8 SIM Card
See SIM card removal and installation in Overview section or in the User’s Guide.
Figure 7-2.
