PREPARING FOR FIELD LEVEL TESTING: Back Housing
7-8 68P80400P73-A
7.10 Back Housing
Required Tools: T-6 Torx bit, black stick.
Preparation: Remove battery cover, extend antenna. Open audio jack seal and accessory
connector seal.
7.10.1 Remove:
1. Remove four T-6 screws—one in the antenna tube channel.
2. Gently separate the housing halves. Do not stress flex strip near PTT key. Remove audio jack
seal (see Figure 7-4).
3. Wedge black stick under flex pad to unseat speaker/vibe/coin/PTT/SB 20-pin flex connector
(see Figure 7-5).
NOTE: Do not touch flex contacts with fingers or dirty tools. Do not bend or crease the flex strip.
7.10.2 Install:
1. Reattach flex connector carefully without contamination.
2. Torque screws
to 1.2 in/lb +/- 0.1 in/lb (new & used plastics).

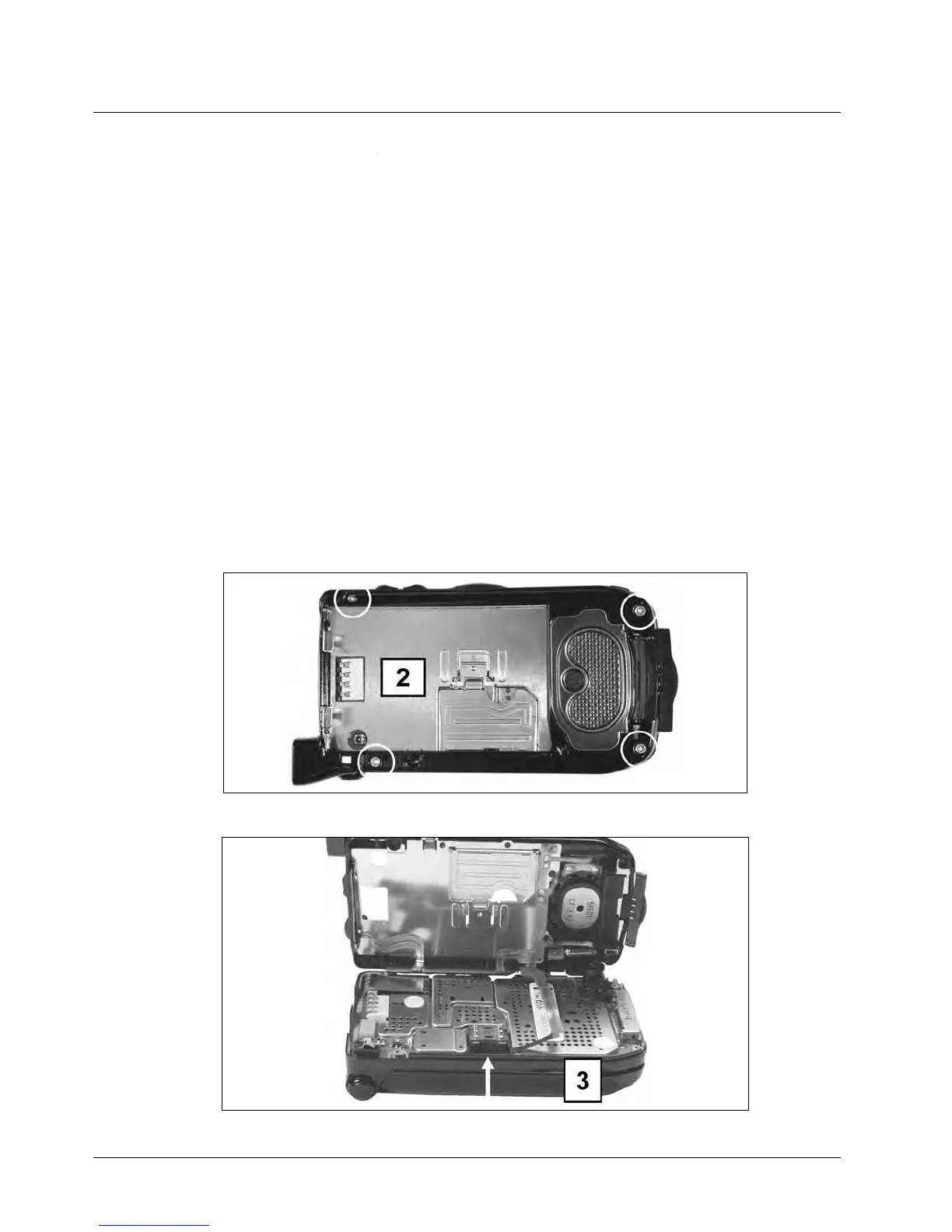

Figure 7-4.
Figure 7-5.
