NOTE: It is recommended to use a 10–16 x 1.5 inch. tapping screw and washer (not included)
on the wood stud and solid-flat concrete or brick wall.

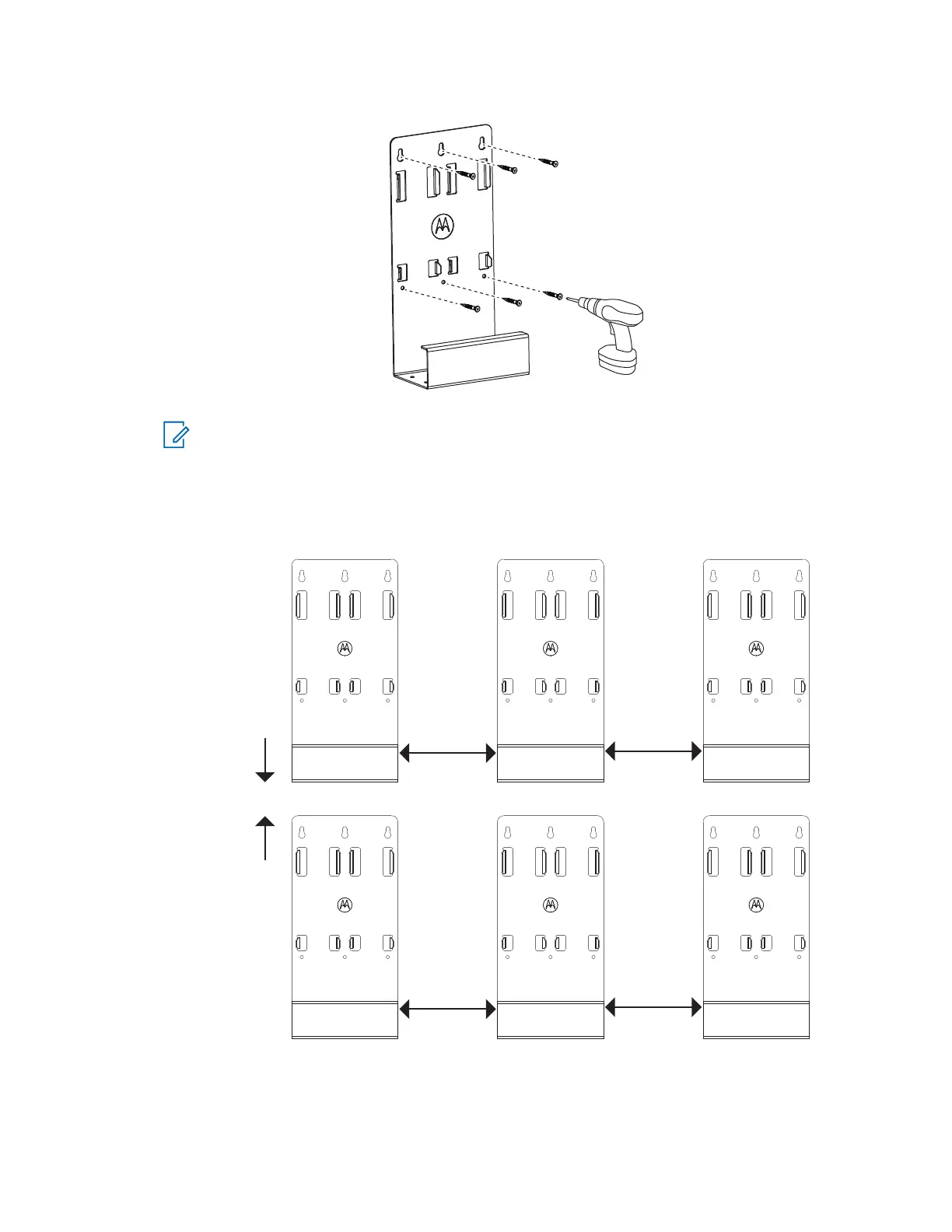

5. Mount any additional brackets with a minimum distance of 50 mm vertically and 140 mm horizontally
from each other
.
50 mm
140 mm
140 mm
140 mm
140 mm
