Installation

Wall Mounting

MC3000 Digital Deskset Operator and Installation Manual 2-23

(6880309L15-A)

5. Turn the deskset face-up and pry out the ‘hanger clip’.

6. Rotate and re-insert the ‘hanger clip’ so that the top edge will hook the handset in the

cradle when placed on the wall.

7. Place a #8 screw at the appropriate height on the wall leaving the head 1/4 inch from

flush to the wall.

8. Slide the deskset wall mount opening located at the top edge of the back housing,

over the screw.

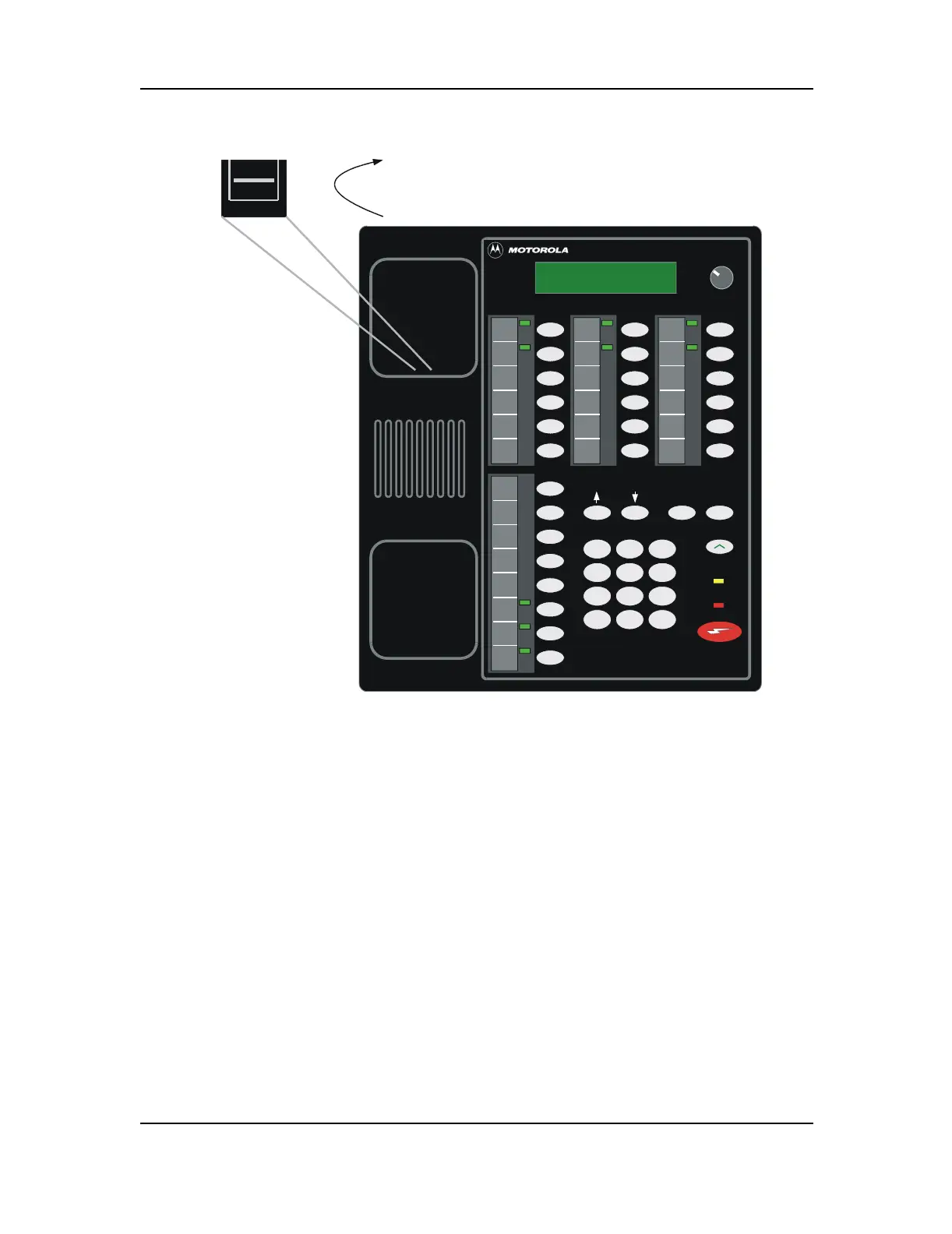

Figure 2-11: Hanger Clip - hook edge to the bottom

abc

def

ghi

jkl

mno

prs

tuv

wxy

Takeover

Intercom

Speaker

Volume

Sel

Menu/Home

TWO LINE

x 20

MC3000

Busy

Transmit

Rotatate Clip 180

Re-insert
