Magnetic Stripe Reader
Exit Window
OPTIMUM SCANNING AND IMAGING
ERGONOMIC CONSIDERATIONSACCESSORIESBATTERY REMOVAL
Laser Scanning
Scanning/Imaging
AVOID EXTREME
WRIST ANGLES
DATA CAPTURE OPTIONS
GPS Information
Screen Protector
Zebra recommends the use of a screen protector to
minimize wear and tear. Screen protectors enhance
the usability and durability of touch screen
displays. Benefits include:
• Protection from scratches and gouges
• Durable writing and touch surface
with tactile feel
• Abrasion and chemical resistance
• Glare reduction
• Keeping the device’s screen looking
like new
• Quick and easy installation.
An initial screen protector is already applied to your MC9500-K. Contact your
local account manager or Zebra for more information and purchasing details.
Part number: KT-122010-01R Screen Protector 3/pk.
Not using a screen protector can affect your warranty coverage.
MC9500-K

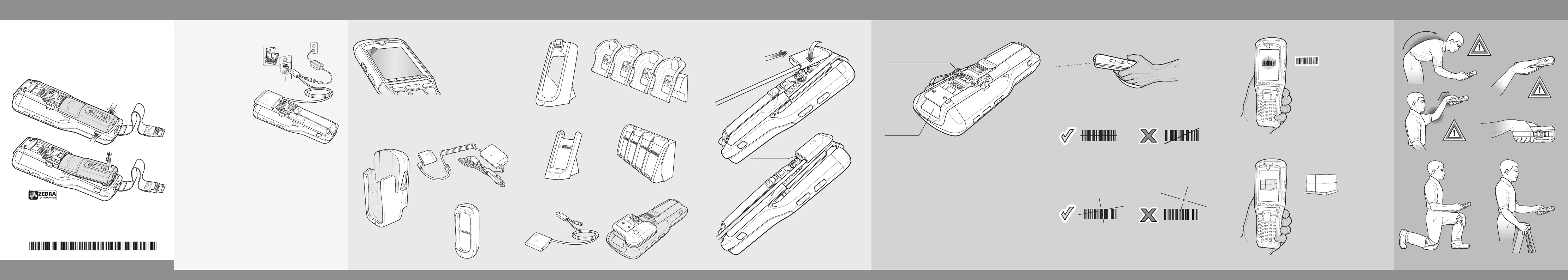

Quick Start Guide
Imaging
Zebra and the Zebra head graphic are registered trademarks of ZIH Corp. The Symbol logo is
a registered trademark of Symbol Technologies, Inc., a Zebra Technologies company.
© 2015 Symbol Technologies, Inc.
72-118504-06 Rev. A
—
February 2015
• Acquiring satellite signals may take a few minutes. It is best to be
outside and have a clear, unobstructed view of the sky.
• Obtain a satellite fix before moving.
• Shutdown GPS application when not in use.
Camera Lens
When using the GPS feature of the MC9500-K:
Laser scanner or Imager
Camera Decode
Camera Photo
1. Launch a bar code reading application on
the MC9500-K.
2. Position the MC9500-K toward the bar
code.
3. Press the Scan button.
4. In the image window align the red
target over the bar code. When the
MC9500-K decodes the bar code the
target turns green.
5. Release the Scan button.
1. Tap Start > Programs > Pictures &
Videos > Camera.
2. Point the MC9500-K at an object.
3. Press the Enter button.
4. Hold MC9500-K still until “Shutter
Sound” is heard.
CABLE CONNECTION
Single Bay USB Cradle
USB/Charging Cable
Four Bay Charge Only Cradle
Four Slot Battery ChargerSingle Slot Battery Charger
Vehicle Cradle
Auto-Charge Cable
Vehicle Battery Charger
AVOID BENDING
AVOID REACHING
Taking breaks and task rotation recommended
High Scanning
Use a ladder
Low Scanning
Create a Partnership
3
4
Install ActiveSync
®
1
Communicate
with Host
2
Download ActiveSync
®
4.5 or
higher from
http://www.microsoft.com and
follow the instructions to install
ActiveSync onto the host
computer.
COMMUNICATION
Enter Your PIN
After installing the SIM card activate your mobile service
connection. In most cases, SIM cards are preset with a PIN
(Personal Identity Number), provided by your service provider.
1. Press the Power button to turn on the MC9596-K.
2. Tap Start > Phone.
3. Enter the PIN from your service provider.
4. Tap Enter.
Follow the
on-screen ActiveSync instructions to establish a
connection between the MC9500-K and the host computer.
Alternate left and
right knees
Alternate left and
right hands
1. Press Power button to suspend the MC9500-K.
2. Wait for the red Decode LED to turn on and then turn off.
3. Unhook handstrap.
4. Press the two battery release latches. The battery ejects slightly
from the device.
5. Remove battery from device.
Four Bay Ethernet Cradle
Release Button
For more information visit:
(shown with optional guide cups)
