Motorola MOTOTRBO PORTABLE DP4800e - 4.5 RF Adaptor Assembly

Radio Programming and Tuning RF Adaptor Assembly 4-3
4.5 RF Adaptor Assembly
1. Remove the RF plug.

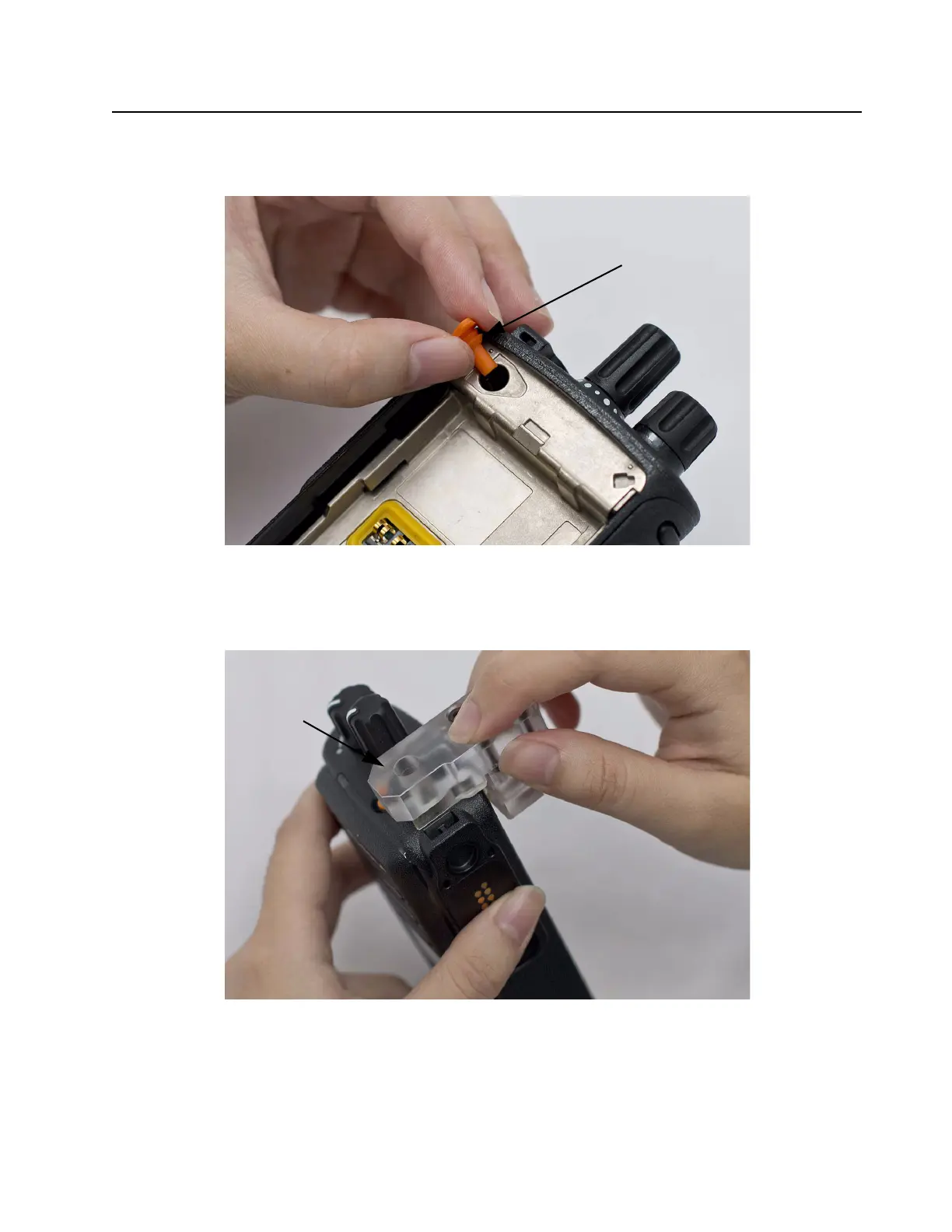

Figure 4-3. RF Plug removal
2. Align RF Adaptor Holder to the antenna opening of the housing. The RF Adaptor Holder
should fit snugly around the outer wall of the antenna opening.
Figure 4-4. RF Adaptor holder
RF Plug
RF Adaptor
