Motorola MOTOTRBO PORTABLE DP4800e - 5.7.4 Chassis Reassembly

5-26 Disassembly/Reassembly Procedures Radio Reassembly - Detailed
5.7.4 Chassis Reassembly

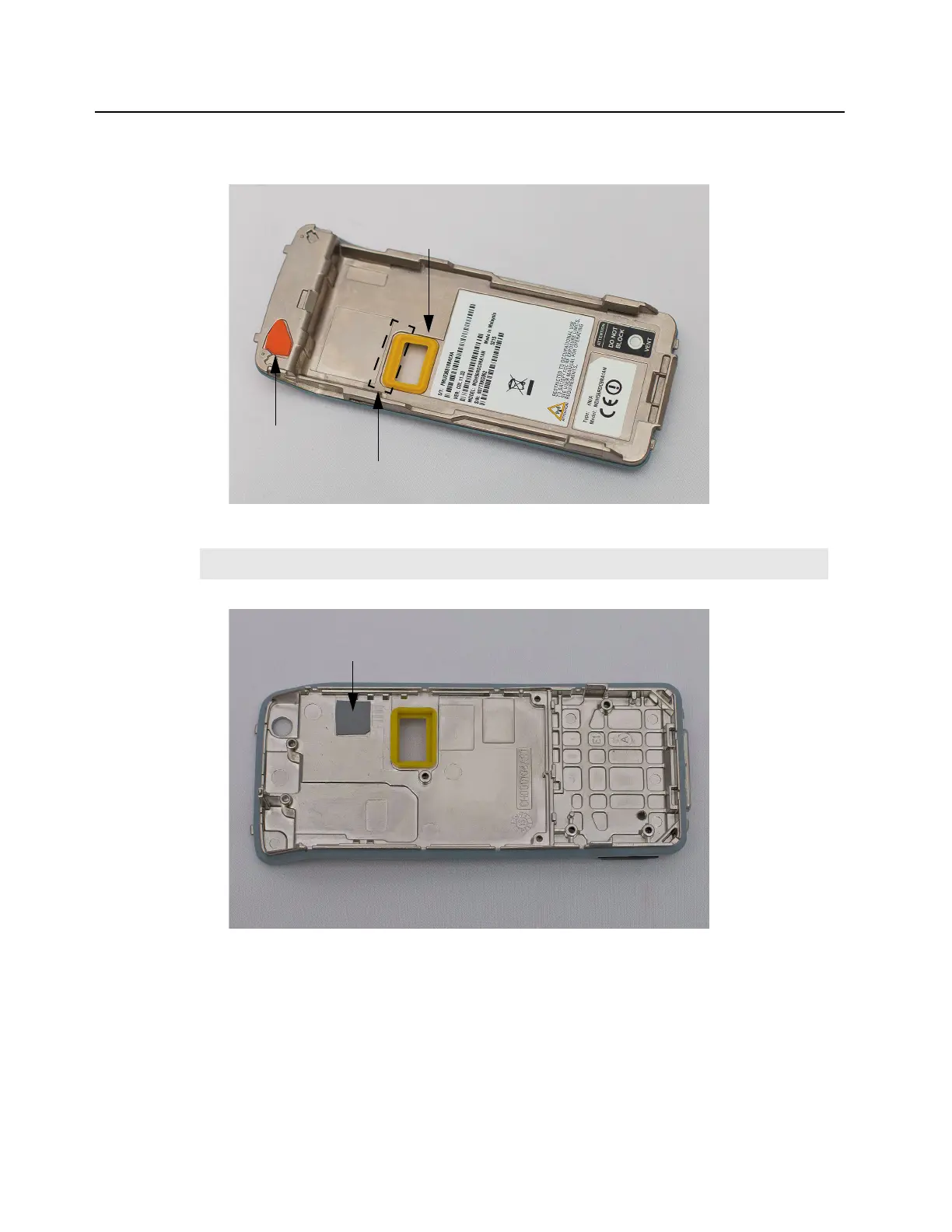

1. Insert or replace the RF rubber plug and battery contact seal on the chassis.
Figure 5-34. Chassis reassembly
2. Paste the thermal pad in the designated location on the underside of the chassis.
Figure 5-35. Thermal Pad
NOTE
Ensure the rubber lip of the battery contact seal rests on top as shown in the Figure 5-34.
Battery
Rubber Lip
Contact
Seal
RF Plug
Thermal Pad
