MAINTENANCE 6 - 9

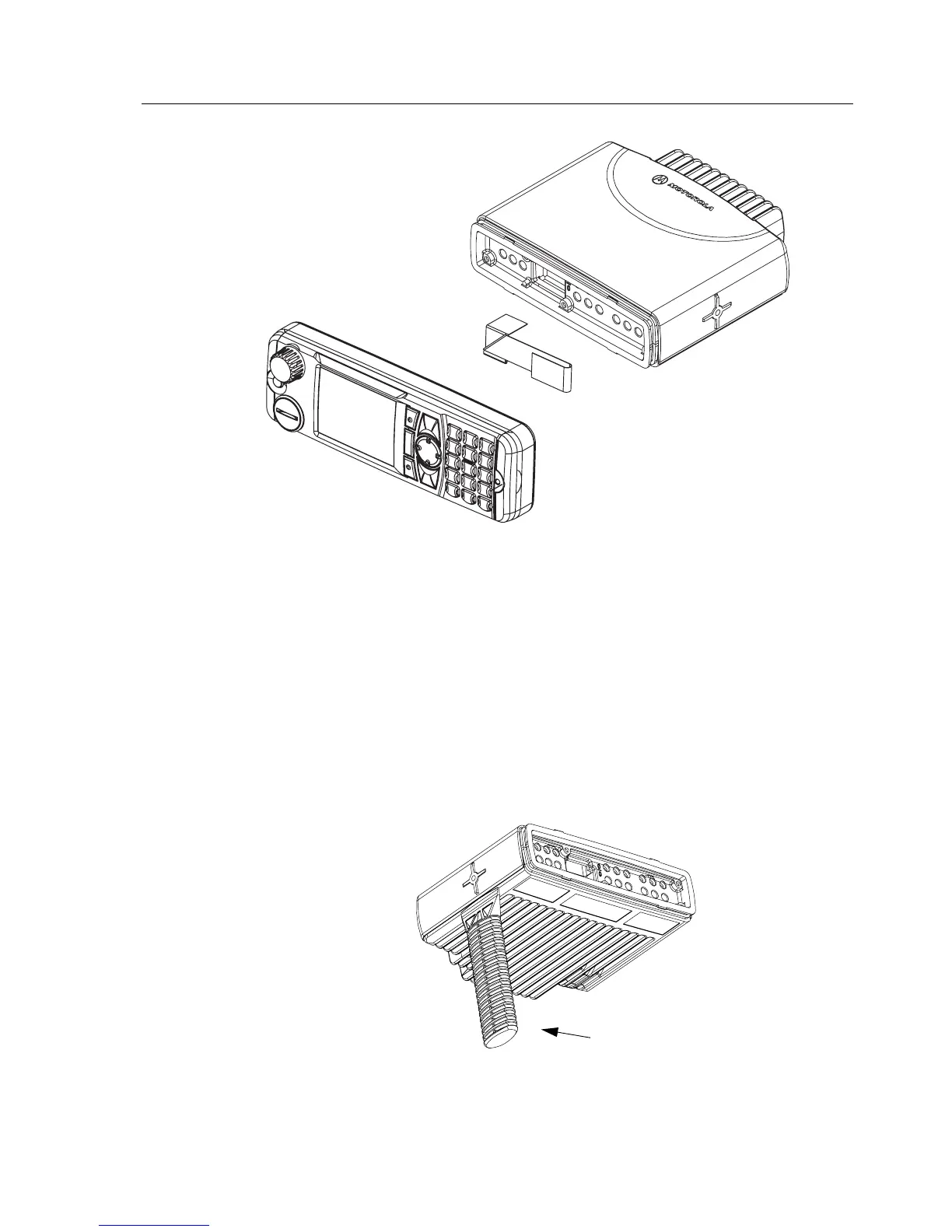

Figure 6-2 Flexible Connection Removal
4. Remove the flexible connection from the socket on the Enhanced Control Head board.
Top Plastic Cover Removal
1. Insert the dismantling tool in the middle of the terminal assembly side groove as shown in
Figure 6-3.
2. Press on the dismantling tool until the snap connectors on the side of the plastic cover release
from the terminal chassis.
3. Lift the plastic cover from the chassis.
Figure 6-3 Top Cover Removal.
Dismantling
ZWG0130211-O
Tool
